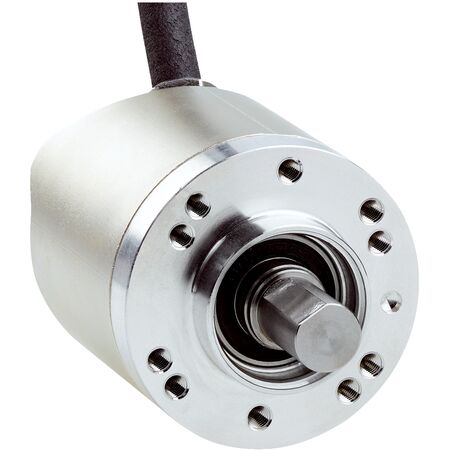

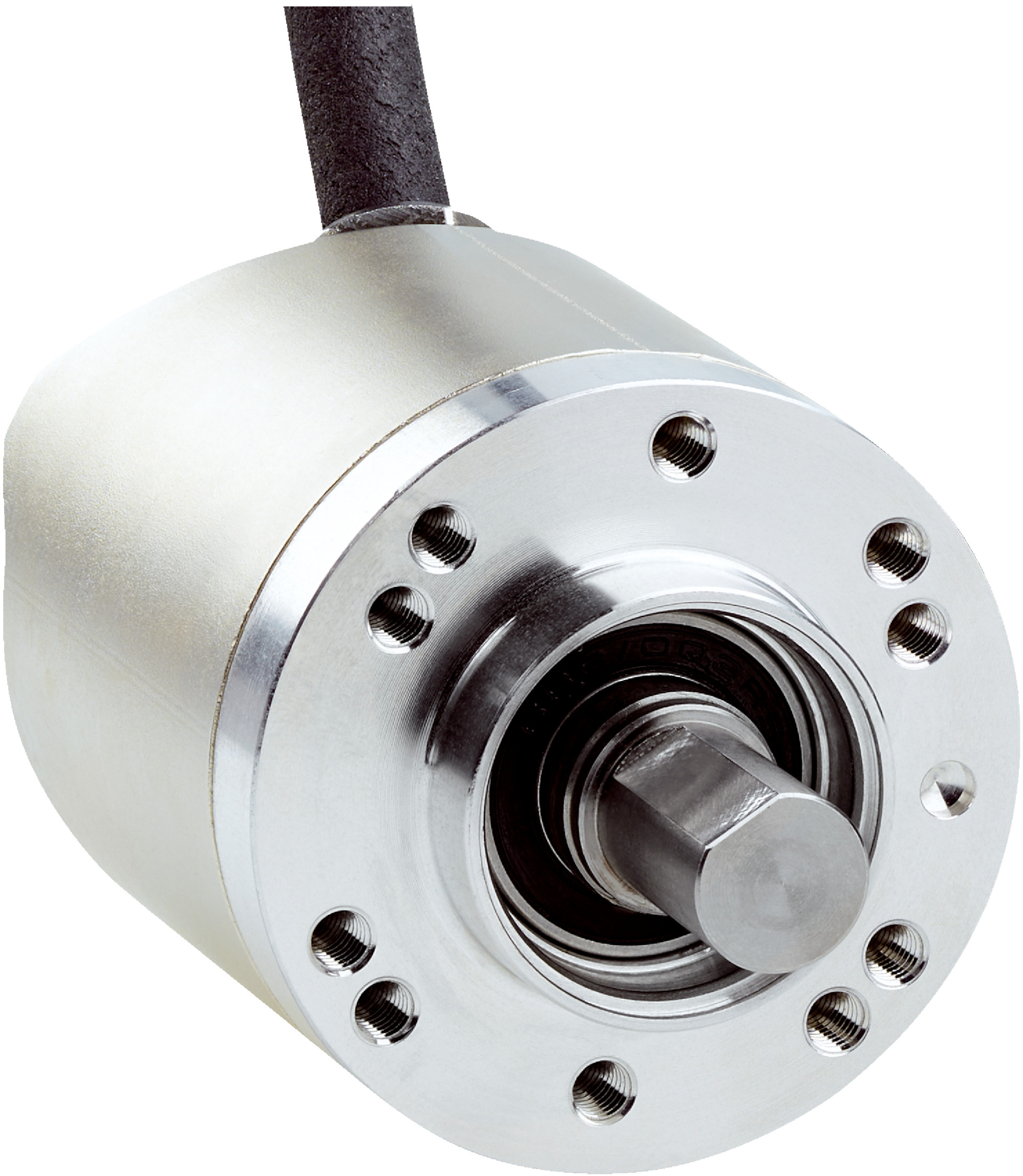

Absolute Rotary Encoder AHM36A-S4AK012x12 | 4096 Steps/Rev | IP66 & IP67 Rated | by SICK
The AHM36A-S4AK012x12 absolute rotary encoder delivers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics. With a robust design featuring an IP66 and IP67 rated enclosure, it ensures reliable performance in harsh environments. Built for safety-critical applications, this encoder operates within a wide temperature range of -40°C to +100°C, providing exceptional reliability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Resolution: 4,096 steps per revolution, 4,096 revolutions (12 bit x 12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray code
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: 8-wire cable, 1.5 m length
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm, length: 12 mm, stainless steel with flat
- Housing material: Zinc, flange: Aluminum
- Operating temperature: -40°C to +100°C
- Enclosure rating: IP66 and IP67
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia: 2.5 gcm²
- Bearing lifetime: 3.6 x 10^8 revolutions
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Robust mechanical design with solid shaft and face mount flange
- IP66 and IP67 rated enclosure for protection against dust and water
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High reliability with MTTFD of 230 years according to EN ISO 13849-1
- Communication via SSI interface with configurable code sequence
- Stainless steel shaft with flat for secure mounting
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder mounting and electrical connections to ensure proper operation and safety compliance.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high resolution rotary encoders
- Machine tools and manufacturing equipment
- Safety-related applications in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36A-S4AK012x12 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
