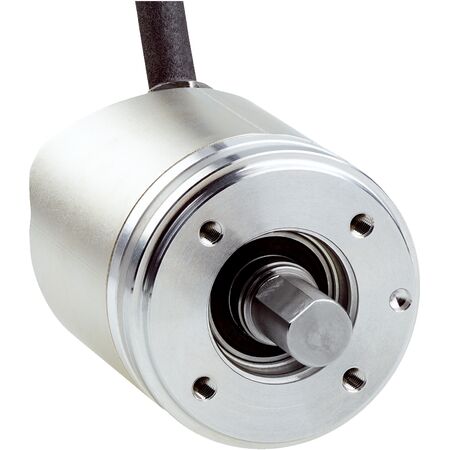

Absolute Rotary Encoder AHM36B-S2AL012x12 | 12 Bit Resolution | IP65 Rated | by SICK
The AHM36B-S2AL012x12 absolute rotary encoder delivers high precision with a 12 bit x 12 bit resolution, making it ideal for industrial automation and robotics applications. With an IP65 rated enclosure, it ensures protection against dust and water, while its robust mechanical design and low power consumption enhance reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Max resolution: 12 bit x 12 bit (4,096 x 4,096 steps)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.25° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 10 mm, length: 12 mm, stainless steel with flat
- Housing material: Zinc, flange: Aluminum
- Cable: PUR, 8-wire, 3 m
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Operating temperature range: -20 °C to +70 °C
- Enclosure rating: IP65
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 12 bit x 12 bit (4,096 x 4,096) steps per revolution and number of revolutions
- Robust mechanical design with solid shaft and servo flange
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -20 °C to +70 °C
- Low power consumption ≤ 1.5 W
- Reverse polarity protection included
- High shock and vibration resistance (100 g shock, 20 g vibration)
- Stainless steel shaft with flat for secure mounting
- Cable connection with 8-wire universal 3 m cable
- Fast initialization time of 100 ms and position forming time of 125 µs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and configuration.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate angular positioning
- Machine tools requiring high resolution feedback
- Conveyor systems and material handling equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36B-S2AL012x12 absolute encoder is available for immediate purchase, ideal for industrial automation and robotics requiring precise position feedback.
