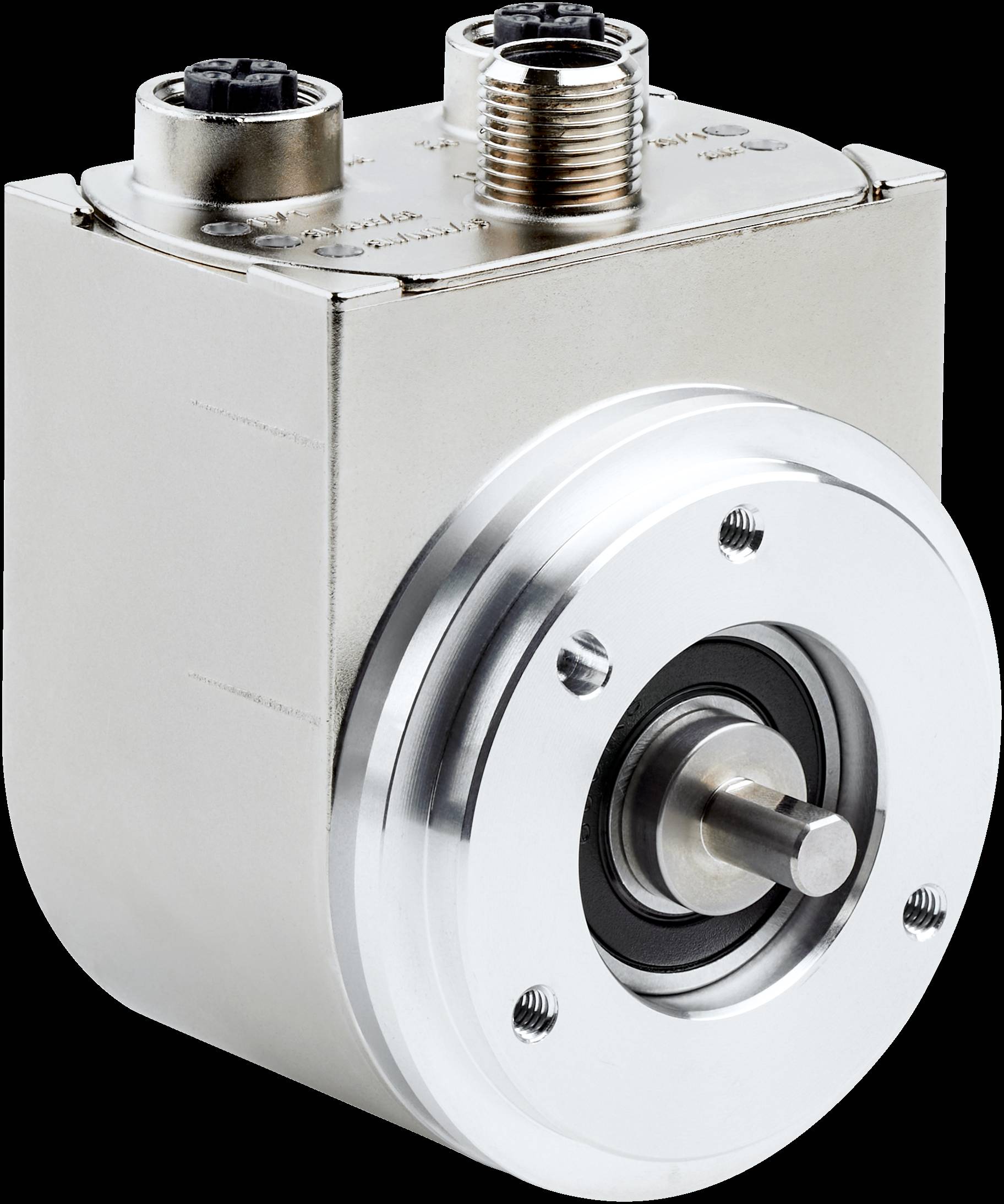

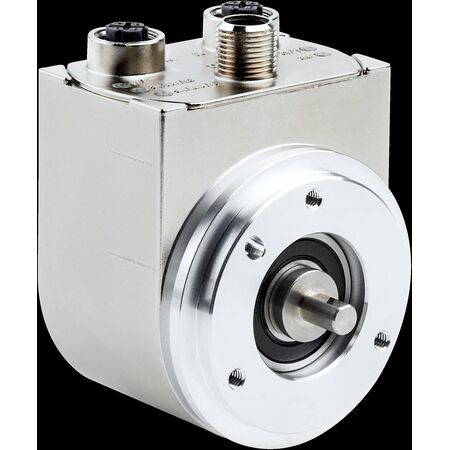

Absolute Rotary Encoder ANS/ANM58 | 18-Bit Optical & 16-Bit Multiturn | PROFINET Interface | by SICK
The ANS/ANM58 absolute rotary encoder is designed for industrial automation, featuring an 18-bit optical singleturn and 16-bit mechanical multiturn for precise movement monitoring. With a low installation depth of just 39 mm and a PROFINET interface, it’s perfect for tight spaces and reliable position feedback in process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder ANS/ANM58 | 18-Bit Optical & 16-Bit Multiturn | PROFINET Interface | by SICK
Brand: SICK
SKU: 1148711
Alternatively Known As: Absolute rotary encoder, PROFINET encoder, multiturn encoder, optical encoder
Technical Specifications
- Multiturn version with 18-bit optical singleturn and 16-bit mechanical multiturn
- Solid shaft with servo flange mechanical design
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Connection types: male and female connectors
- Direction of connection: radial
- Installation depth: 39 mm
- PROFINET interface with Encoder Profile version 4.2 supporting IRT function
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.3 kg
Key Features
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm
- PROFINET interface with Encoder Profile V 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
- Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with PROFINET systems and encoder integration to ensure proper configuration and safety.
Applications
- Industrial automation for precise movement monitoring
- Process control systems requiring reliable position feedback
- Integration in tight installation spaces due to low installation depth
- Condition-based system maintenance with diagnostic data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables condition-based maintenance reducing unnecessary replacements and waste
- Supports efficient process control improving energy usage in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ANS/ANM58 absolute encoder is available for immediate purchase, ideal for industrial automation and motion control applications requiring high precision and reliable data.
