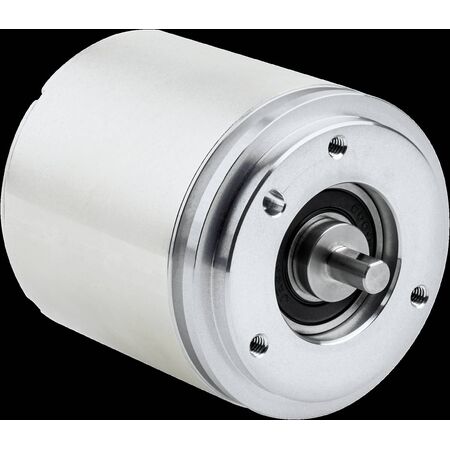

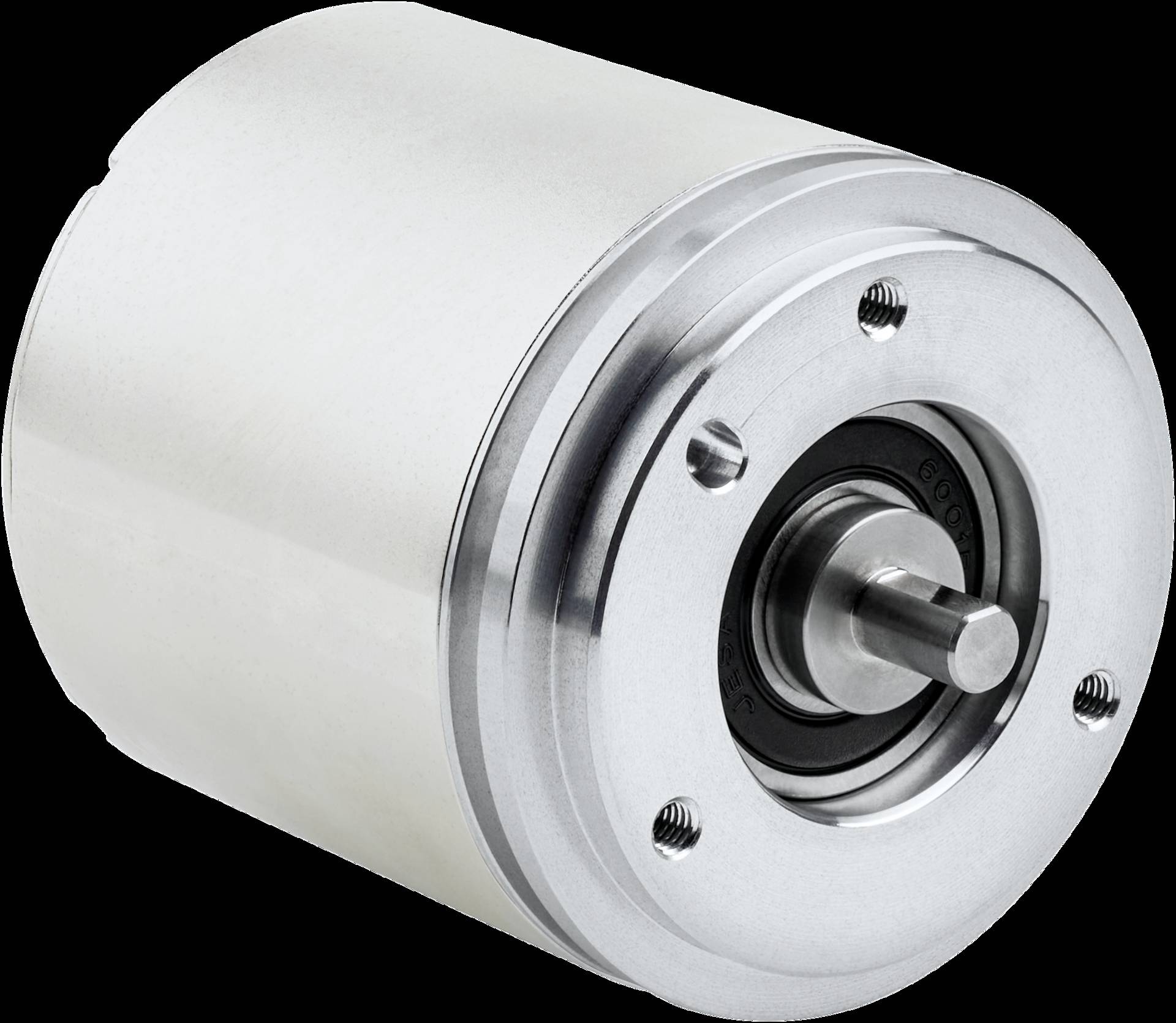

Absolute Rotary Encoder ANS/ANM58 | 18-Bit Optical | PROFINET Interface | Low Installation Depth | by SICK

BRAND: SICK
SKU: 1148713
$2,117.70 List price: $2,661.70
+
The ANS/ANM58 absolute rotary encoder is designed for industrial automation, featuring an 18-bit optical singleturn measuring system and a PROFINET interface for seamless integration. With a low installation depth of just 39 mm, it's perfect for applications requiring precise movement monitoring and accurate position feedback, making it ideal for machinery in tight spaces.

Product Name/Title: Absolute Rotary Encoder ANS/ANM58 | 18-Bit Optical | PROFINET Interface | Low Installation Depth | by SICK

Brand: SICK

SKU: 1148713

Alternatively Known As: Absolute rotary encoder, PROFINET encoder, multiturn encoder, optical encoder

Technical Specifications
  • Singleturn version
  • Solid shaft with servo flange mechanical design
  • Shaft diameter: 6 mm with flat
  • Shaft length: 10 mm
  • Connection types: male and female connectors
  • Connection direction: axial
  • Installation depth: 39 mm
  • 18-bit optical singleturn measuring system
  • 16-bit mechanical multiturn stage
  • PROFINET interface with Encoder Profile version 4.2
  • Supports IRT (Isochronous Real Time) function
  • Dimensions (H x L x W): 58mm x 39mm x 58mm
  • Weight: 0.3 kg
Key Features
  • Radial and axial type with shaft and flange variants
  • Low installation depth of only 39 mm
  • PROFINET interface with Encoder Profile version 4.2
  • Parameterization via TIA Portal or SICK Engineering Tool
  • Configuration and visualization of numerous diagnostic data
  • Precise 18-bit optical singleturn measuring system
  • Mechanical 16-bit multiturn stage
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with PROFINET systems and encoder integration to ensure proper configuration and safety.
Applications
  • Industrial automation for precise movement monitoring
  • Process control systems requiring accurate position feedback
  • Integration in machinery with tight installation spaces
  • Condition-based system maintenance through diagnostic data
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables condition-based maintenance reducing unnecessary replacements and waste
  • Supports efficient process control improving energy usage in industrial applications
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ANS/ANM58 absolute encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
