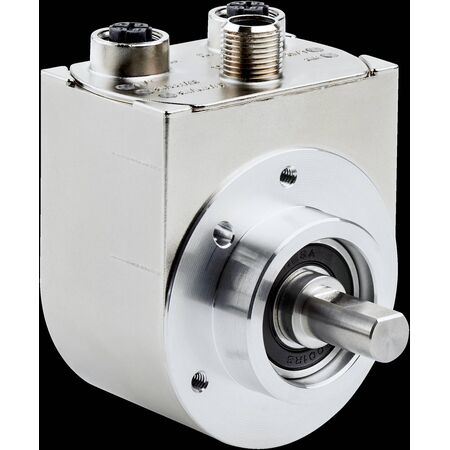

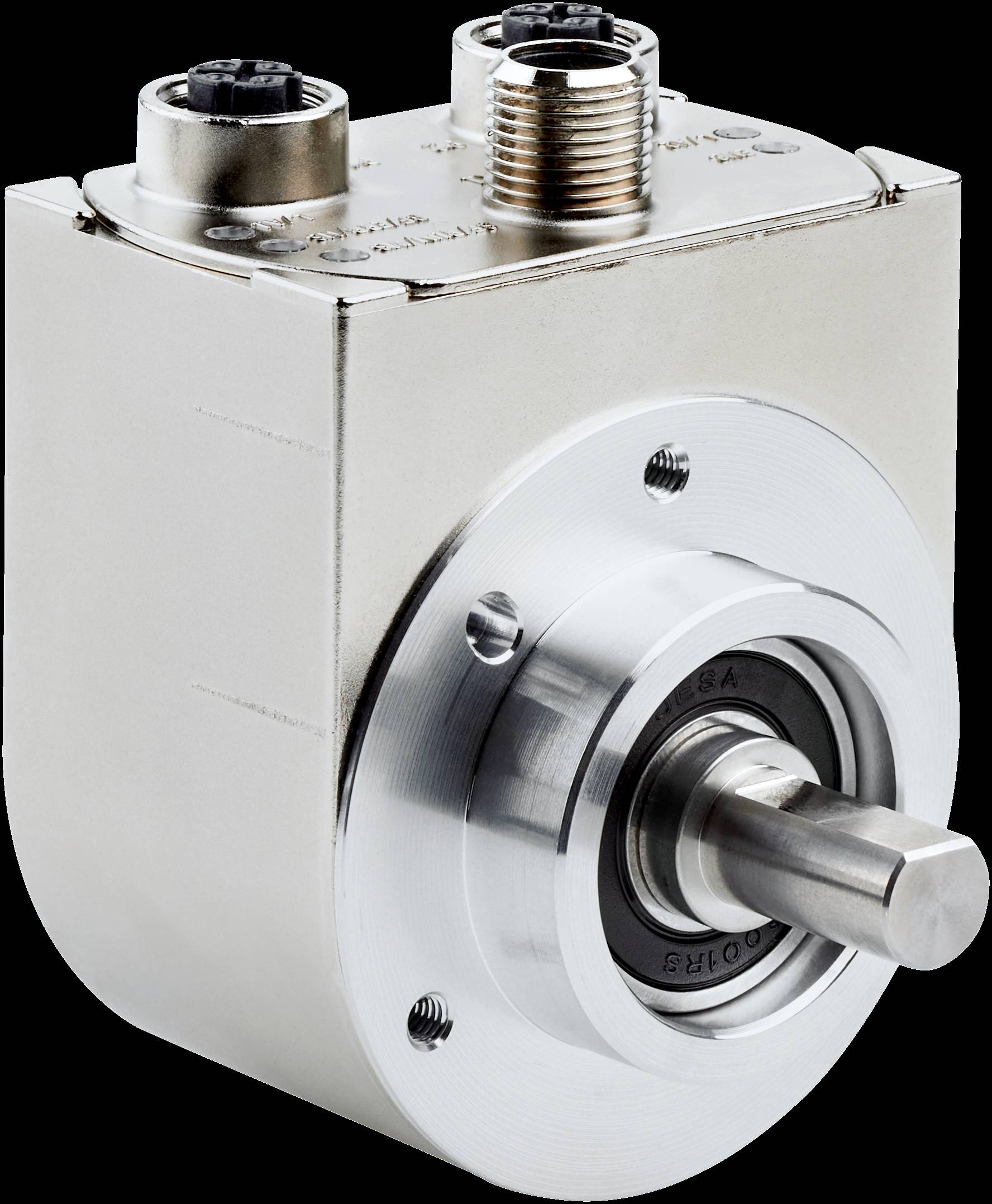

Product Name/Title: Absolute Rotary Encoder ANS/ANM58 | PROFINET Interface | 18-Bit Optical Measuring | Low Installation Depth | by SICK
Brand: SICK
SKU: 1149416
Alternatively Known As: Absolute rotary encoder, PROFINET encoder, multiturn encoder, optical encoder
- Singleturn version
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Connection: Male and female connectors
- Direction of connection: Radial
- Installation depth: 39 mm
- Optical measuring system: 18-bit singleturn
- Mechanical multiturn stage: 16-bit
- Interface: PROFINET with Encoder Profile V 4.2
- Supports IRT (Isochronous Real Time) function
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.3 kg
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm
- PROFINET interface with Encoder Profile V 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data via SICK Engineering Tool
- Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage
- Installation should be performed by qualified professionals familiar with PROFINET systems and electrical wiring standards to ensure optimal performance and safety.
- Industrial automation for precise movement monitoring
- Process control systems requiring accurate position feedback
- Integration in tight installation spaces due to low installation depth
- Condition-based system maintenance with diagnostic data
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Enables condition-based maintenance reducing unnecessary replacements and waste
- Supports efficient process control improving energy usage in industrial applications
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
The SICK ANS/ANM58 absolute encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
