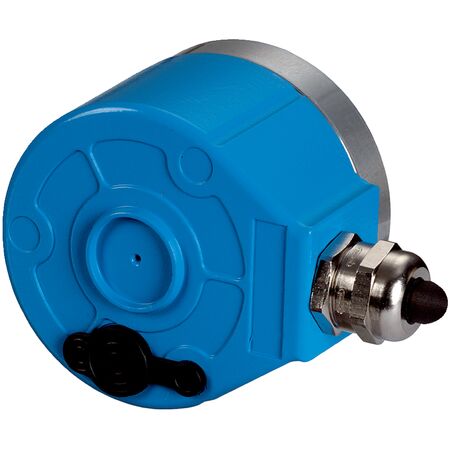

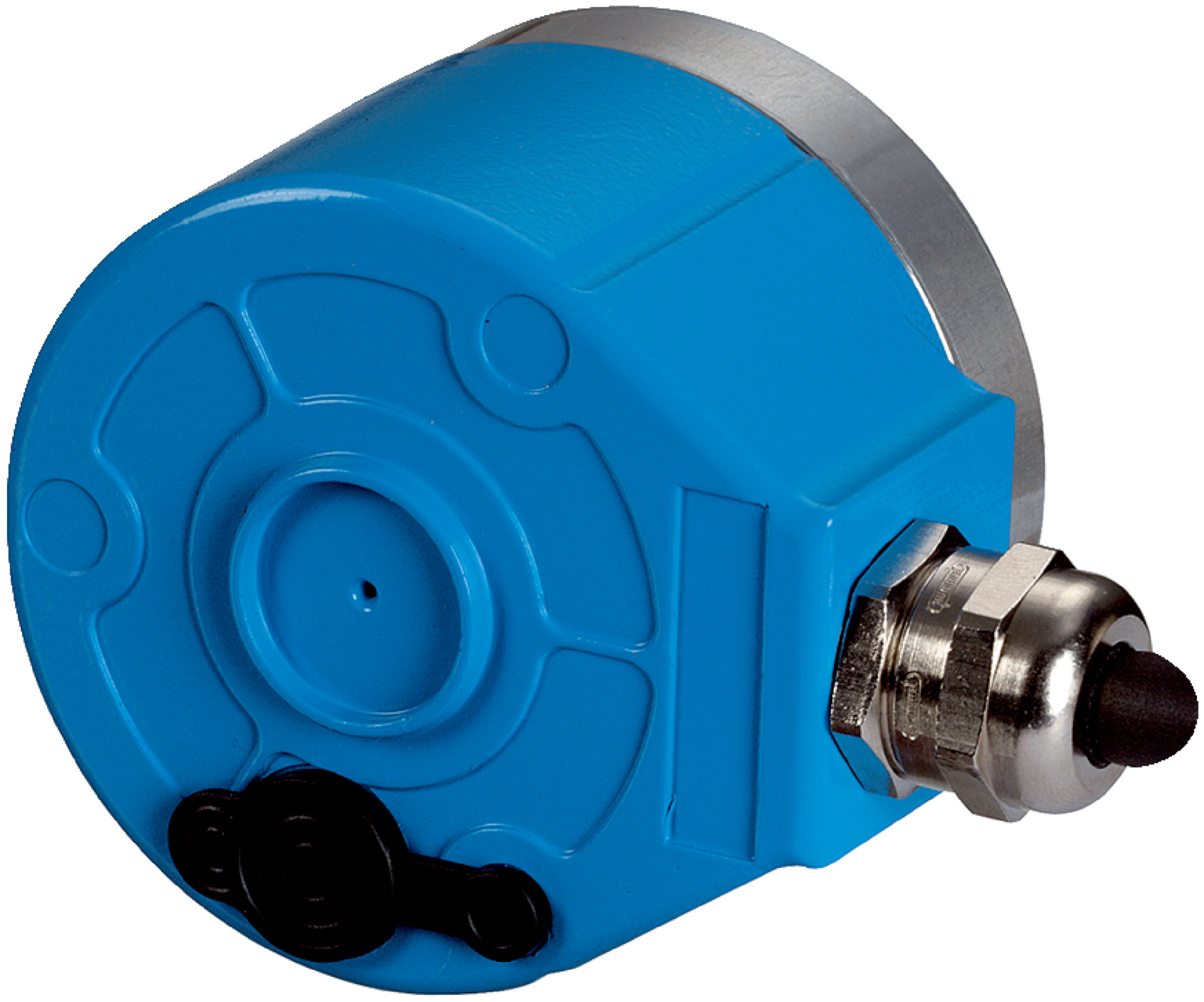

Product Name/Title: Absolute Rotary Encoder ARS60 | 1024 Steps/Rev | IP66 Enclosure | Blind Hollow Shaft Design | by SICK
Brand: SICK
SKU: 1031406
Alternatively Known As: Absolute Rotary Encoder ARS60, SSI Rotary Encoder, SICK ARS60 Encoder, Blind Hollow Shaft Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 1,024 (10 bit)
- Measuring step: 360° / number of steps
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Code sequence parameter adjustable: CW increasing when viewing clockwise rotating shaft
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Cable, 11-wire, radial, 3 m
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Actuation of set button: ≥ 100 ms
- Mechanical design: Blind hollow shaft
- Shaft diameter: 15 mm
- Shaft characteristics: Front clamp
- Housing material: Aluminum die cast
- Start up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (cable)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution (10 bit)
- Robust aluminum die cast housing with IP66 enclosure rating
- Blind hollow shaft design with 15 mm shaft diameter and front clamp
- SSI communication interface with Gray code output
- High repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
- Low operating torque of typically 0.4 Ncm
- Long bearing lifetime rated at 3.6 x 10^9 revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoders and electrical safety standards to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation for precise angular position measurement
- Robotics for accurate shaft position feedback
- Machine tools requiring high-resolution rotary encoding
- Safety-related applications requiring reliable position sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption with typical operating current of 60 mA
- Robust construction ensures long service life under harsh conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-AAL01024 Absolute Rotary Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise angular position feedback.
