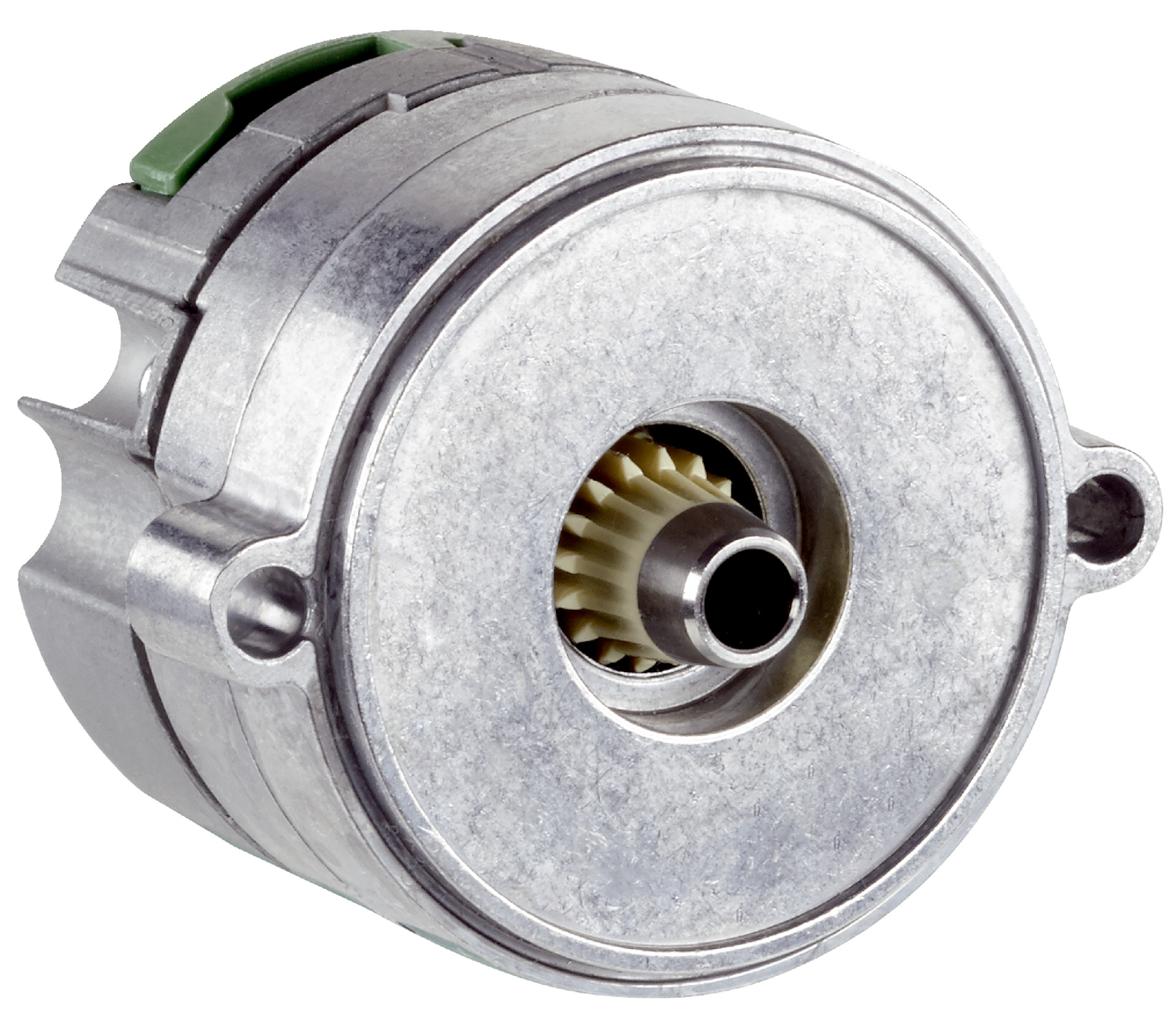

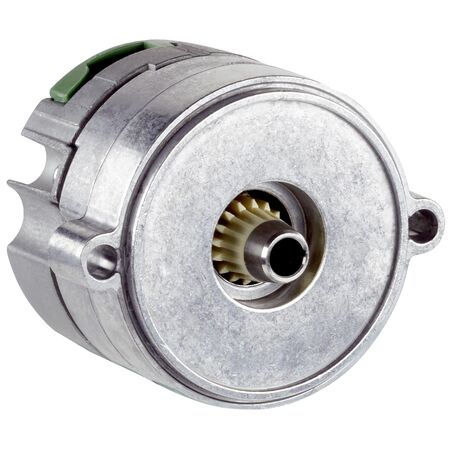

Absolute Rotary Encoder EEM37-2KF0B017A | SIL 2 Safety Compliance | 17 Bit Resolution | HIPERFACE DSL Interface | by SICK
The EEM37-2KF0B017A absolute rotary encoder delivers safe singleturn position measurement with SIL 2 safety integrity and high resolution of 17 bits per revolution. Designed for industrial automation and safety-critical applications, it operates in extreme temperatures from -40 °C to +115 °C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL3 (EN 62061)
- Category: 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Resolution per revolution: 17 bit
- System accuracy: ±240″ nominal position at 25 °C, filter setting 21 kHz
- Signal noise (σ): ±20″ nominal position at 25 °C, filter setting 21 kHz
- Number of absolute ascertainable revolutions: 4,096
- Available memory area: 8,192 Byte
- Measurement step per revolution: 131,072
- Communication interface: HIPERFACE DSL®
- Supply voltage: 7 V to 12 V
- Current consumption: ≤ 150 mA
- Connection type: Male connector, 4-pin
- Operating speed: ≤ 12,000 min⁻¹
- Operating temperature range: –40 °C to +115 °C
- Enclosure rating: IP30
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Safe singleturn absolute position measurement
- Safety integrity level SIL 2 (IEC 61508), SILCL3 (EN 62061)
- Category 3 (EN ISO 13849) safety compliance
- High resolution 17 bit per revolution
- System accuracy ±240″ nominal position at 25 °C
- Operating temperature range from –40 °C to +115 °C
- Communication via HIPERFACE DSL® interface
- Operating speed up to 12,000 min⁻¹
- IP30 enclosure rating with cover closed and connector attached
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related electrical equipment and compliant with relevant standards.
Applications
- Industrial automation and control systems
- Safety-related position measurement
- High-precision rotary position sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption (≤ 150 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK EEM37-2KF0B017A absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical position sensing applications.
