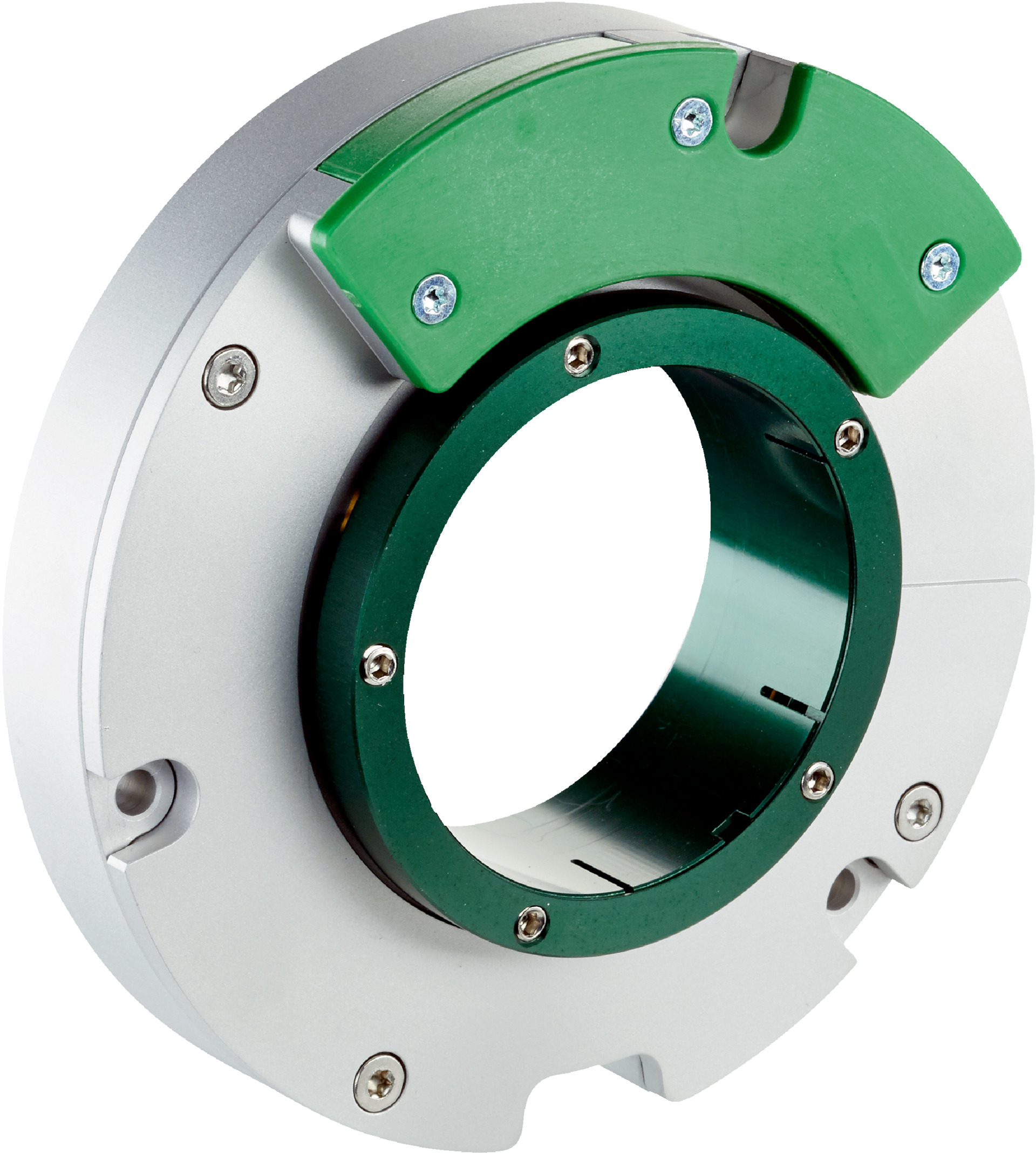

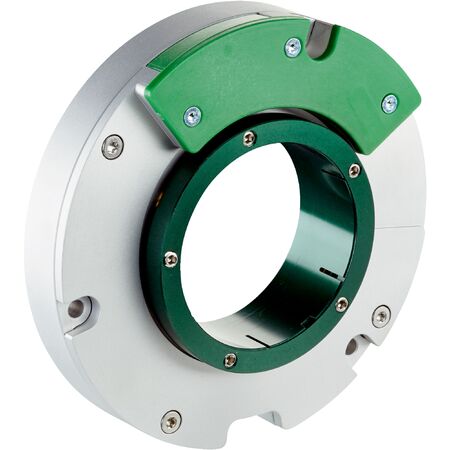

Absolute Rotary Encoder SES90-HN050AK22 | 2048 Steps | HIPERFACE Interface | High Accuracy ±117″ | by SICK
The Absolute Rotary Encoder SES90-HN050AK22 is designed for precise position measurement in industrial automation and robotics. With 2048 total steps and a high system accuracy of ±117″, it ensures reliable feedback for applications like machine tools and conveyor systems. Its robust operating temperature range from –30 °C to +115 °C and low current consumption make it an ideal choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sine/cosine periods per revolution: 64
- Number of absolute ascertainable revolutions: 1
- Total number of steps: 2048
- Measuring step: 5″ with 12-bit interpolation
- Integral non-linearity: ±72″
- Differential non-linearity: ±45″
- Latency: 25 µs
- Available memory area: 2048 Byte
- System accuracy: ±117″
- Type of code for absolute value: Binary
- Code sequence: Rising for clockwise shaft rotation
- Communication interface: HIPERFACE®
- Connection type: Male connector, 8-pin
- Supply voltage: 7 V DC to 12 V DC
- Recommended supply voltage: 11 V DC
- Current consumption: ≤150 mA
- Shaft version: Through hollow shaft
- Moment of inertia of rotor: 280 gcm²
- Operating speed: 6000 min⁻¹
- Angular acceleration: ≤50,000 rad/s²
- Permissible radial shaft movement: ±0.15 mm
- Permissible axial shaft movement: ±0.4 mm
- Permissible static movement: ±0.3 mm
- Permissible dynamic movement: ±0.1 mm
- Operating temperature range: –30 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 85%, condensation not permitted
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-4 (Class A)
- Enclosure rating: IP40 with connector inserted
- Dimensions (H x L x W): 90mm x 50mm x 90mm
- Weight: 0.21 kg
Key Features
- Absolute encoder with 2048 total steps and 1 absolute ascertainable revolution
- High system accuracy of ±117″ with integral non-linearity ±72″
- HIPERFACE® communication interface with binary code output
- Operating speed up to 6000 min⁻¹ with reliable absolute position output
- Robust operating temperature range from –30 °C to +115 °C
- IP40 enclosure rating with mating connector inserted
- Low current consumption ≤150 mA
- Male 8-pin connector for electrical connection
