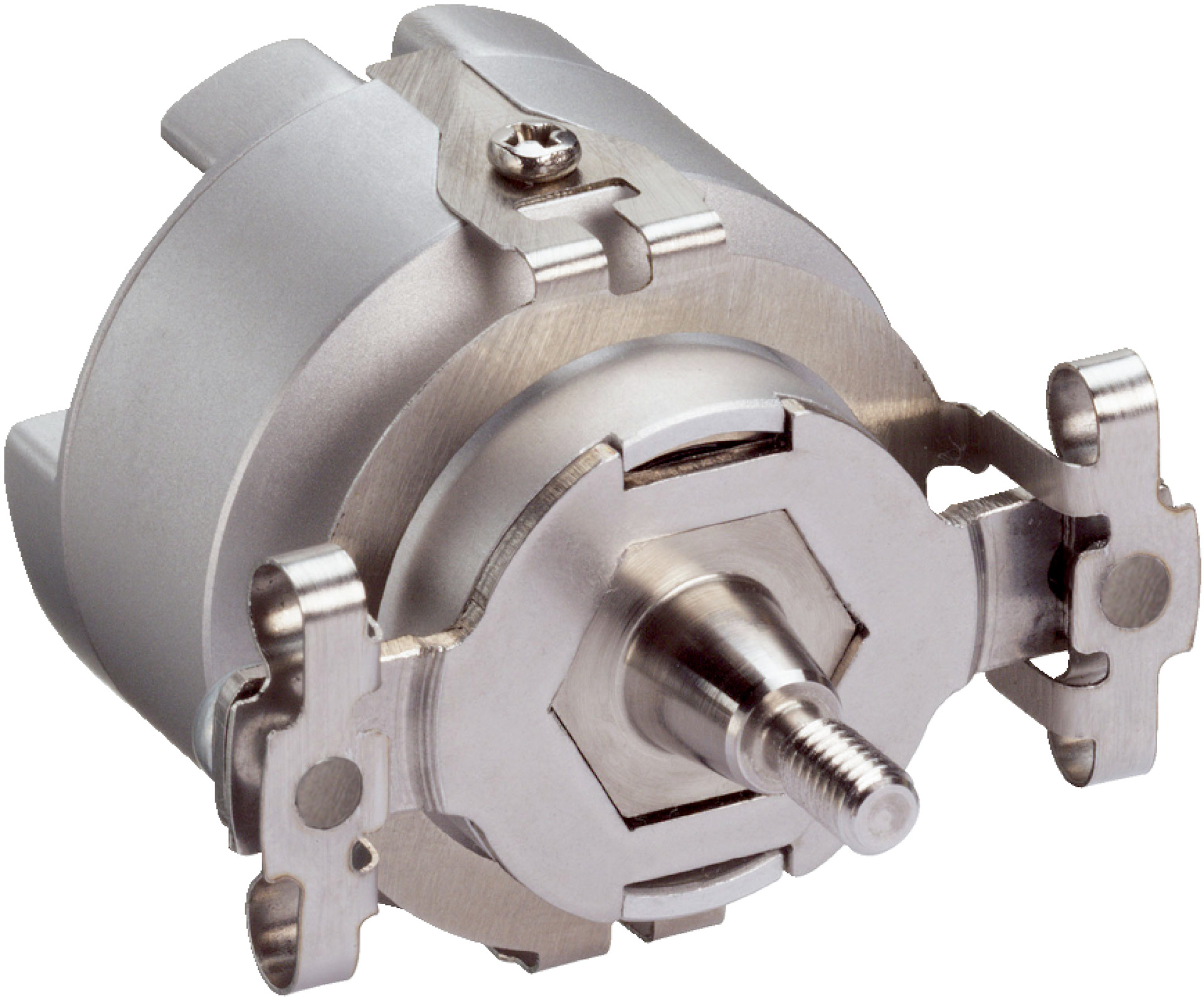

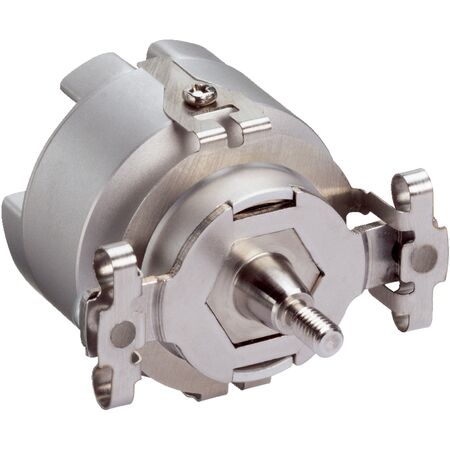

Absolute Rotary Encoder SKM36-HFA0-K02 | 16,777,216 Steps | HIPERFACE Interface | High Accuracy | by SICK
The SKM36-HFA0-K02 absolute rotary encoder delivers exceptional precision with 16,777,216 total steps and a HIPERFACE communication interface. Designed for industrial automation and robotics, it operates at speeds up to 9,000 min⁻¹ while ensuring high system accuracy of ±120″. Its robust IP50-rated enclosure withstands shocks and vibrations, making it ideal for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SKM36-HFA0-K02 | 16,777,216 Steps | HIPERFACE Interface | High Accuracy | by SICK
Brand: SICK
SKU: 1034094
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Sine/cosine periods per revolution: 128
- Number of absolute ascertainable revolutions: 4,096
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±80″
- Differential non-linearity: ±40″
- Operating speed: ≤ 9,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±120″
- Type of code: Binary
- Communication interface: HIPERFACE
- Connection type: Male connector, 8-pin, radial
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤ 65 kHz
- Shaft version: Tapered shaft
- Flange type: Spring mounting plate, stator coupling
- Moment of inertia of rotor: 4.5 gcm²
- Angular acceleration: ≤ 500,000 rad/s²
- Operating torque: 0.2 Ncm
- Start up torque: +0.3 Ncm
- Permissible static movement: ±0.1 mm radial, -0.4 mm to +0.2 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: –20 °C to +110 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 50 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 with mating plug inserted
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Absolute encoder with 16,777,216 total steps for high resolution
- Binary code output with HIPERFACE communication interface
- Operating speed up to 9,000 min⁻¹ with reliable absolute position
- Tapered shaft with spring mounting plate for stator coupling
- High system accuracy of ±120″ and integral non-linearity ±80″
- Robust design with IP50 enclosure rating and resistance to shocks and vibrations
- Operating temperature range from –20 °C to +110 °C
- Low operating torque of 0.2 Ncm and start-up torque +0.3 Ncm
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high accuracy rotary position feedback
- Machine tools and manufacturing equipment
- Safety-related control systems in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption of 60 mA minimizes energy use
- Robust design reduces failure rates and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SKM36-HFA0-K02 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
