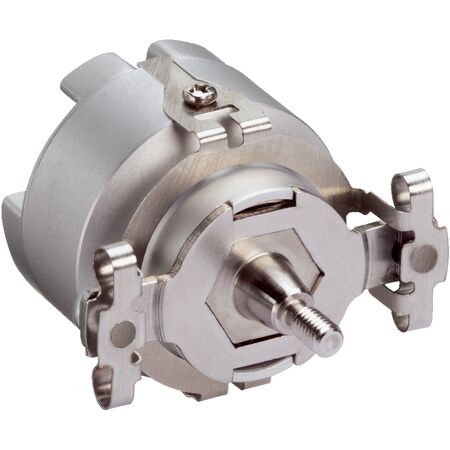

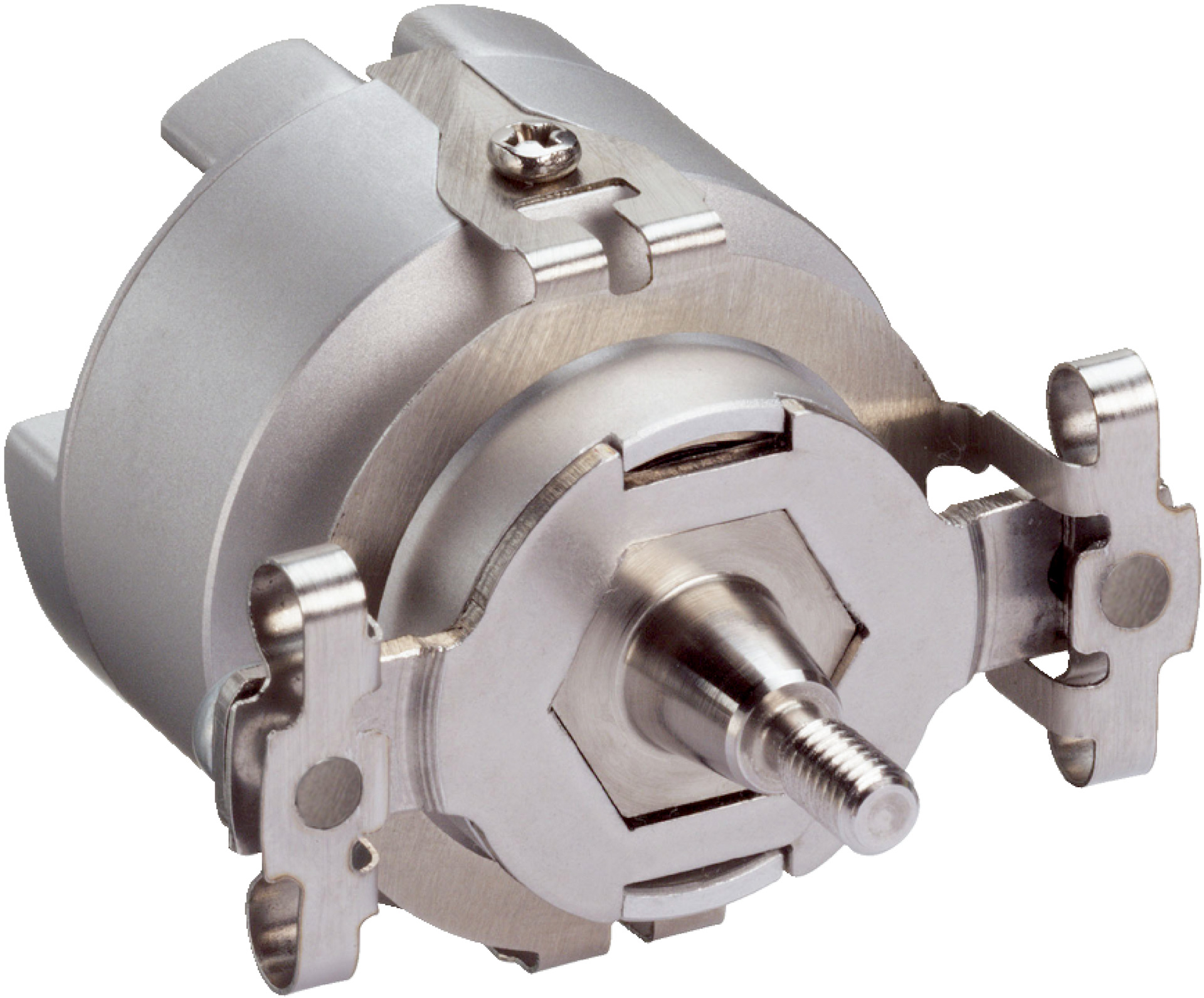

Product Name/Title: Absolute Rotary Encoder SKM36-HFA0-S05 | 16,777,216 Steps | 9,000 min⁻¹ Speed | IP50 Rated | by SICK
Brand: SICK
SKU: 1037138
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, high resolution encoder, SICK encoder SKM36
Technical Specifications
- Resolution: 16,777,216 steps total
- Sine/cosine periods per revolution: 128
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±80″
- Differential non-linearity: ±40″
- System accuracy: ±120″
- Operating speed: ≤ 9,000 min⁻¹
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤ 65 kHz
- Connection: Male 8-pin radial connector
- Shaft: Tapered shaft
- Moment of inertia: 4.5 gcm²
- Operating torque: 0.2 Ncm
- Start up torque: +0.3 Ncm
- Permissible static movement: ±0.1 mm radial, -0.4 mm to +0.2 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature: -20 °C to +110 °C
- Storage temperature: -40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 with mating plug inserted
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Absolute encoder with 16,777,216 total steps for high resolution
- Sine/cosine signals with 128 periods per revolution
- Operating speed up to 9,000 min⁻¹
- Binary code output with HIPERFACE® communication interface
- Tapered shaft with spring mounting plate stator coupling
- Operating temperature range from -20 °C to +110 °C
- IP50 enclosure rating with mating plug inserted
- Long life ball bearings rated for 3.6 x 10⁹ revolutions
- Low operating torque of 0.2 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high accuracy rotary encoders
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK SKM36-HFA0-S05 absolute encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
