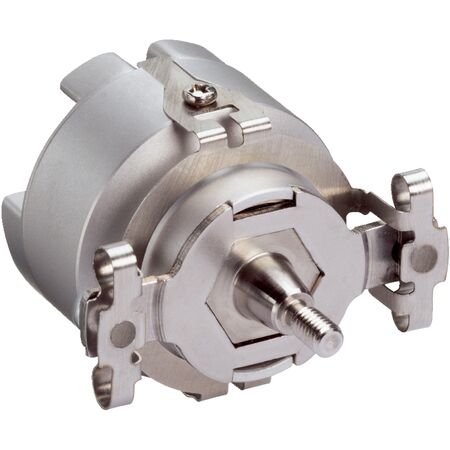

Absolute Rotary Encoder SKM36-HFA0-S17 | 4,096 Absolute Revolutions | HIPERFACE Communication | IP50 Enclosure | by SICK
The SKM36-HFA0-S17 absolute rotary encoder delivers high precision with 4,096 absolute revolutions and a HIPERFACE communication interface. Designed for industrial automation and robotics, it operates at speeds up to 9,000 min⁻¹, ensuring reliable position measurement. With an operating temperature range of -20 °C to +110 °C and an IP50 enclosure rating, this encoder is built for durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Firmware version: SKS_M.V11 23.01.24
- MTTFD: 210 years (EN ISO 13849)
- Sine/cosine periods per revolution: 128
- Number of absolute revolutions: 4,096
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±80″
- Differential non-linearity: ±40″
- System accuracy: ±120″
- Communication interface: HIPERFACE®
- Connection type: Male connector, 8-pin, radial
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤ 65 kHz
- Shaft version: Tapered shaft
- Flange type: Spring mounting plate, stator coupling
- Operating speed: ≤ 9,000 min⁻¹
- Angular acceleration: ≤ 500,000 rad/s²
- Operating torque: 0.2 Ncm
- Start up torque: +0.3 Ncm
- Permissible static movement: ±0.1 mm radial, -0.4 mm to +0.2 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: -20 °C to +110 °C
- Storage temperature range: -40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 with mating plug inserted
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.1 kg
Key Features
- Firmware version SKS_M.V11 with delayed command time of 1.6 ms
- High resolution with 16,777,216 total steps and 4,096 absolute revolutions
- Operating speed up to 9,000 min⁻¹ with reliable absolute position output
- Binary code output with HIPERFACE® communication interface
- Tapered shaft with spring mounting plate stator coupling
- Operating temperature range from -20 °C to +110 °C
- IP50 enclosure rating with mating plug inserted
- Low operating torque of 0.2 Ncm and start-up torque of +0.3 Ncm
- Long ball bearing life of 3.6 x 10⁹ revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with encoder mounting and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high accuracy rotary encoders
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High reliability reduces downtime and waste from replacements
- Long operational life minimizes electronic waste
- Low power consumption with 60 mA current draw
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SKM36-HFA0-S17 absolute encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
