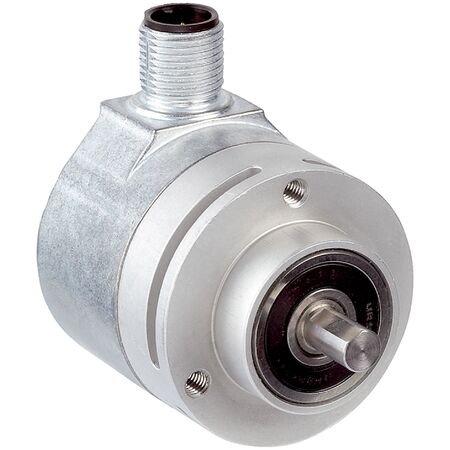

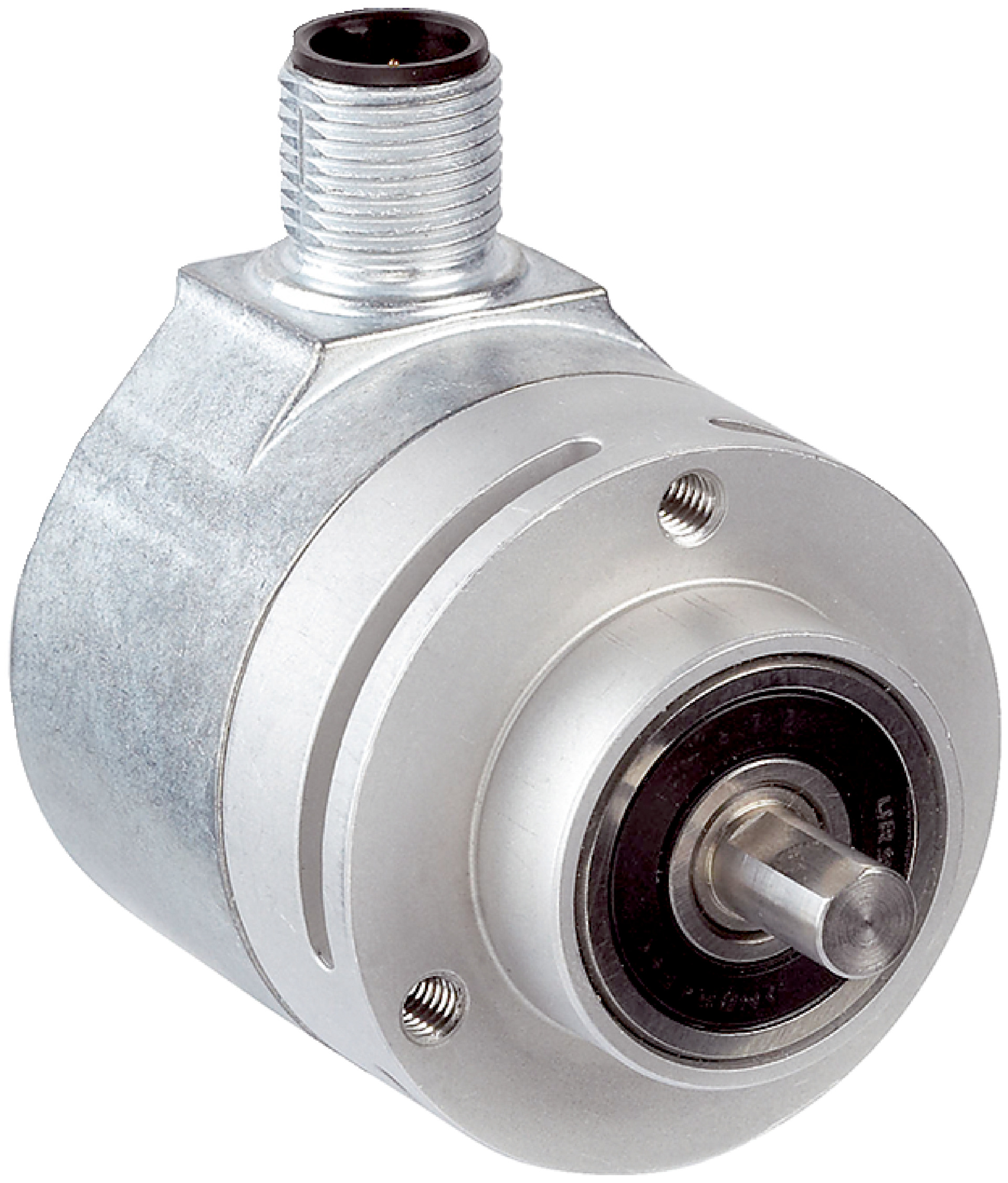

Product Name/Title: Absolute Rotary Encoder SKM36-HVV0-K02 | 16,777,216 Steps | IP50 Enclosure | by SICK
Brand: SICK
SKU: 1035602
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK encoder SKM36, rotary position sensor
Technical Specifications
- MTTFD: 205 years (EN ISO 13849)
- Sine/cosine periods per revolution: 128
- Number of absolute ascertainable revolutions: 4,096
- Total number of steps: 16,777,216
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±120″
- Operating speed: ≤6,000 min⁻¹ for reliable absolute position, max 9,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±120″
- Code type: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE
- Connection type: 8-wire cable, 1.5 m
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤65 kHz
- Shaft version: Solid shaft
- Flange type: Servo-/face mount flange
- Moment of inertia of rotor: 6 gcm²
- Angular acceleration: ≤500,000 rad/s²
- Operating torque: 0.6 Ncm
- Start up torque: +0.9 Ncm
- Permissible shaft loading: 10 N radial, 5 N axial
- Life of ball bearings: 2.0 x 10^9 revolutions
- Operating temperature range: -20°C to +100°C
- Storage temperature range: -40°C to +125°C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 with mating plug inserted
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Absolute encoder with binary code output
- High resolution with 16,777,216 total steps
- Operating speed up to 9,000 min⁻¹
- Solid shaft with servo/face mount flange
- Robust design with IP50 enclosure rating
- Operating temperature range from -20°C to +100°C
- Low operating torque of 0.6 Ncm
- High mean time to dangerous failure (MTTFD) of 205 years
- Communication via HIPERFACE interface
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration of the encoder within the control system.
Applications
- Industrial automation for precise position measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
- Factory automation requiring high accuracy encoders
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption of 60 mA enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
