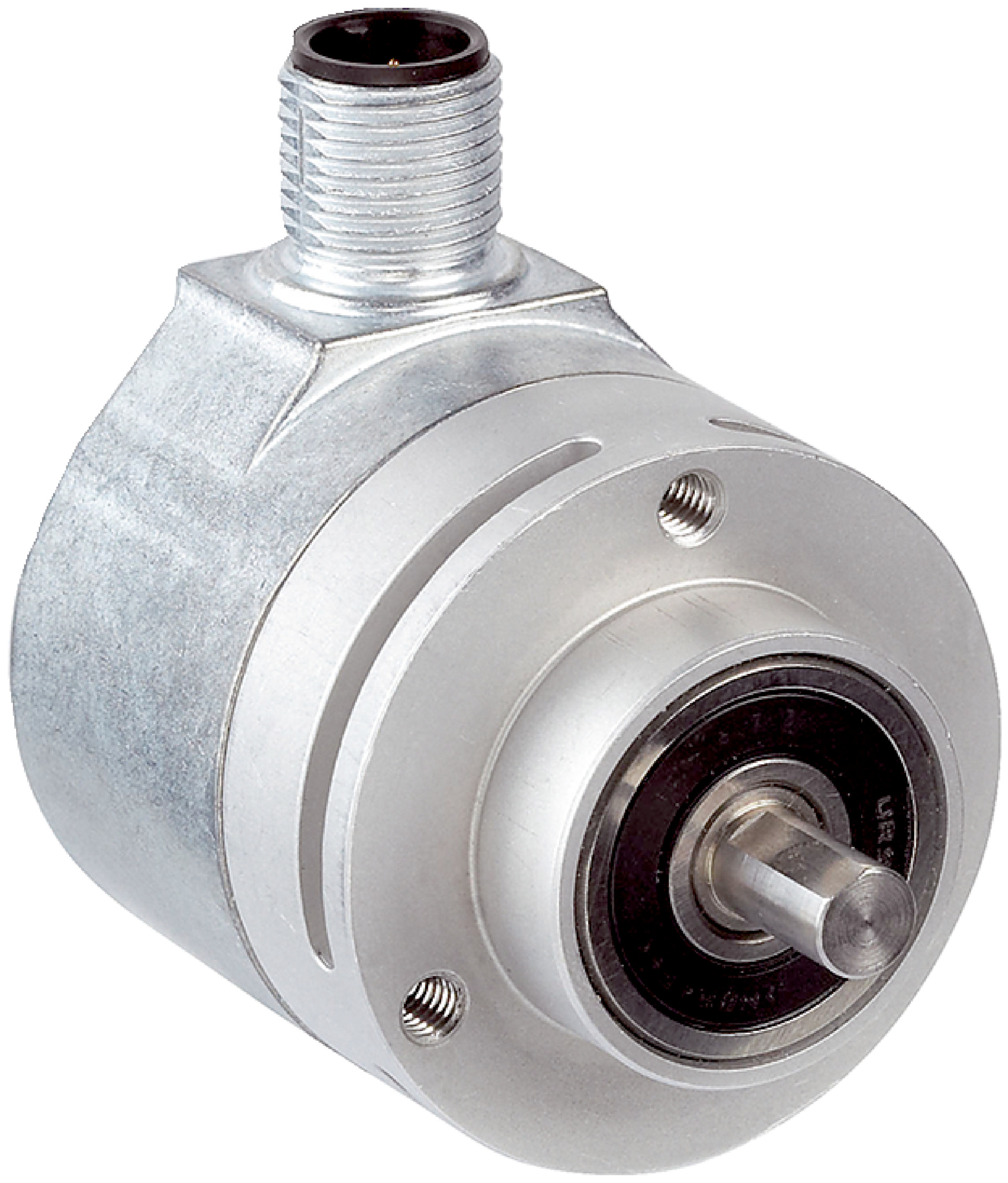

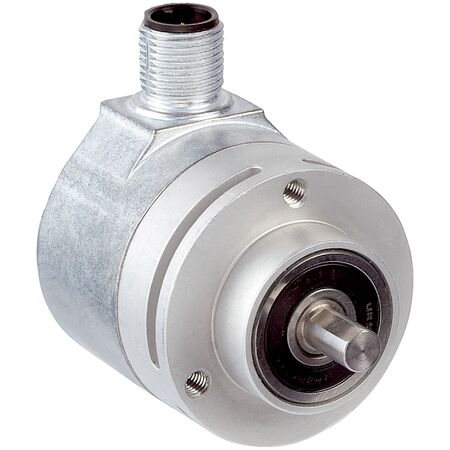

Absolute Rotary Encoder SKM36S-HVA0-K02 | SIL 2 Safety Level | 16,777,216 Steps | IP65 Rated | by SICK
The SKM36S-HVA0-K02 absolute rotary encoder delivers exceptional precision with 16,777,216 total steps and a SIL 2 safety integrity level, making it ideal for industrial automation and safety-critical applications. With an operating speed of up to 6,000 min⁻¹ and robust IP65 enclosure, this encoder ensures reliable performance in demanding environments, reducing downtime and enhancing operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SKM36S-HVA0-K02 | SIL 2 Safety Level | 16,777,216 Steps | IP65 Rated | by SICK
Brand: SICK
SKU: 1036559
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, Safety encoder SIL 2, Industrial position encoder
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Category: 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFH: 1.30 x 10⁻⁸ per hour
- Mission time: 20 years
- Sine/cosine periods per revolution: 128
- Absolute revolutions: 4,096
- Total steps: 16,777,216
- Measuring step: 2.5″
- Integral non-linearity: ±120″
- Operating speed: ≤ 6,000 min⁻¹
- Memory area: 1,792 Byte
- System accuracy: ±120″
- Code type: Binary
- Communication: HIPERFACE®
- Connection: Male M12, 8-pin radial
- Supply voltage: 7 V DC to 12 V DC
- Current consumption: 60 mA
- Output frequency: ≤ 65 kHz
- Shaft: Solid shaft
- Moment of inertia: 6 gcm²
- Operating torque: 0.6 Ncm
- Start-up torque: 0.9 Ncm
- Permissible shaft load: 10 N radial, 5 N axial
- Ball bearing life: 2.0 x 10⁹ revolutions
- Operating temperature: –20 °C to +100 °C
- Storage temperature: –40 °C to +125 °C
- Humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating altitude: up to 2,000 m
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL2 (IEC 62061)
- Category 3 (EN ISO 13849) and Performance level PL d
- High resolution with 16,777,216 total steps and 4,096 absolute revolutions
- Operating speed up to 6,000 min⁻¹ with reliable absolute position output
- Binary code output with HIPERFACE® communication interface
- Robust M12 8-pin male connector for electrical connection
- Wide operating temperature range from –20 °C to +100 °C
- IP65 enclosure rating with mating plug inserted
- Resistance to shocks up to 100 g and vibrations up to 50 g
- Low operating torque of 0.6 Ncm and start-up torque of 0.9 Ncm
Professional Installation Requirements
- Installation by qualified personnel with experience in safety-related encoder systems and compliance with relevant electrical and safety standards is recommended.
Applications
- Industrial automation for precise position measurement
- Safety-related machinery control requiring SIL 2 and PL d compliance
- High-speed rotary applications up to 6,000 min⁻¹
- Environments requiring IP65 rated encoders with robust EMC resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High reliability reduces downtime and waste from equipment failure
- Long operational life minimizes replacement frequency and resource consumption
Warranty Information
Warranty terms as per SICK standard policy; typically 1-2 years against manufacturing defects.
Available Now
The SICK SKM36S-HVA0-K02 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
