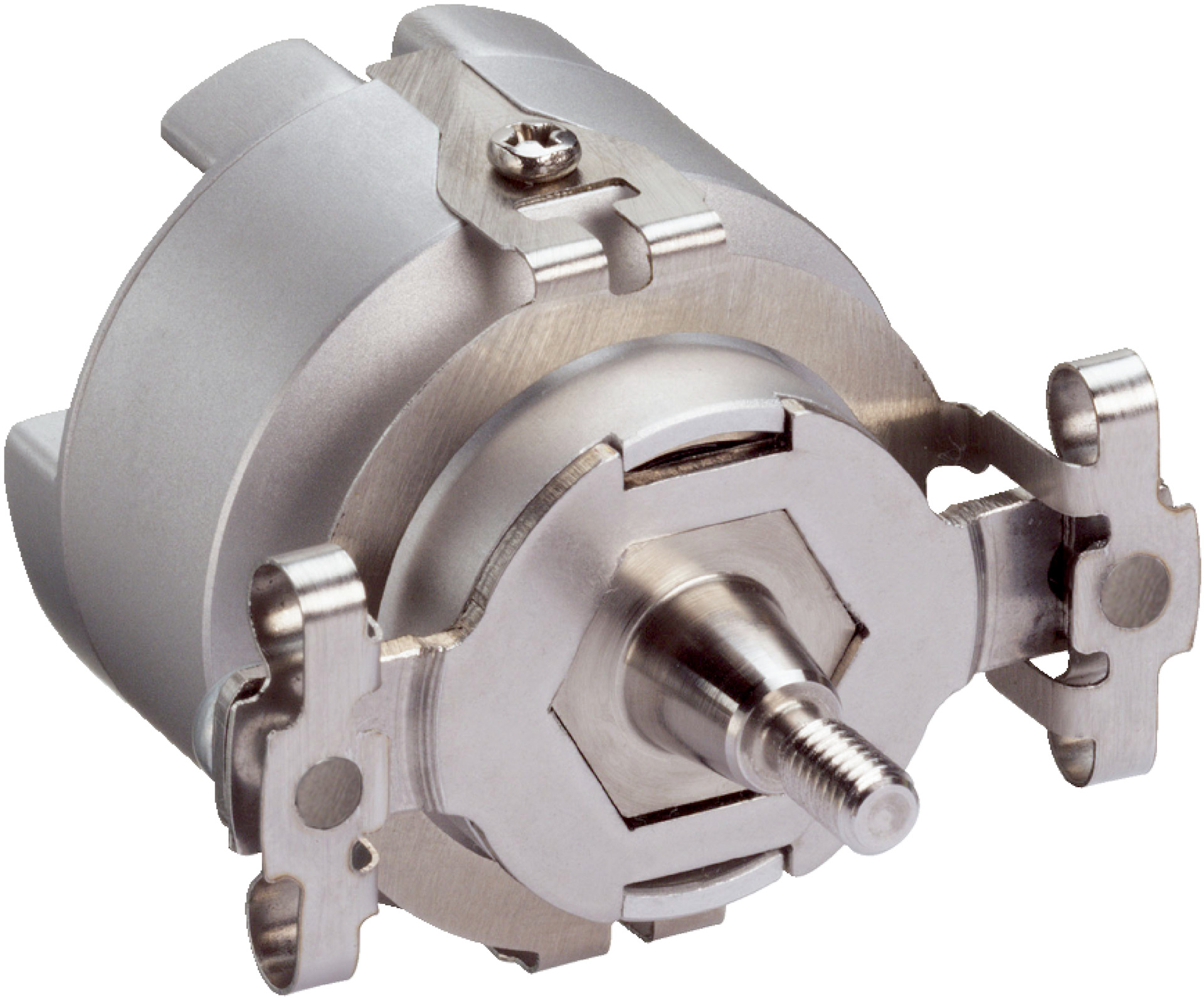

Absolute Rotary Encoder SKS36-HFA0-K02 | HIPERFACE Interface | High Speed 12,000 min⁻¹ | IP50 Rated | by SICK
The SKS36-HFA0-K02 absolute rotary encoder is designed for high-precision position measurement in industrial automation. With a HIPERFACE communication interface and an impressive operating speed of up to 12,000 min⁻¹, it ensures accurate feedback for robotics and machine tools. Built to withstand temperatures from –20 °C to +110 °C and featuring an IP50 enclosure rating, this encoder is perfect for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

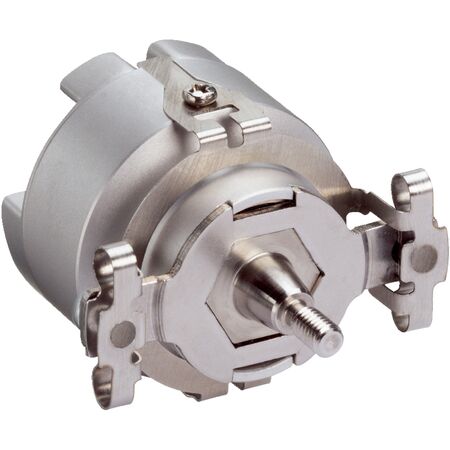

Product Name/Title: Absolute Rotary Encoder SKS36-HFA0-K02 | HIPERFACE Interface | High Speed 12,000 min⁻¹ | IP50 Rated | by SICK
Brand: SICK
SKU: 1034095
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, rotary position sensor, incremental encoder alternative
Technical Specifications
- Sine/cosine periods per revolution: 128
- Total number of steps: 4,096
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±80″
- Differential non-linearity: ±40″
- Operating speed: ≤12,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±120″
- Type of code: Binary
- Connection type: Male connector, 8-pin, radial
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤65 kHz
- Shaft version: Tapered shaft
- Moment of inertia of rotor: 4.5 gcm²
- Operating torque: 0.2 Ncm
- Start up torque: +0.3 Ncm
- Permissible static movement: ±0.1 mm radial, -0.4 mm to +0.2 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: –20 °C to +110 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 with mating plug inserted
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Absolute encoder with binary code output
- HIPERFACE® communication interface
- High operating speed up to 12,000 min⁻¹
- High system accuracy of ±120″
- Operating temperature range from –20 °C to +110 °C
- IP50 enclosure rating with mating plug inserted
- Long ball bearing life of 3.6 x 10⁹ revolutions
- Low operating torque of 0.2 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high accuracy rotary encoders
- Machine tools and manufacturing equipment
- Safety-related control systems in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption of 60 mA minimizes energy use
- Robust design reduces failure rates and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SKS36-HFA0-K02 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise position feedback.
