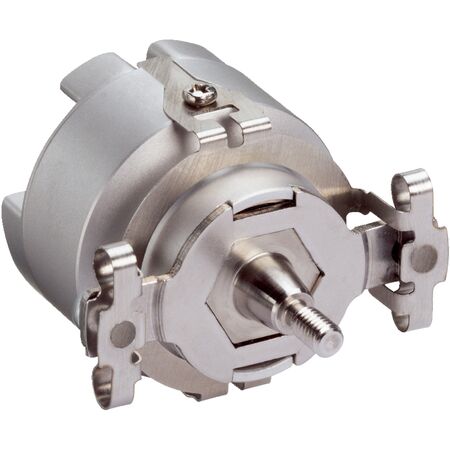

Absolute Rotary Encoder SKS36-HFA0-S05 | HIPERFACE Interface | High Accuracy ±120″ | IP50 Rated | by SICK
The SKS36-HFA0-S05 absolute rotary encoder is designed for precise position measurement in industrial automation and robotics. With a HIPERFACE communication interface and high accuracy of ±120″, it operates at speeds up to 12,000 min⁻¹. Ideal for machine tools and motion control systems, this encoder features a robust IP50 enclosure and long-life ball bearings, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SKS36-HFA0-S05 | HIPERFACE Interface | High Accuracy ±120″ | IP50 Rated | by SICK
Brand: SICK
SKU: 1037139
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, binary absolute encoder, rotary position sensor
Technical Specifications
- Sine/cosine periods per revolution: 128
- Total number of steps: 4,096
- Measuring step: 2.5″ with 12-bit interpolation
- Operating speed: ≤ 12,000 min⁻¹
- Available memory area: 1,792 Byte
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤ 65 kHz
- Moment of inertia of rotor: 4.5 gcm²
- Operating torque: 0.2 Ncm
- Start up torque: +0.3 Ncm
- Permissible static movement: ±0.1 mm radial, -0.4 mm to +0.2 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- MTTFD: 210 years (EN ISO 13849)
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (with mating plug inserted)
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Absolute encoder with binary code output
- HIPERFACE® communication interface
- High system accuracy of ±120″
- Operating speed up to 12,000 min⁻¹
- Integral non-linearity ±80″ and differential non-linearity ±40″
- Tapered shaft with spring mounting plate stator coupling
- Operating temperature range from –20 °C to +110 °C
- IP50 enclosure rating with mating plug inserted
- Long life ball bearings rated for 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to manufacturer instructions.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high accuracy rotary encoders
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
Warranty Information
Warranty terms as per SICK standard policy; typically 12 months from date of purchase.
Available Now
The SICK SKS36-HFA0-S05 absolute encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
