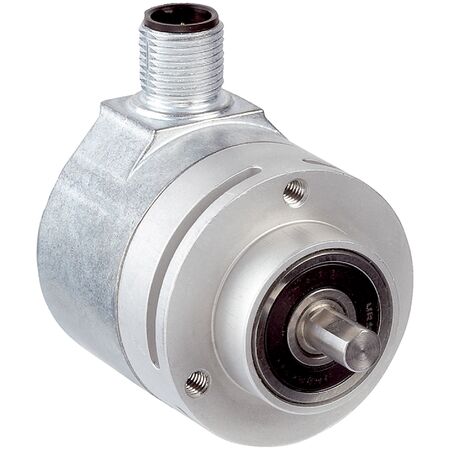

Absolute Rotary Encoder SKS36-HVA0-K02 | HIPERFACE Interface | High Accuracy ±120″ | IP50 Enclosure | by SICK
The Absolute Rotary Encoder SKS36-HVA0-K02 is designed for precise position measurement in industrial automation and servo motor feedback systems. With a high accuracy of ±120″ and an operating speed of up to 12,000 min⁻¹, this encoder is perfect for robotics and motion control applications. Its robust IP50 enclosure ensures durability in challenging environments, making it a reliable choice for machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SKS36-HVA0-K02 | HIPERFACE Interface | High Accuracy ±120″ | IP50 Enclosure | by SICK
Brand: SICK
SKU: 1035603
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK SKS36 encoder, rotary position sensor
Technical Specifications
- MTTFD: 205 years (EN ISO 13849)
- Sine/cosine periods per revolution: 128
- Total number of steps: 4,096
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±120″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position, max 12,000 min⁻¹
- Available memory area: 1,792 Byte
- Code type: Binary, increasing clockwise rotation
- Connection: Male M12, 8-pin radial connector
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤ 65 kHz
- Moment of inertia: 6 gcm²
- Operating torque: 0.6 Ncm, Start up torque: +0.9 Ncm
- Permissible shaft loading: 10 N radial, 5 N axial
- Life of ball bearings: 2.0 x 10^9 revolutions
- Operating temperature: –20 °C to +100 °C
- Storage temperature: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 with mating plug
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Absolute encoder with binary code output
- HIPERFACE® communication interface
- High system accuracy of ±120″
- Operating speed up to 12,000 min⁻¹
- Solid shaft with servo/face mount flange
- Robust design with IP50 enclosure rating
- Wide operating temperature range from –20 °C to +100 °C
- Low operating torque of 0.6 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with encoder integration and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 60 mA current draw
- Durable design reduces need for frequent replacements
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SKS36-HVA0-K02 Absolute Encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
