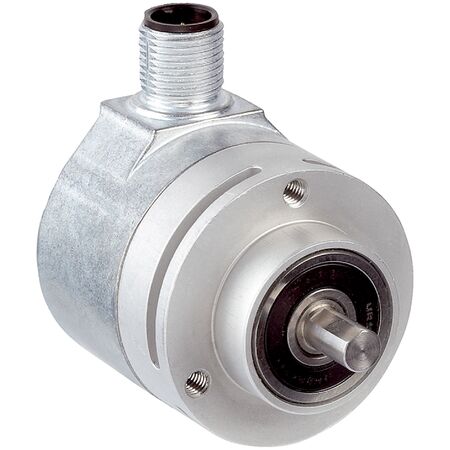

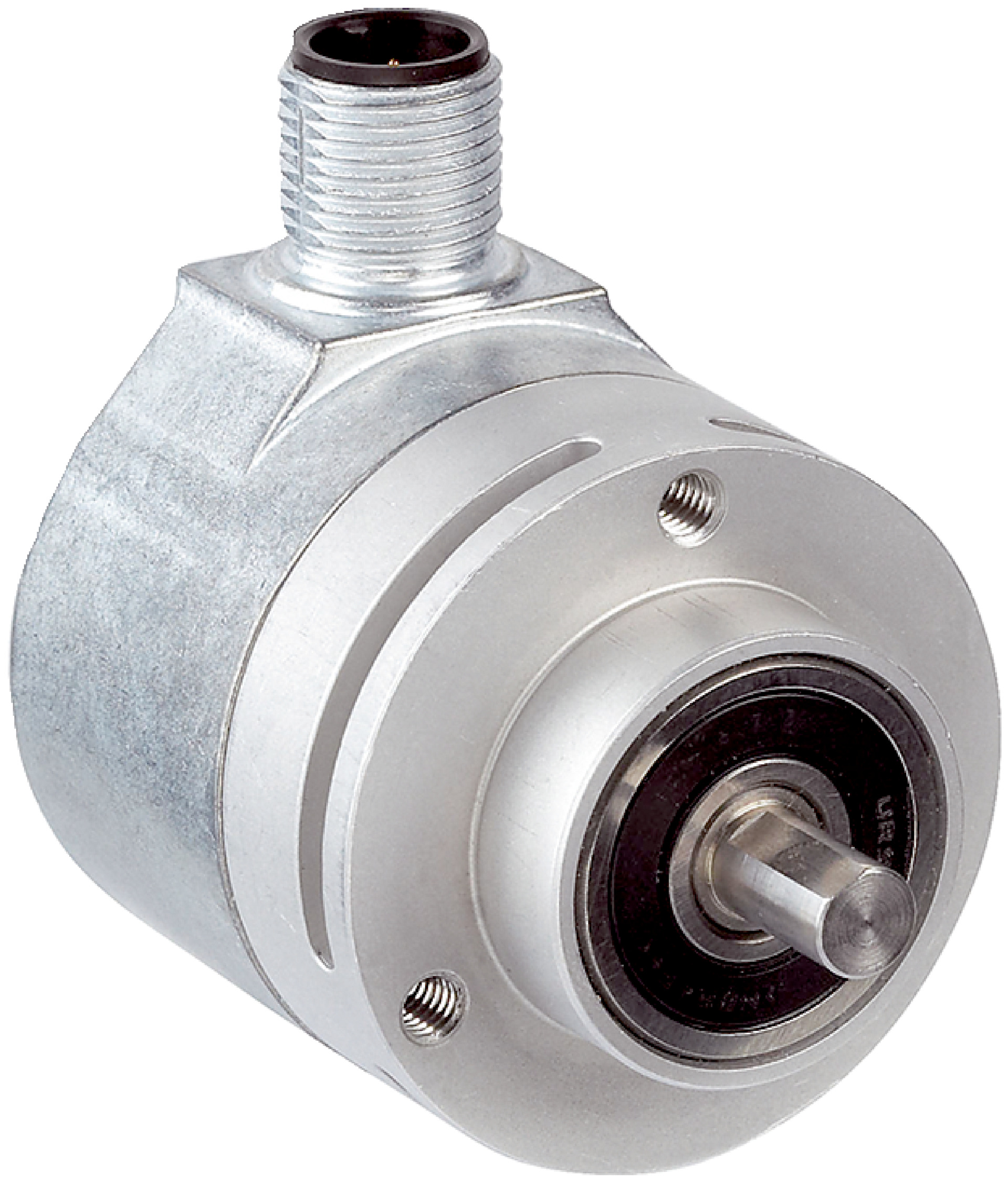

Absolute Rotary Encoder SKS36-HVV0-K02 | HIPERFACE Interface | High Accuracy ±120″ | IP50 Rated | by SICK
The SKS36-HVV0-K02 absolute rotary encoder is designed for precise position measurement in industrial automation. With a HIPERFACE communication interface and high system accuracy of ±120″, it operates at speeds up to 6,000 min⁻¹. Ideal for servo motor feedback systems and robotics, this encoder ensures reliable performance in demanding environments, featuring an IP50 enclosure rating and a solid shaft design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SKS36-HVV0-K02 | HIPERFACE Interface | High Accuracy ±120″ | IP50 Rated | by SICK
Brand: SICK
SKU: 1035604
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK SKS36 encoder, industrial position encoder
Technical Specifications
- MTTFD: 205 years (EN ISO 13849)
- Sine/cosine periods per revolution: 128
- Number of absolute ascertainable revolutions: 1
- Total number of steps: 4,096
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±120″
- Differential non-linearity: within sine/cosine period
- Operating speed (absolute position): ≤ 6,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±120″
- Code type: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection type: Cable, 8-wire, 1.5 m
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤ 65 kHz
- Shaft version: Solid shaft
- Flange type: Servo/face mount flange
- Weight: ≤ 0.07 kg
- Moment of inertia of rotor: 6 gcm²
- Max operating speed: 12,000 min⁻¹
- Angular acceleration: ≤ 500,000 rad/s²
- Operating torque: 0.6 Ncm
- Start up torque: +0.9 Ncm
- Permissible shaft loading: 10 N radial, 5 N axial
- Life of ball bearings: 2.0 x 10^9 revolutions
- Operating temperature: –20 °C to +100 °C
- Storage temperature: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 with mating plug
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Absolute encoder with binary code output
- HIPERFACE® communication interface
- High system accuracy of ±120″
- Operating speed up to 6,000 min⁻¹ for absolute position
- Solid shaft with servo/face mount flange
- Operating temperature range from –20 °C to +100 °C
- IP50 enclosure rating with mating plug inserted
- Low operating torque of 0.6 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption of 60 mA minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SKS36-HVV0-K02 absolute encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
