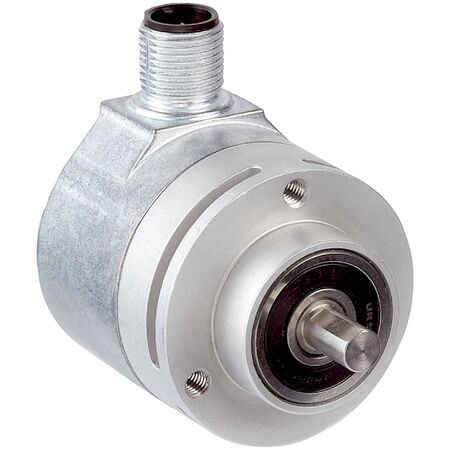

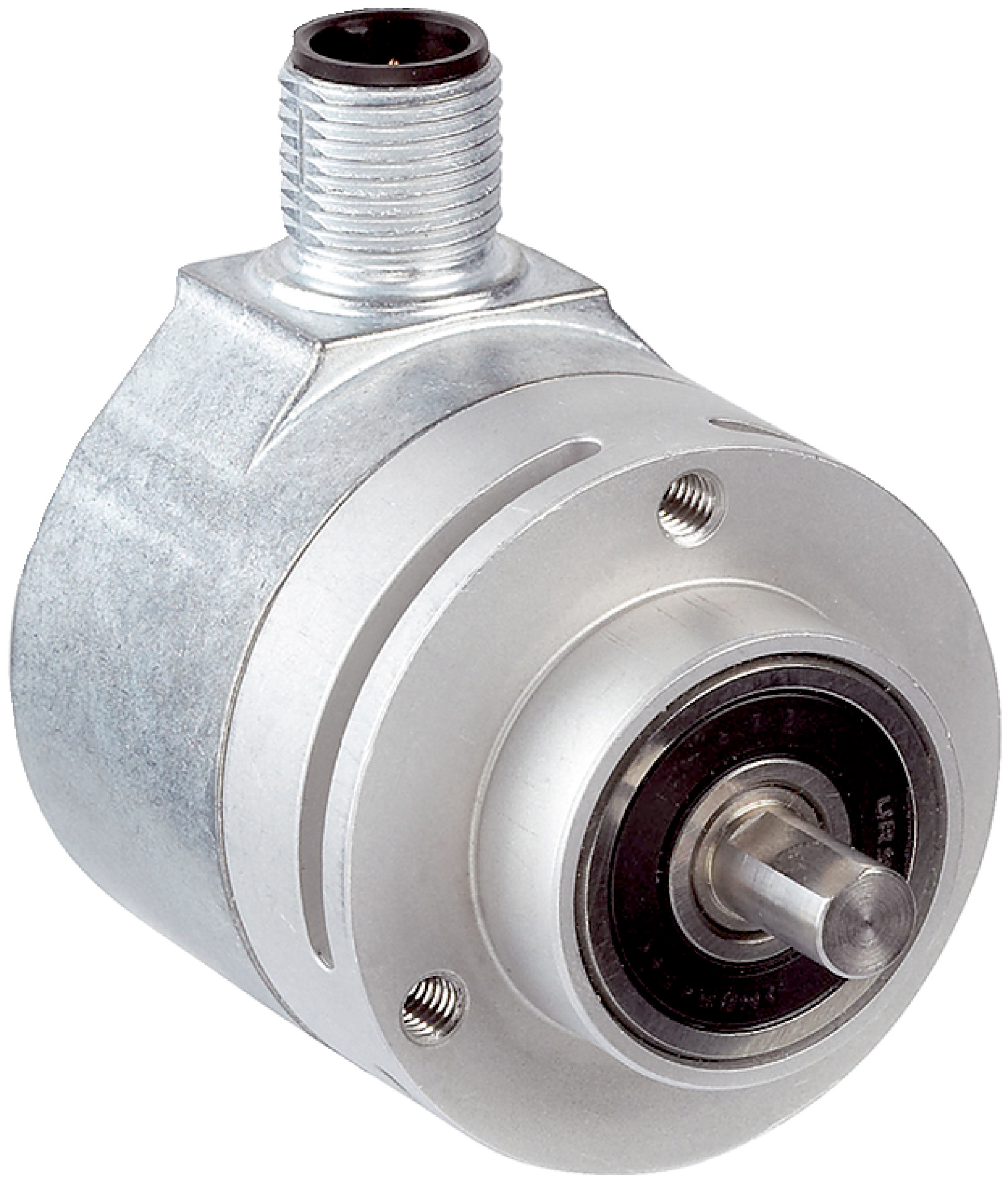

Absolute Rotary Encoder SKS36S-HVA0-K02 | SIL 2 Safety Level | 4,096 Steps | HIPERFACE Communication | by SICK
The Absolute Rotary Encoder SKS36S-HVA0-K02 is designed for precise position measurement in industrial automation, featuring a SIL 2 safety integrity level and a performance level of PL d. With 4,096 total steps and an operating speed of up to 6,000 min⁻¹, this encoder is perfect for safety-critical applications requiring robust shock and vibration resistance, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SKS36S-HVA0-K02 | SIL 2 Safety Level | 4,096 Steps | HIPERFACE Communication | by SICK
Brand: SICK
SKU: 1036557
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SIL 2 encoder, PL d position sensor
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Category: 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFH: 1.30 x 10⁻⁸ per hour
- Mission time: 20 years
- Sine/cosine periods per revolution: 128
- Total steps: 4,096
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±120″
- Operating speed: ≤ 6,000 min⁻¹
- Memory area: 1,792 Byte
- System accuracy: ±120″
- Code type: Binary
- Communication interface: HIPERFACE®
- Connection: Male M12, 8-pin radial connector
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: 60 mA
- Output frequency: ≤ 65 kHz
- Shaft: Solid shaft
- Flange type: Stator coupling
- Moment of inertia: 6 gcm²
- Operating torque: 0.6 Ncm
- Start-up torque: 0.9 Ncm
- Permissible shaft load: 10 N radial, 5 N axial
- Ball bearing life: 2.0 x 10⁹ revolutions
- Operating temperature: –20 °C to +100 °C
- Storage temperature: –40 °C to +125 °C
- Humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50
- Operating altitude: up to 2,000 m
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL2 (IEC 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- Absolute encoder with 4,096 total steps and 128 sine/cosine periods per revolution
- Binary code output with HIPERFACE® communication interface
- Operating speed up to 6,000 min⁻¹ with system accuracy ±120″
- Solid shaft with stator coupling and low operating torque of 0.6 Ncm
- Robust design with IP50 enclosure rating and resistance to shocks (100 g) and vibrations (50 g)
- Wide operating temperature range from –20 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring SIL 2 and PL d compliance
- High-speed machinery with operating speeds up to 6,000 min⁻¹
- Environments requiring robust shock and vibration resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption with 60 mA current draw
- Robust design minimizes environmental impact through durability
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK SKS36S-HVA0-K02 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
