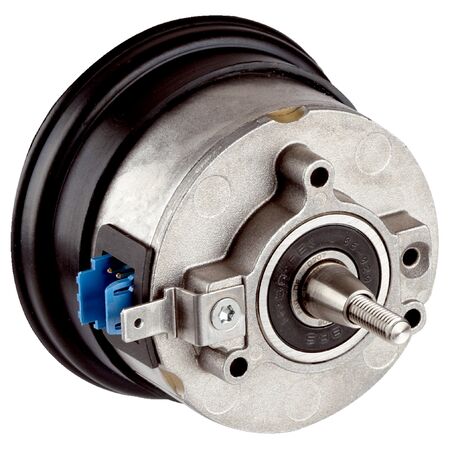

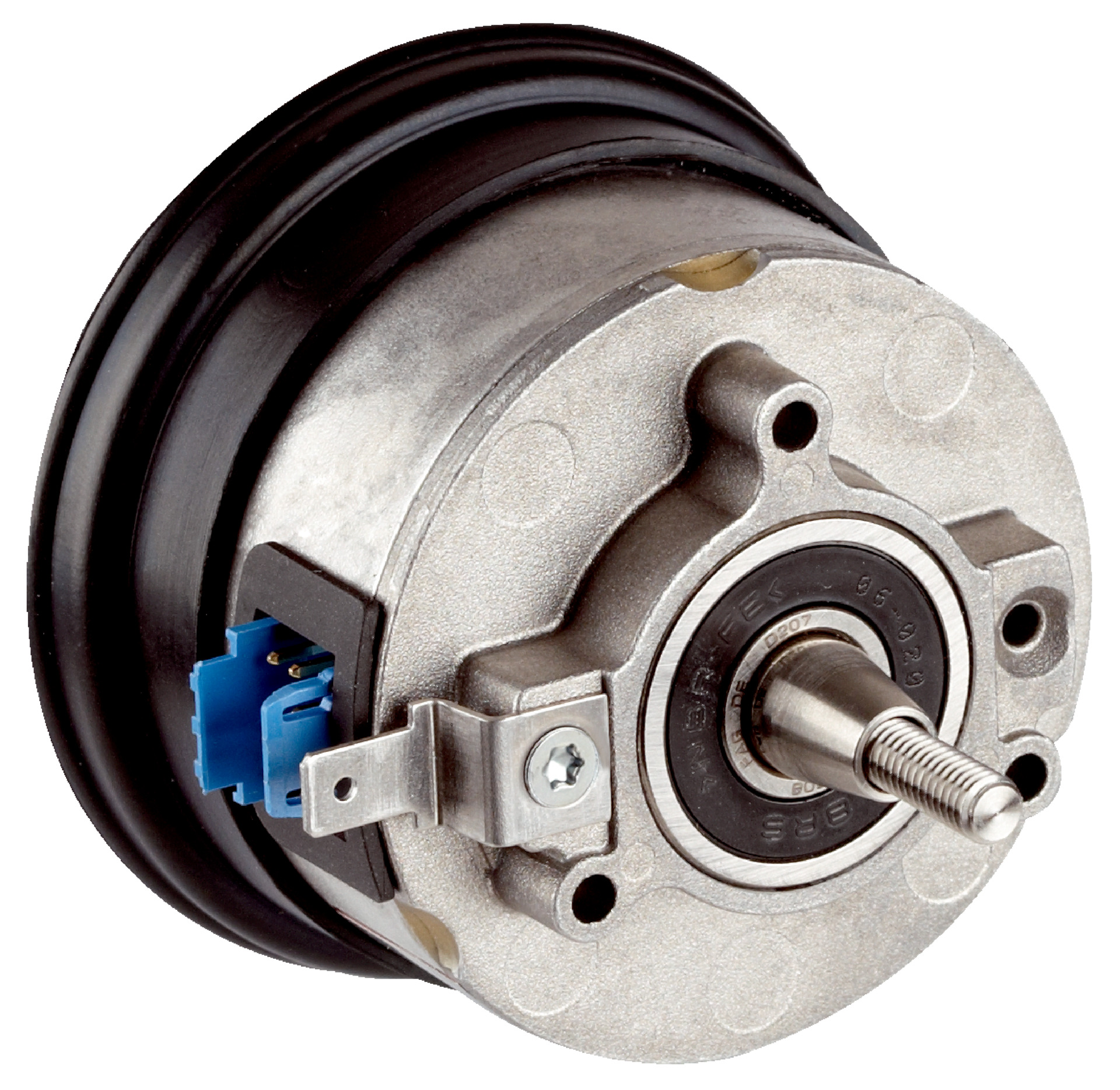

Product Name/Title: Absolute Rotary Encoder SRM50-HEA0-K22 | 1,024 Sine/Cosine Periods | 4,096 Revolutions | High Accuracy ±52″ | by SICK
Brand: SICK
SKU: 1037088
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK SRM50 encoder, rotary position sensor
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Number of absolute ascertainable revolutions: 4,096
- Total number of steps: 134,217,728
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: Typical ±45″
- Differential non-linearity: ±7″
- Operating speed (absolute position): ≤ 6,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±52″
- Type of code for absolute value: Binary
- Communication interface: HIPERFACE®
- Connection type: Male connector, 8-pin, radial
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft version: Tapered shaft
- Flange type: Rubber support
- Weight: ≤ 0.2 kg
- Moment of inertia of rotor: 10 gcm²
- Operating speed (mechanical): ≤ 12,000 min⁻¹
- Angular acceleration: ≤ 200,000 rad/s²
- Operating torque: 0.2 Ncm
- Start up torque: +0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.75 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: –30 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40 with mating plug inserted
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Absolute encoder with 1,024 sine/cosine periods per revolution
- 4,096 absolute ascertainable revolutions
- High system accuracy of ±52″
- Operating speed up to 6,000 min⁻¹ for absolute position
- Robust tapered shaft with rubber support flange
- Operating temperature range from –30 °C to +115 °C
- IP40 enclosure rating with mating plug inserted
- Communication via HIPERFACE® interface
- Mean time to dangerous failure (MTTFD) of 235 years (EN ISO 13849)
