Absolute Rotary Encoder SRM50-HGV0-K22 | 1,024 Sine/Cosine Periods | 4,096 Revolutions | High Accuracy ±52″ | by SICK
The SRM50-HGV0-K22 absolute rotary encoder is designed for precision in industrial automation, featuring 1,024 sine/cosine periods per revolution and 4,096 absolute ascertainable revolutions. With a high system accuracy of ±52″ and an operating speed of up to 6,000 min⁻¹, it’s perfect for servo motor feedback and robotics applications. Its robust IP40 enclosure ensures durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

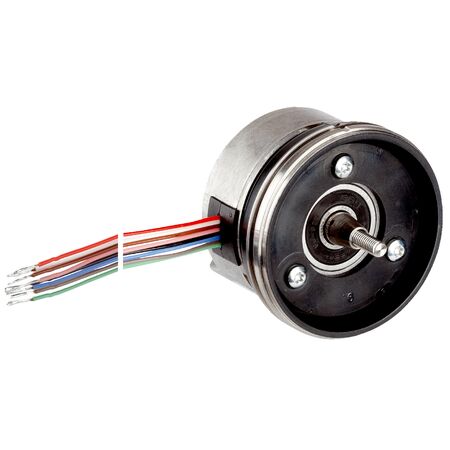

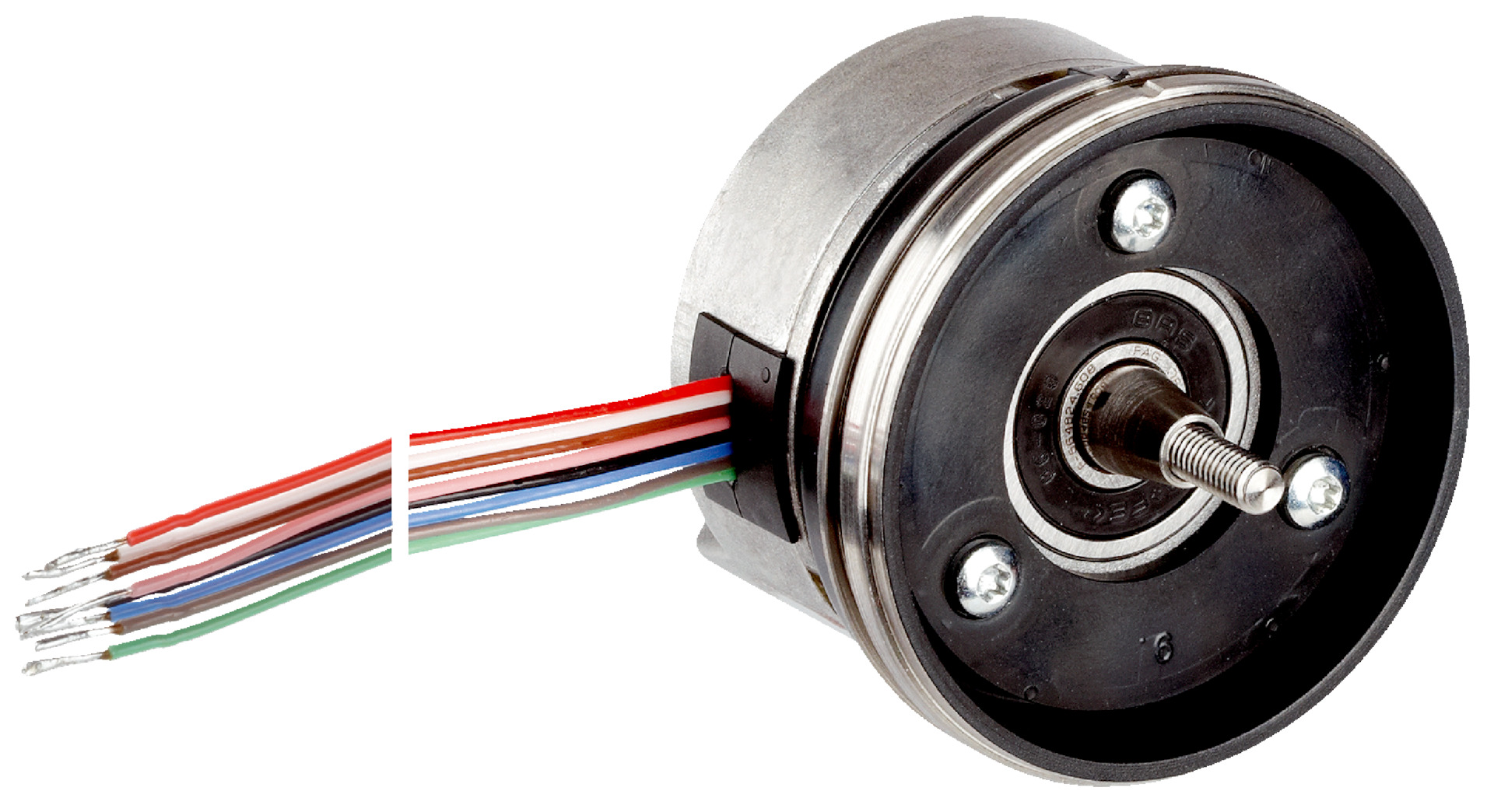

Product Name/Title: Absolute Rotary Encoder SRM50-HGV0-K22 | 1,024 Sine/Cosine Periods | 4,096 Revolutions | High Accuracy ±52″ | by SICK
Brand: SICK
SKU: 1037082
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK SRM50 encoder, rotary position sensor
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Number of absolute ascertainable revolutions: 4,096
- Total number of steps: 134,217,728
- Measuring step: 0.3 ″ with 12-bit interpolation
- Integral non-linearity: Typical ±45 ″
- Differential non-linearity: ±7 ″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position
- Available memory area: 1,792 Byte
- System accuracy: ±52 ″
- Type of code: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection type: 8-wire radial cable, 0.2 m length
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft version: Tapered shaft
- Moment of inertia of rotor: 10 gcm²
- Operating torque: 0.2 Ncm, start-up torque +0.4 Ncm
- Permissible radial shaft movement: ±0.6 mm
- Permissible axial shaft movement: ±0.95 mm
- Operating temperature range: –30 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40 with mating plug inserted
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Absolute encoder with 1,024 sine/cosine periods per revolution
- 4,096 absolute ascertainable revolutions
- High system accuracy of ±52 ″
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- Binary code output with HIPERFACE® communication interface
- Operating temperature range from –30 °C to +115 °C
- IP40 enclosure rating with mating plug inserted
- Low operating torque of 0.2 Ncm and start-up torque of +0.4 Ncm
- Long ball bearing life of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Servo motor feedback and positioning
- Robotics and motion control
- Precision measurement in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 80 mA supports energy-efficient operation
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK SRM50-HGV0-K22 absolute encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
