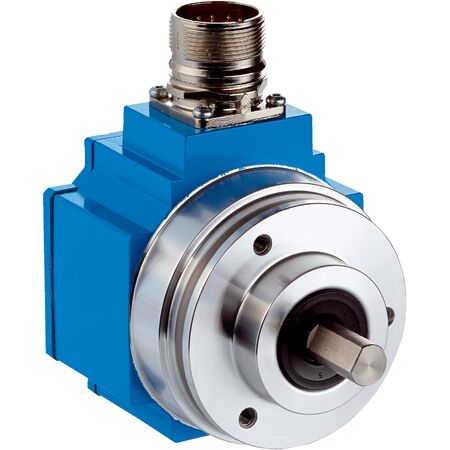

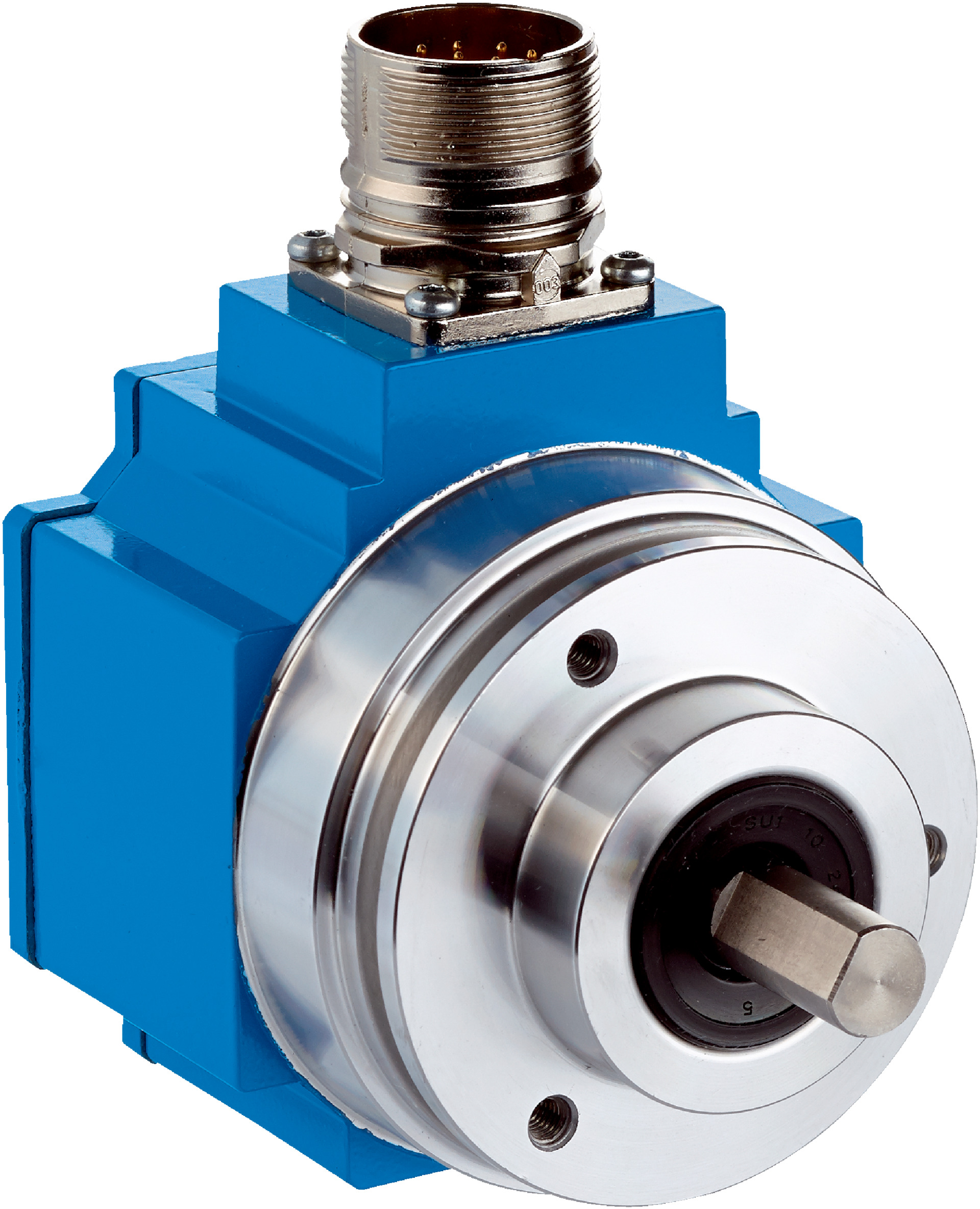

Absolute Rotary Encoder SRM50-HWV0-K22 | 1,024 Sine/Cosine Periods | 4,096 Absolute Revolutions | IP65 Rated | by SICK
The Absolute Rotary Encoder SRM50-HWV0-K22 offers high-resolution position measurement with 1,024 sine/cosine periods per revolution and 4,096 ascertainable revolutions. Designed for industrial automation and robotics, it features a robust 10 mm solid shaft and an IP65 rated enclosure, ensuring reliable performance in demanding environments. With a wide operating temperature range from –30 °C to +85 °C, this encoder is perfect for precise feedback in machine tools and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRM50-HWV0-K22 | 1,024 Sine/Cosine Periods | 4,096 Absolute Revolutions | IP65 Rated | by SICK
Brand: SICK
SKU: 1037098
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, shaft encoder, position encoder, industrial encoder
Technical Specifications
- MTTFD: 235 years (EN ISO 13849)
- Sine/cosine periods per revolution: 1,024
- Number of absolute ascertainable revolutions: 4,096
- Total number of steps: 134,217,728
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed: ≤6,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±52″
- Code type: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection type: 8-wire radial cable, 1.5 m
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤200 kHz
- Shaft diameter: 10 mm solid shaft
- Flange type: Face mount flange
- Moment of inertia: 25 gcm²
- Operating torque: 1 Ncm
- Start up torque: +1.5 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature: –30 °C to +85 °C
- Storage temperature: –30 °C to +90 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with mating plug
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position measurement with 4,096 ascertainable revolutions
- Robust solid shaft design with 10 mm diameter
- HIPERFACE® communication interface for reliable data transmission
- Operating speed up to 6,000 min⁻¹ with high system accuracy ±52″
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from –30 °C to +85 °C
- Low current consumption of 80 mA
- Long ball bearing life of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft rotation feedback
- Machine tools requiring high-resolution absolute position sensing
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SRM50-HWV0-K22 Absolute Encoder is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise position feedback.
