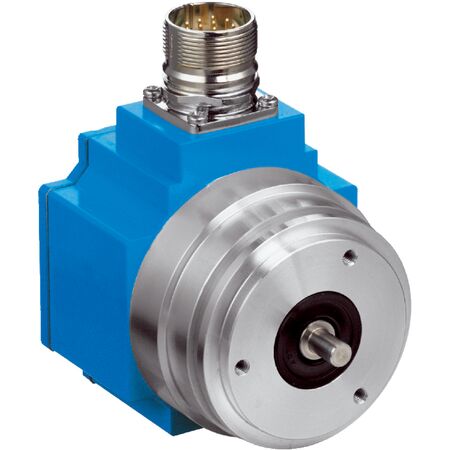

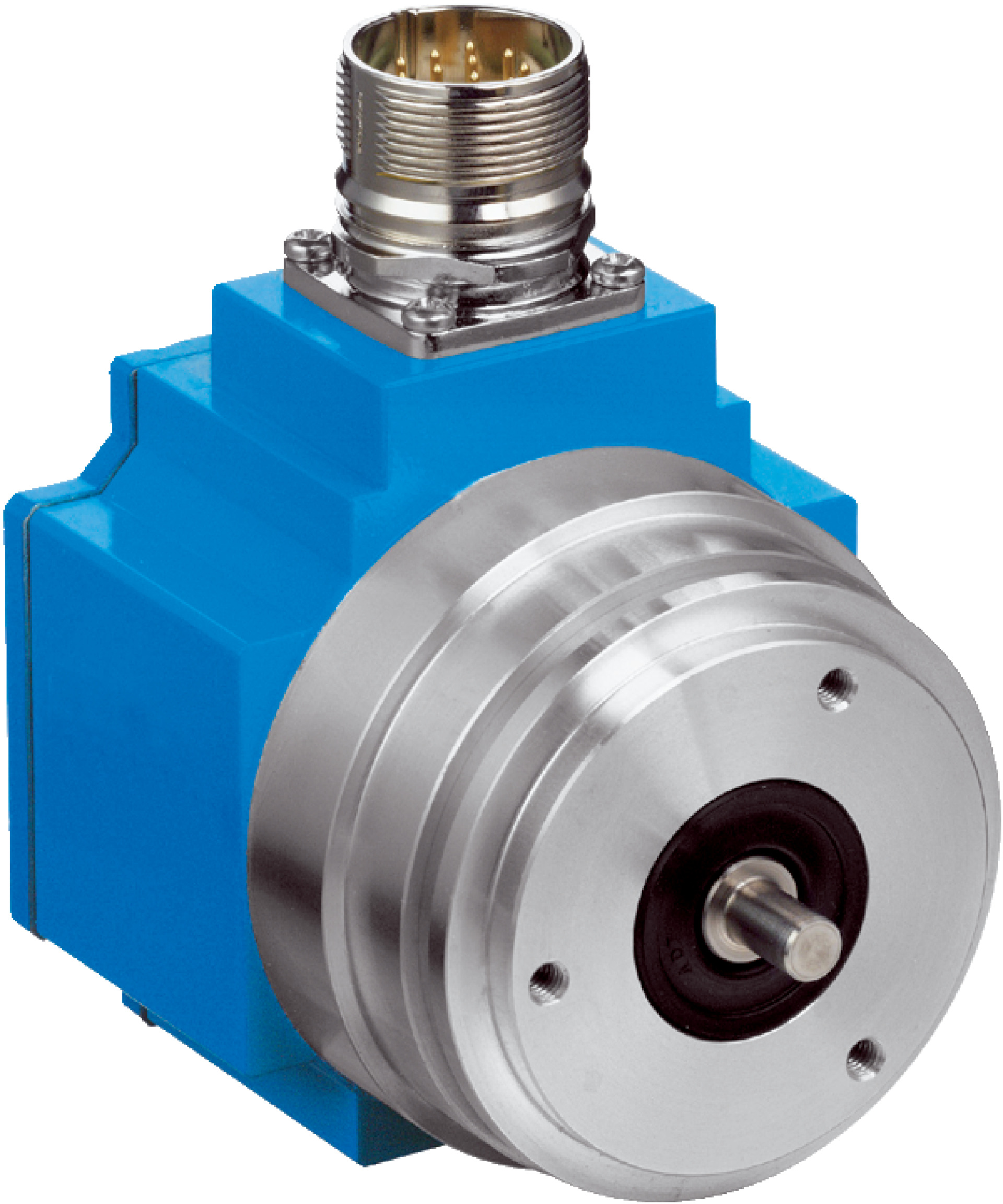

Absolute Rotary Encoder SRM50-HXV0-K22 | High System Accuracy | IP65 Rated | 6 mm Solid Shaft | by SICK
The Absolute Rotary Encoder SRM50-HXV0-K22 offers high system accuracy of ±52″ and absolute position measurement with 1,024 sine/cosine periods per revolution. Designed for industrial automation, robotics, and safety-related applications, it features a robust IP65 rated enclosure and operates efficiently in temperatures from –30 °C to +85 °C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRM50-HXV0-K22 | High System Accuracy | IP65 Rated | 6 mm Solid Shaft | by SICK
Brand: SICK
SKU: 1037106
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK SRM50 encoder, industrial position sensor
Technical Specifications
- MTTFD: 235 years (EN ISO 13849)
- Sine/cosine periods per revolution: 1,024
- Number of absolute ascertainable revolutions: 4,096
- Total number of steps: 134,217,728
- Measuring step: 0.3 ″ with 12-bit interpolation
- Integral non-linearity: ±45 ″ typical
- Differential non-linearity: ±7 ″
- Operating speed: ≤ 6,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±52 ″
- Code type: Binary, increasing clockwise
- Communication interface: HIPERFACE®
- Connection type: 8-wire radial cable, 1.5 m
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft diameter: 6 mm solid shaft
- Flange type: Servo flange with stator coupling
- Moment of inertia: 25 gcm²
- Operating torque: 1 Ncm
- Start up torque: +1.5 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature: –30 °C to +85 °C
- Storage temperature: –30 °C to +90 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with mating plug
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- High system accuracy of ±52 ″
- Absolute position measurement with 1,024 sine/cosine periods per revolution
- Binary code output with HIPERFACE® communication interface
- Solid shaft with 6 mm diameter and servo flange stator coupling
- Operating speed up to 6,000 min⁻¹
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from –30 °C to +85 °C
- Low current consumption of 80 mA
- Long ball bearing life of 3.6 x 10⁹ revolutions
- Mean time to dangerous failure (MTTFD) of 235 years according to EN ISO 13849
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with encoder integration and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position measurement
- Servo motor feedback systems
- Robotics and motion control
- Safety-related applications requiring high reliability
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SRM50-HXV0-K22 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
