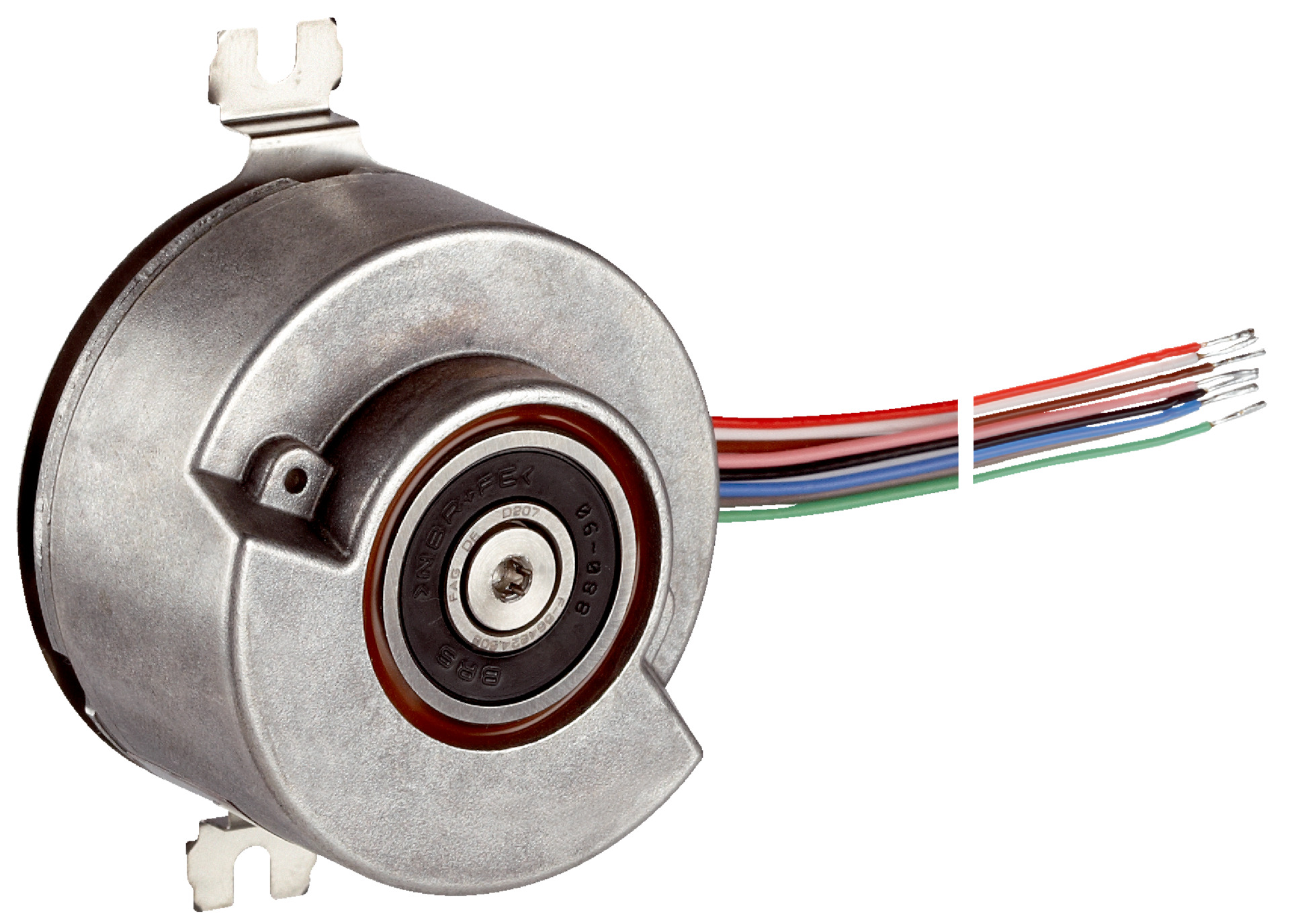

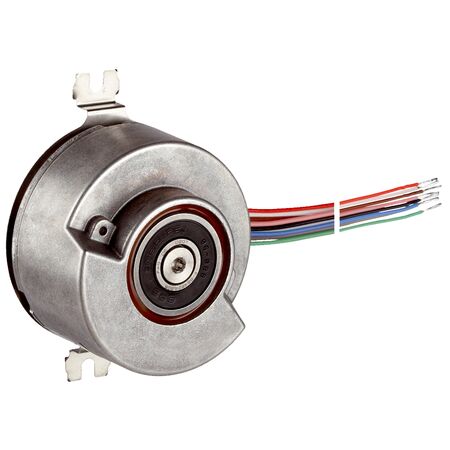

Absolute Rotary Encoder SRM50S-HFV0-K21 | SIL 2 Safety Level | 4,096 Absolute Revolutions | IP40 Enclosure | by SICK
The SRM50S-HFV0-K21 absolute rotary encoder is designed for high-precision applications in industrial automation. With a SIL 2 safety integrity level and 4,096 absolute revolutions, it ensures reliable performance in safety-critical motion control systems. Its robust design features a tapered shaft and operates within a wide temperature range of -30 °C to +115 °C, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRM50S-HFV0-K21 | SIL 2 Safety Level | 4,096 Absolute Revolutions | IP40 Enclosure | by SICK
Brand: SICK
SKU: 1051795
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SIL 2 encoder, rotary position sensor
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Sine/cosine periods per revolution: 1,024
- Absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position
- Memory area: 128 Byte
- System accuracy: ±52″
- Code type: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection: 8-wire cable, radial, 2 m
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft: Tapered shaft
- Flange: Spring mounting plate
- Moment of inertia: 10 gcm²
- Operating torque: 0.2 Ncm, Start-up torque: +0.4 Ncm
- Permissible static movement: ±0.5 mm radial, ±0.75 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature: –30 °C to +115 °C
- Storage temperature: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40 with mating plug
- Operating altitude: up to 2,000 m
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL2 (IEC 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position encoding with 4,096 revolutions and 134,217,728 total steps
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- Binary code output via HIPERFACE® communication interface
- Robust mechanical design with tapered shaft and spring mounting plate
- Wide operating temperature range from –30 °C to +115 °C
- IP40 enclosure rating with mating plug inserted
- Low operating torque of 0.2 Ncm and start-up torque +0.4 Ncm
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper integration with control systems.
Applications
- Industrial automation and control systems
- Safety-related motion control applications
- Servo motor feedback and positioning
- High-precision rotary measurement in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High reliability reduces downtime and waste from replacements
- Low power consumption electronics contribute to energy efficiency
- Long operational life minimizes environmental impact from disposal
Warranty Information
Warranty terms as per SICK standard policy; typically 1-2 years against manufacturing defects.
Available Now
The SICK SRM50S-HFV0-K21 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
