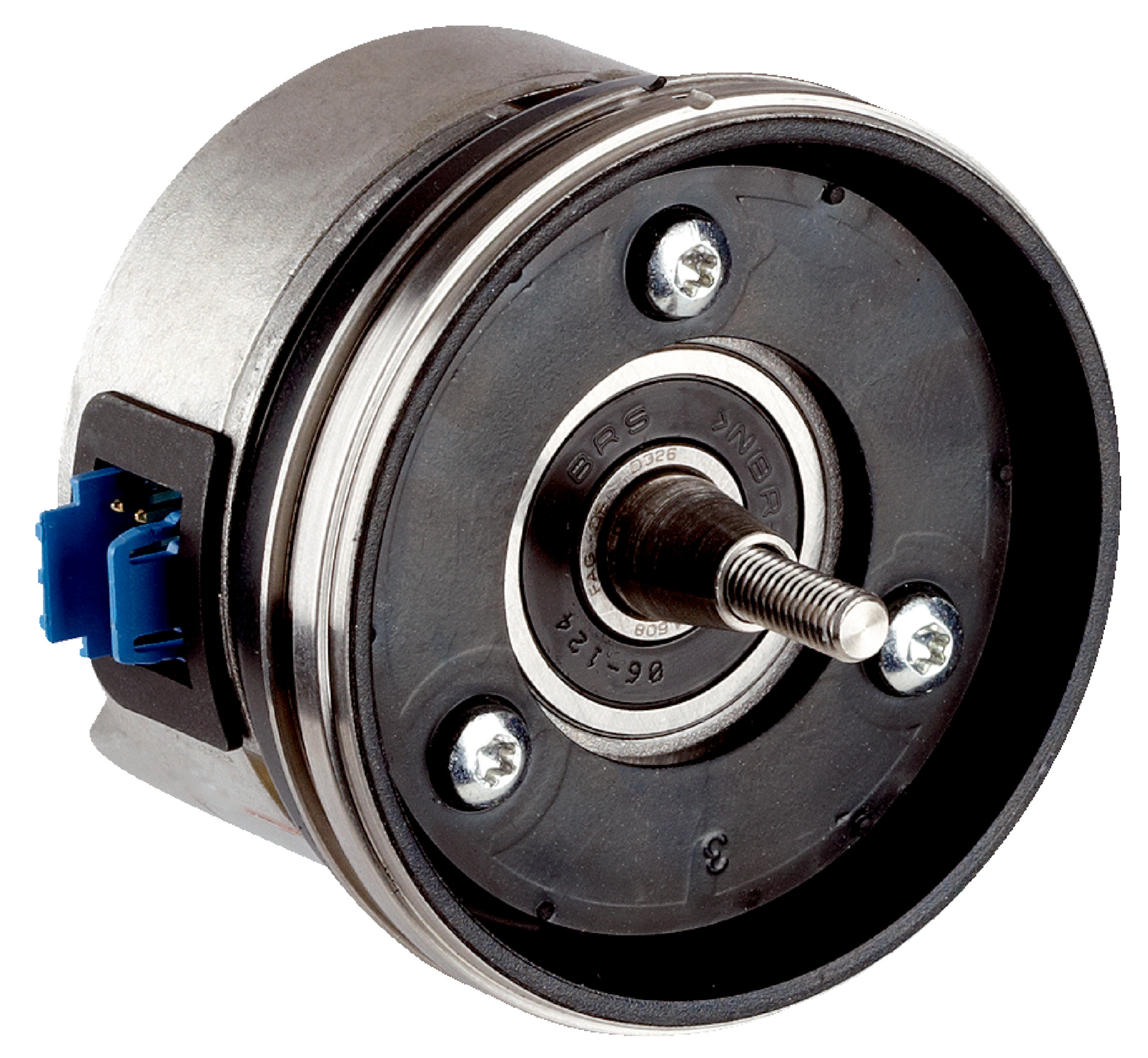

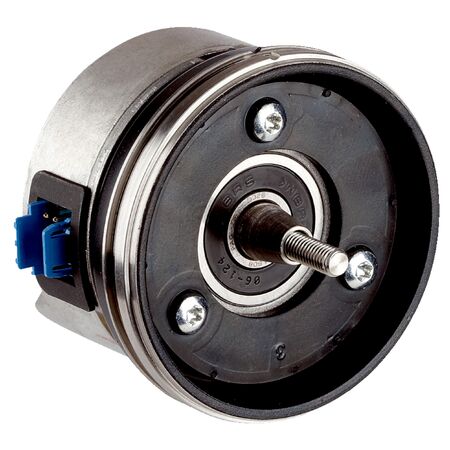

Absolute Rotary Encoder SRM50S-HGA0-K22 | SIL 2 Safety Level | 4,096 Absolute Revolutions | IP40 Enclosure | by SICK
The Absolute Rotary Encoder SRM50S-HGA0-K22 offers high precision with 4,096 absolute revolutions and a SIL 2 safety integrity level, making it ideal for industrial automation and safety-critical applications. With a robust design and an operating temperature range of -30 °C to +115 °C, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRM50S-HGA0-K22 | SIL 2 Safety Level | 4,096 Absolute Revolutions | IP40 Enclosure | by SICK
Brand: SICK
SKU: 1051802
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, Safety encoder, Rotary position sensor
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Sine/cosine periods per revolution: 1,024
- Number of absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position
- Memory area: 1,792 Byte
- System accuracy: ±52″
- Code type: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection: Male 8-pin radial connector
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft: Tapered shaft
- Flange type: Resolver support
- Weight: ≤ 0.2 kg
- Moment of inertia: 10 gcm²
- Max operating speed: ≤ 12,000 min⁻¹
- Operating temperature: -30 °C to +115 °C
- Storage temperature: -40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40 with plug inserted
- Operating altitude: up to 2,000 m
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position measurement with 4,096 revolutions
- Binary code output with HIPERFACE® communication interface
- Operating temperature range from -30 °C to +115 °C
- Robust mechanical design with tapered shaft and resolver support
- IP40 enclosure rating with mating plug inserted
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical safety standards and encoder integration.
Applications
- Industrial automation and control systems
- Safety-related motion control applications
- High-precision rotary position measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High reliability reduces downtime and waste from replacements
- Long operational life minimizes resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SRM50S-HGA0-K22 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
