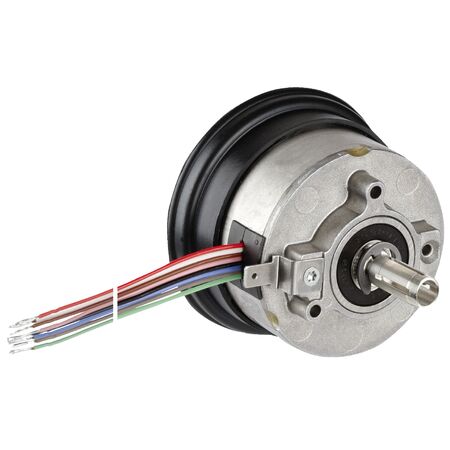

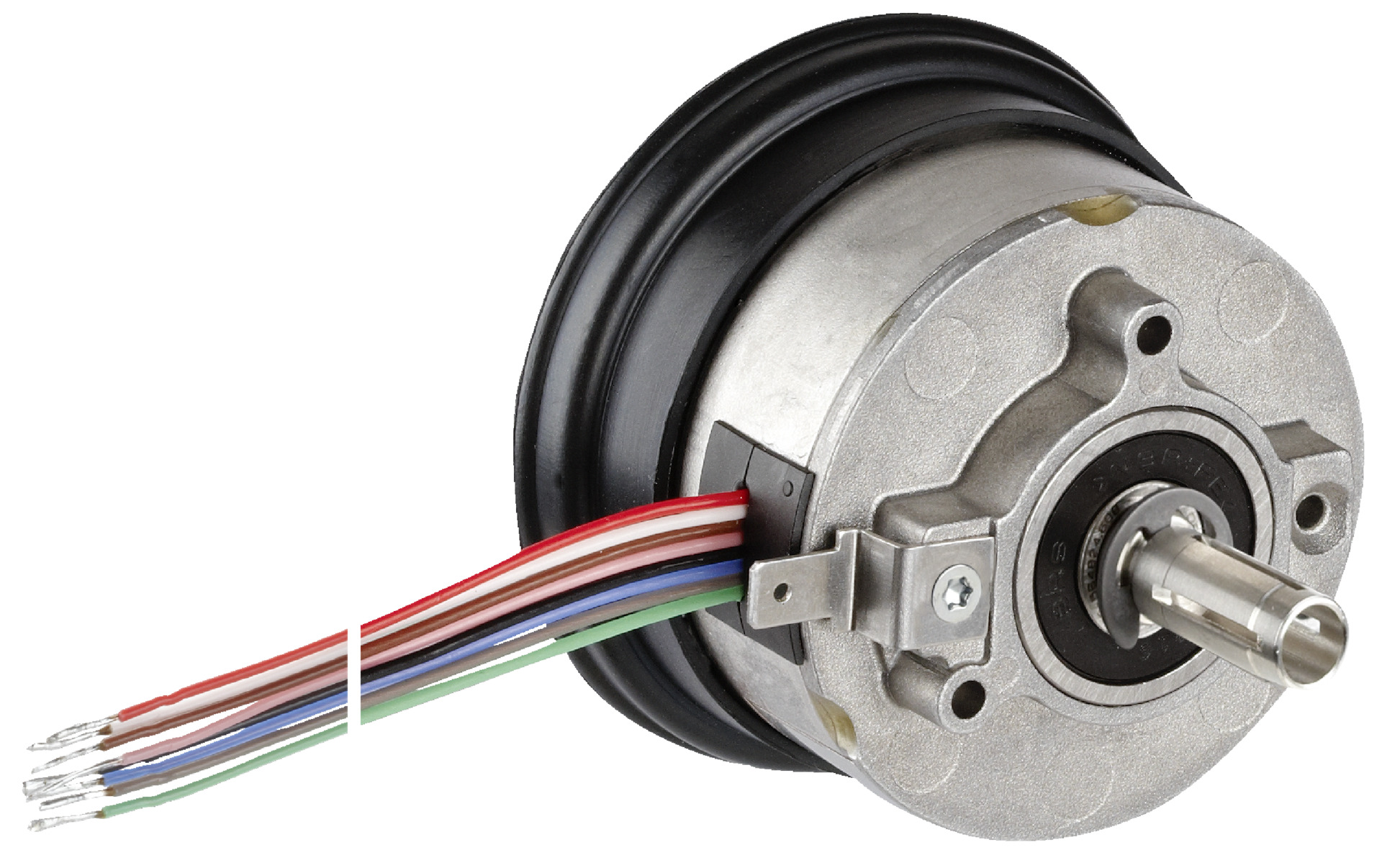

Absolute Rotary Encoder SRS50-HAV0-K22 | 32,768 Steps | ±52 Seconds Accuracy | IP40 Rated | by SICK
The SRS50-HAV0-K22 absolute rotary encoder delivers precise position measurement with 32,768 total steps and 1,024 sine/cosine periods per revolution. Designed for industrial automation and servo motor feedback systems, it operates at speeds up to 6,000 min⁻¹ and features a robust plug-in shaft with a rubber support flange. With an operating temperature range of -30°C to +115°C and an IP40 enclosure rating, this encoder ensures reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRS50-HAV0-K22 | 32,768 Steps | ±52 Seconds Accuracy | IP40 Rated | by SICK
Brand: SICK
SKU: 1037062
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK encoder SRS50, absolute position sensor
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Measuring step: 0.3 seconds for 12-bit interpolation
- Integral non-linearity: ±45 seconds
- Differential non-linearity: ±7 seconds
- Operating speed: ≤6,000 min⁻¹ for absolute position
- Available memory area: 1,792 Byte
- System accuracy: ±52 seconds
- Code type: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection type: 8-wire radial cable, 0.2 m length
- Supply voltage: 7-12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤200 kHz
- Shaft version: Plug-in shaft
- Flange type: Rubber support
- Moment of inertia of rotor: 10 gcm²
- Operating torque: 0.2 Ncm
- Start up torque: +0.4 Ncm
- Permissible static movement: ±0.5 mm radial, ±0.75 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: -30°C to +115°C
- Storage temperature range: -40°C to +125°C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40 with mating plug inserted
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Absolute encoder with 32,768 total steps and 1,024 sine/cosine periods per revolution
- High system accuracy of ±52 seconds
- Operating speed up to 6,000 min⁻¹ for reliable absolute position output
- Binary code output with HIPERFACE® communication interface
- Robust plug-in shaft with rubber support flange
- Operating temperature range from -30°C to +115°C
- IP40 enclosure rating with mating plug inserted
- Long ball bearing life of 3.6 x 10⁹ revolutions
- Low operating torque of 0.2 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption with 7-12 V DC supply voltage
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SRS50-HAV0-K22 absolute encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
