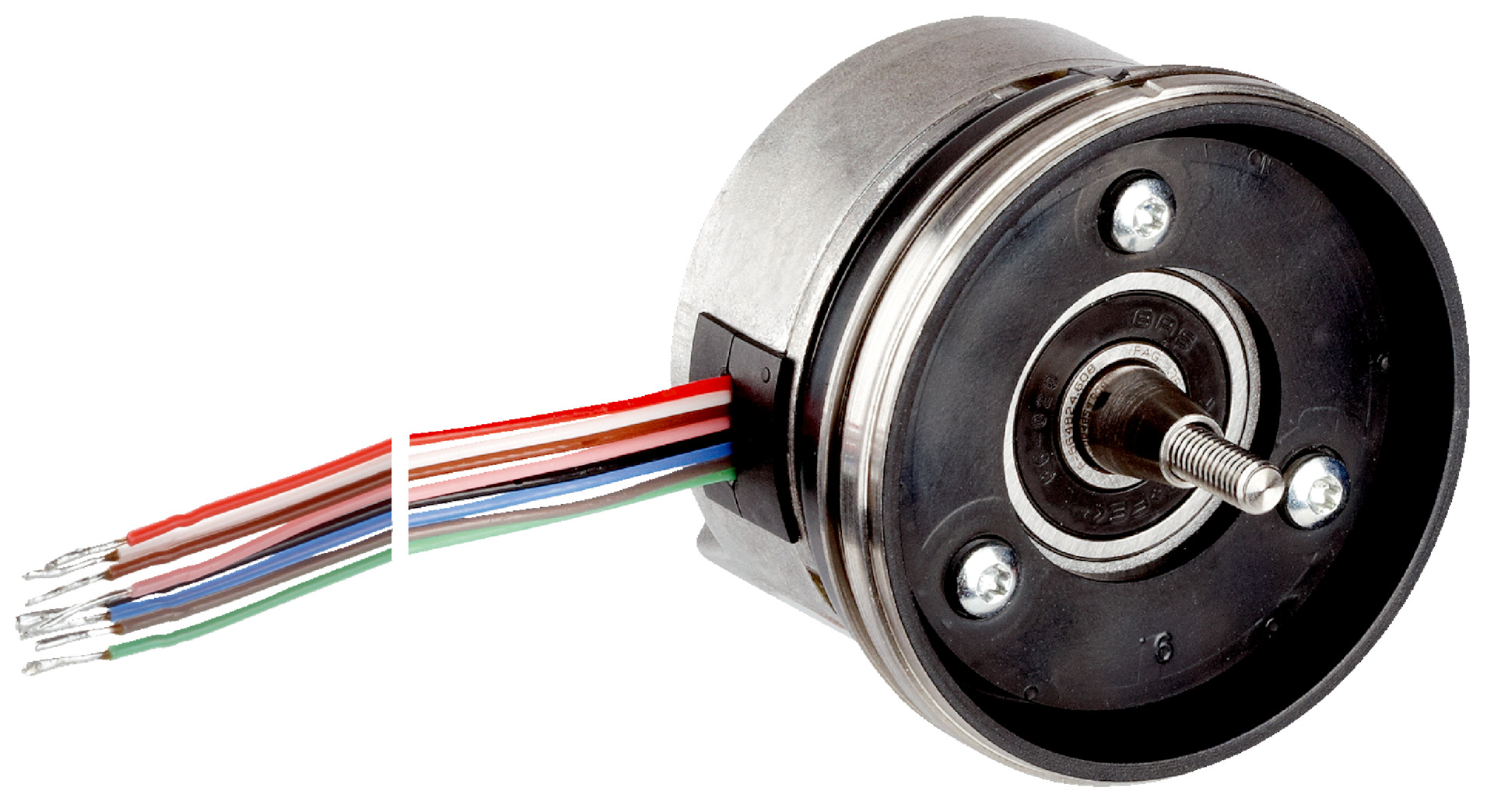

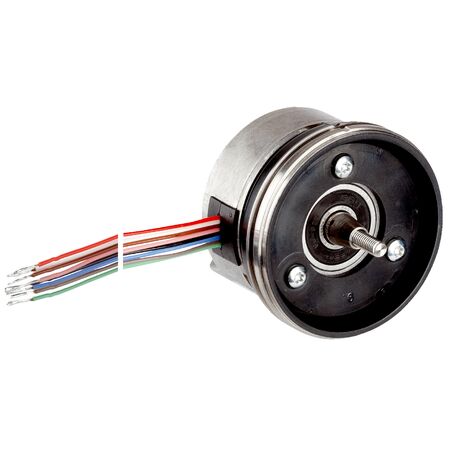

Absolute Rotary Encoder SRS50-HGV0-K22 | 1,024 Sine/Cosine Periods | ±52″ System Accuracy | IP40 Rated | by SICK
The SRS50-HGV0-K22 absolute rotary encoder delivers precise position measurement with 1,024 sine/cosine periods per revolution and a high system accuracy of ±52″. Designed for industrial automation and robotics, it operates at speeds up to 6,000 min⁻¹, ensuring reliable feedback in safety-critical applications. With a robust tapered shaft and IP40 enclosure, this encoder is built to withstand harsh environments while providing long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRS50-HGV0-K22 | 1,024 Sine/Cosine Periods | ±52″ System Accuracy | IP40 Rated | by SICK
Brand: SICK
SKU: 1037078
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK rotary encoder, industrial position sensor
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: typically ±45″
- Differential non-linearity: ±7″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position
- Available memory area: 1,792 Byte
- System accuracy: ±52″
- Type of code: Binary, increasing with clockwise shaft rotation
- Communication interface: HIPERFACE®
- Connection type: 8-wire radial cable, 0.2 m length
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft version: Tapered shaft
- Moment of inertia of rotor: 10 gcm²
- Operating torque: 0.2 Ncm, start-up torque +0.4 Ncm
- Permissible radial shaft movement: ±0.6 mm
- Permissible axial shaft movement: ±0.95 mm
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: –30 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40 with mating plug inserted
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Absolute encoder with 1,024 sine/cosine periods per revolution
- High system accuracy of ±52″ and integral non-linearity typically ±45″
- Operating speed up to 6,000 min⁻¹ for reliable absolute position output
- Binary code output with HIPERFACE® communication interface
- Robust tapered shaft design with resolver support flange
- Operating temperature range from –30 °C to +115 °C
- IP40 enclosure rating with mating plug inserted
- Mean time to dangerous failure (MTTFD) of 235 years according to EN ISO 13849
- Low operating torque of 0.2 Ncm and start-up torque of +0.4 Ncm
- High resistance to shocks (100 g) and vibrations (20 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with encoder mounting and electrical connections to ensure proper operation and safety compliance.
Applications
- Industrial automation for precise position measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
- Safety-related applications requiring high reliability
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Low power consumption (80 mA at 8 V DC) supports energy efficiency
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SRS50-HGV0-K22 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise position feedback.
