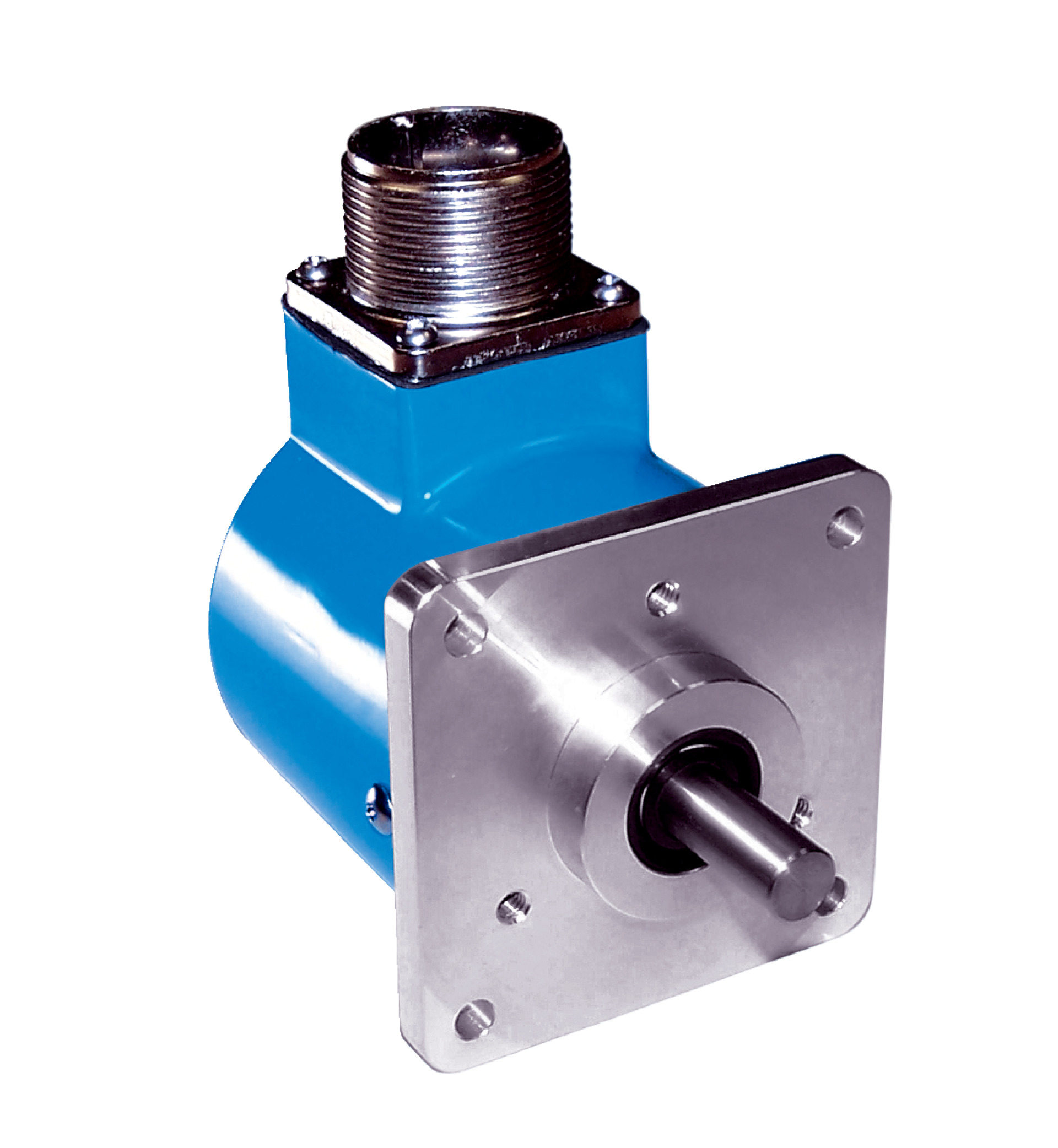

Absolute Rotary Encoder SRS50-HTA0-K21 | High Accuracy ±52″ | HIPERFACE Communication | IP65 Rated | by SICK
The SRS50-HTA0-K21 Absolute Rotary Encoder delivers high precision with an accuracy of ±52″, making it ideal for industrial automation and robotics. With a HIPERFACE communication interface and an IP65 rated enclosure, this encoder is built to withstand harsh environments while providing reliable position feedback for motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 235 years (EN ISO 13849)
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Measuring step: 0.3 ″ with 12-bit interpolation
- Integral non-linearity: ±45 ″ typical
- Differential non-linearity: ±7 ″
- Operating speed: ≤ 6,000 min⁻¹
- Available memory area: 128 Byte
- Type of code: Binary, increasing clockwise rotation
- Connection type: Male connector, MS, 10-pin, radial
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Moment of inertia of rotor: 28.8 gcm²
- Operating torque: 1 Ncm
- Start up torque: +1.5 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating temperature range: up to +75 °C
- Storage temperature range: -40 °C to +85 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with mating plug inserted
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- High system accuracy of ±52 ″
- Absolute position encoding with binary code
- HIPERFACE® communication interface
- Solid shaft with square flange stator coupling
- Operating speed up to 6,000 min⁻¹
- IP65 rated enclosure with mating plug inserted
- Robust against shocks (100 g) and vibrations (20 g, 10 Hz to 2,000 Hz)
- Long ball bearing life of 3.6 x 10⁹ revolutions
- Low current consumption of 80 mA
- Operating temperature range up to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high accuracy rotary position feedback
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SRS50-HTA0-K21 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
