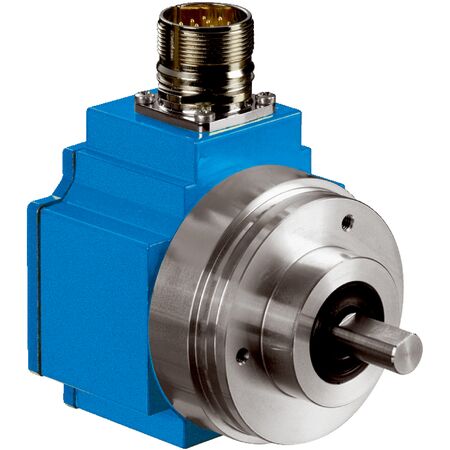

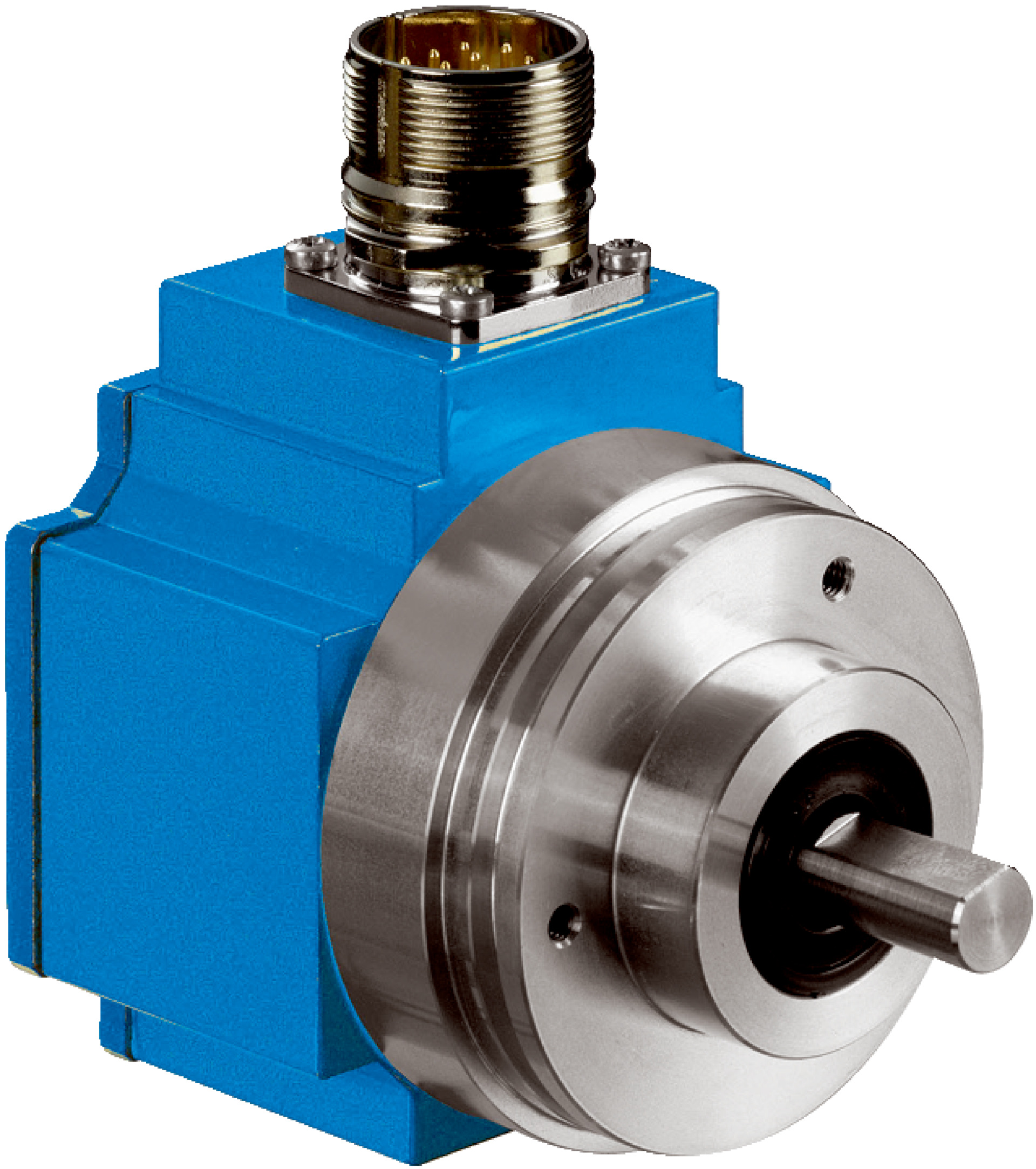

Absolute Rotary Encoder SRS50-HWA0-K22 | High Accuracy ±52″ | 32,768 Steps | IP65 Rated | by SICK
The SRS50-HWA0-K22 Absolute Rotary Encoder delivers high precision with a system accuracy of ±52″ and 32,768 total steps, making it ideal for industrial automation and robotics. With a robust IP65 enclosure and a wide operating temperature range of –30 °C to +85 °C, this encoder ensures reliable performance in demanding environments. Its low current consumption of 80 mA and HIPERFACE® communication interface further enhance its efficiency and usability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRS50-HWA0-K22 | High Accuracy ±52″ | 32,768 Steps | IP65 Rated | by SICK
Brand: SICK
SKU: 1037092
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, rotary position sensor, incremental encoder alternative
Technical Specifications
- MTTFD: 235 years (EN ISO 13849)
- Sine/cosine periods per revolution: 1,024
- Number of absolute ascertainable revolutions: 1
- Total number of steps: 32,768
- Measuring step: 0.3 ″ with 12-bit interpolation
- Integral non-linearity: ±45 ″ typical
- Differential non-linearity: ±7 ″
- Operating speed (absolute position): ≤ 6,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±52 ″
- Type of code: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft diameter: 10 mm solid shaft
- Flange type: Face mount flange
- Weight: ≤ 0.2 kg
- Moment of inertia of rotor: 25 gcm²
- Maximum operating speed: ≤ 12,000 min⁻¹
- Operating torque: 1 Ncm
- Start up torque: +1.5 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –30 °C to +90 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with mating plug inserted
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.2 kg
Key Features
- High system accuracy of ±52 ″
- Absolute position encoder with 32,768 total steps
- Solid shaft with 10 mm diameter and face mount flange
- Operating speed up to 6,000 min⁻¹ for absolute position
- Robust IP65 enclosure rating with mating plug inserted
- Low current consumption of 80 mA
- Communication via HIPERFACE® interface
- Wide operating temperature range from –30 °C to +85 °C
- High resistance to shocks (100 g) and vibrations (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high accuracy rotary position feedback
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SRS50-HWA0-K22 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
