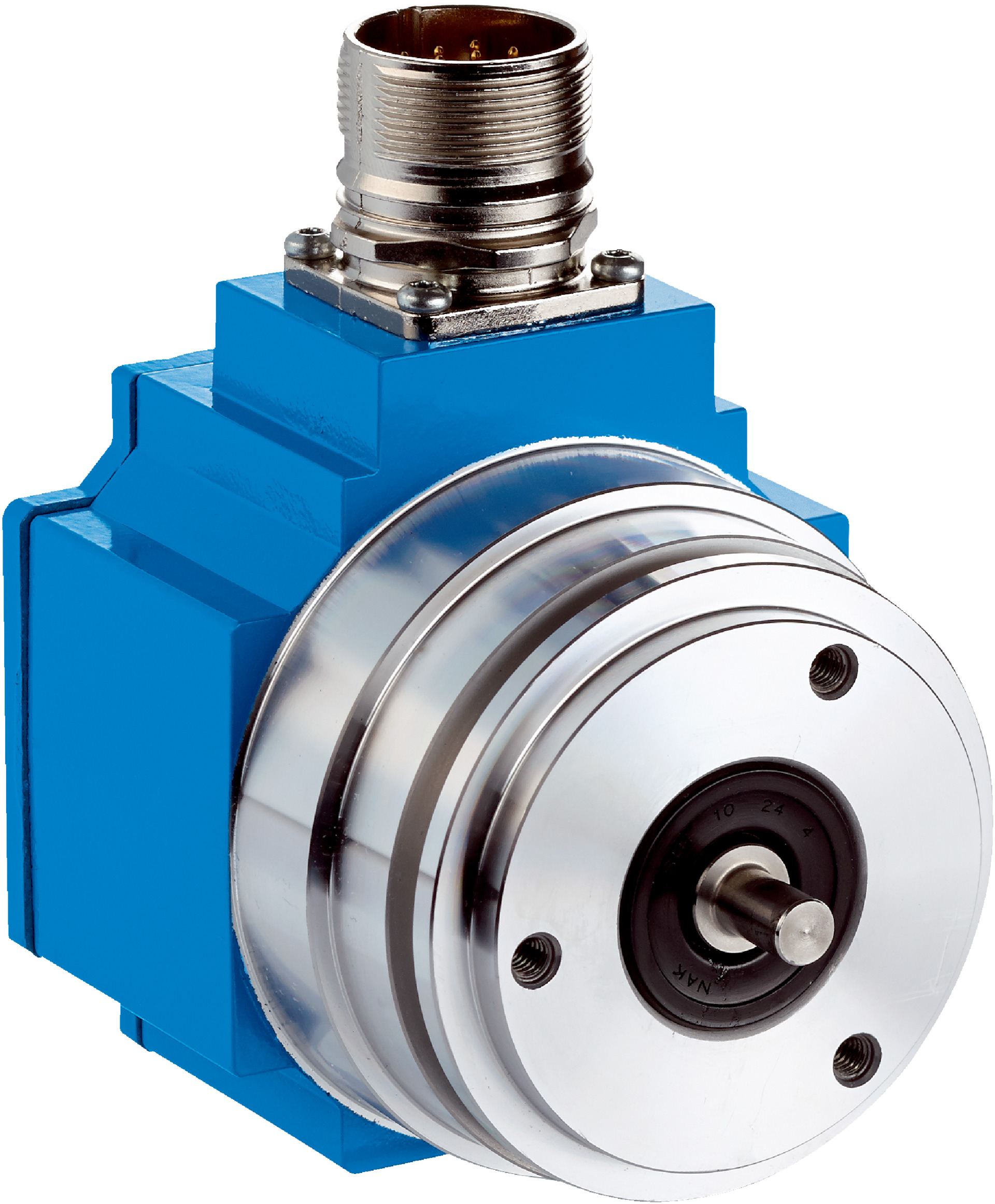

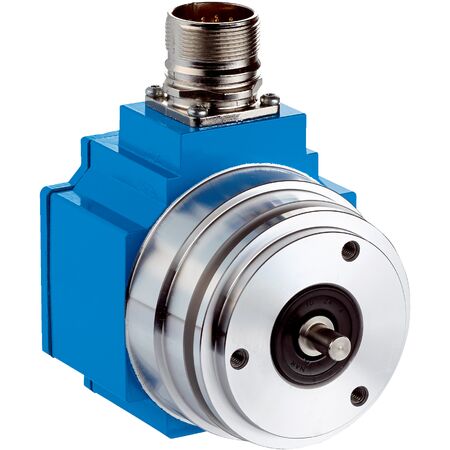

Absolute Rotary Encoder SRS50-HXA0-K22 | High System Accuracy | HIPERFACE Communication | IP65 Enclosure | by SICK
The SRS50-HXA0-K22 Absolute Rotary Encoder delivers high system accuracy of ±52″ and features HIPERFACE communication for precise position measurement. Designed for industrial automation, this encoder operates at speeds up to 12,000 min⁻¹ and is built to withstand harsh environments with an IP65 rating. Ideal for servo motor feedback systems and robotics, it ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRS50-HXA0-K22 | High System Accuracy | HIPERFACE Communication | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1037100
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK encoder SRS50, industrial position encoder
Technical Specifications
- MTTFD: 235 years (EN ISO 13849)
- Sine/cosine periods per revolution: 1,024
- Number of absolute ascertainable revolutions: 1
- Measuring step: 0.3 ″ with 12-bit interpolation
- Integral non-linearity: Typical ±45 ″
- Differential non-linearity: ±7 ″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position, ≤ 12,000 min⁻¹ max
- Available memory area: 1,792 Byte
- System accuracy: ±52 ″
- Code type: Binary, increasing clockwise rotation
- Connection: Male M23, 12-pin radial connector
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft diameter: 6 mm solid shaft
- Moment of inertia: 25 gcm²
- Operating torque: 1 Ncm, startup torque +1.5 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature: –30 °C to +85 °C
- Storage temperature: –30 °C to +90 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with mating plug inserted
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- High system accuracy of ±52 ″
- Absolute position measurement with 32,768 total steps
- HIPERFACE® communication interface
- Solid shaft with 6 mm diameter and servo flange stator coupling
- Operating speed up to 12,000 min⁻¹
- Robust IP65 enclosure rating with mating plug inserted
- Wide operating temperature range from –30 °C to +85 °C
- Low current consumption of 80 mA
- High resistance to shocks (100 g) and vibrations (20 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
- Factory automation requiring high accuracy encoders
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SRS50-HXA0-K22 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
