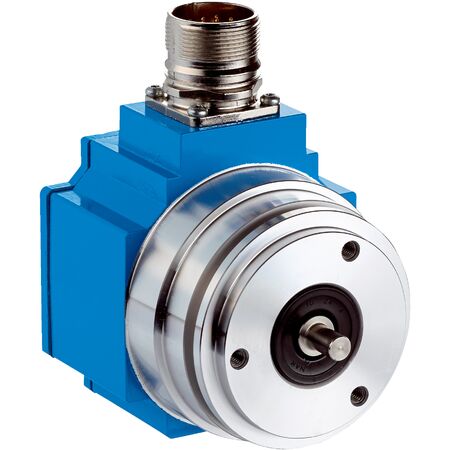

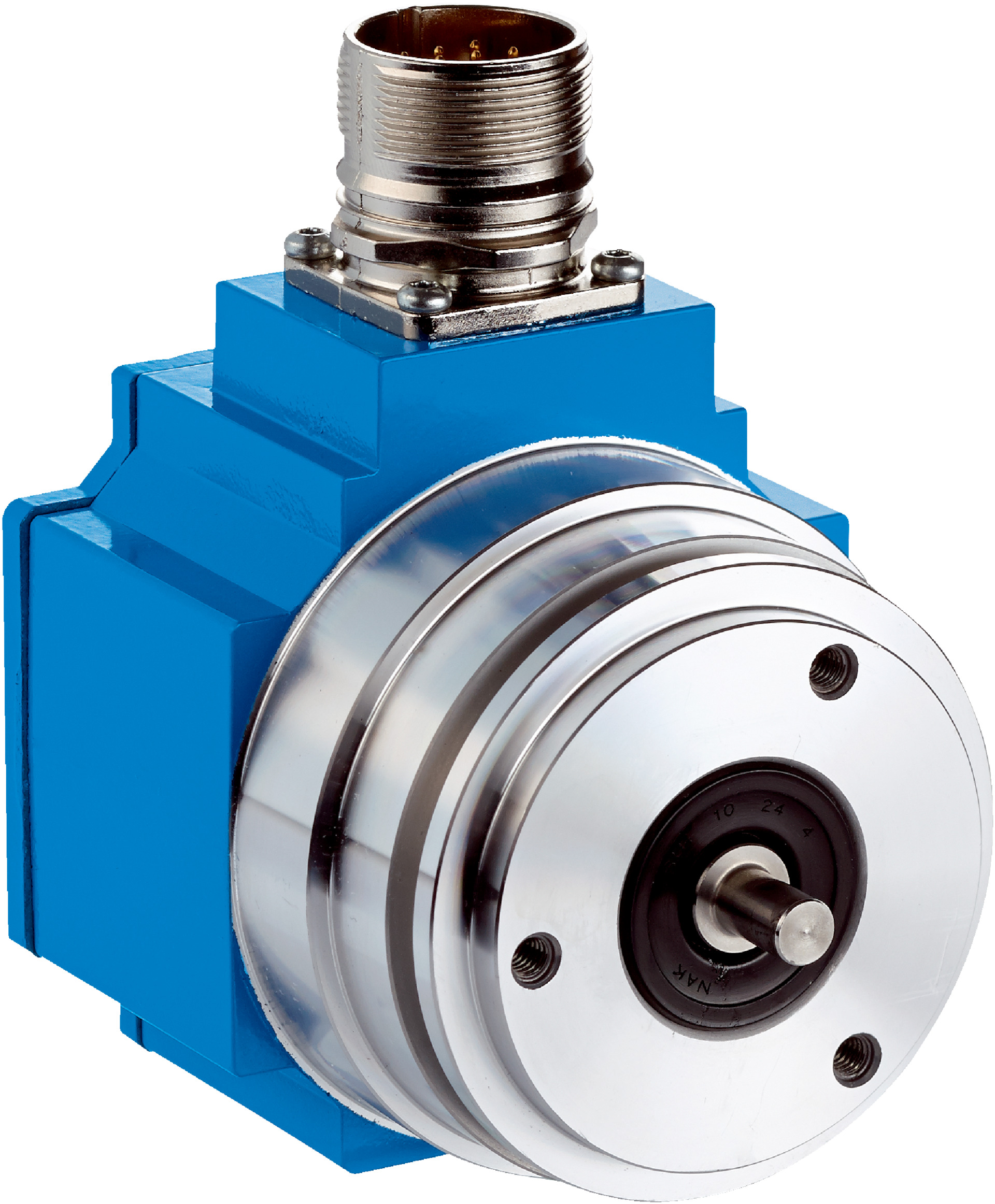

Absolute Rotary Encoder SRS50-HXV0-K22 | High Accuracy ±52″ | IP65 Rated | by SICK
The SRS50-HXV0-K22 Absolute Rotary Encoder delivers high precision with a system accuracy of ±52″ and an operating speed of up to 6,000 min⁻¹. Designed for industrial automation, robotics, and servo motor feedback systems, this encoder features a durable IP65 rated enclosure and long-life ball bearings, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Absolute Rotary Encoder SRS50-HXV0-K22 | High Accuracy ±52″ | IP65 Rated | by SICK
Brand: SICK
SKU: 1037102
Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK rotary encoder, position encoder
Technical Specifications
- MTTFD: 235 years (EN ISO 13849)
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Measuring step: 0.3 ″ with 12-bit interpolation
- Integral non-linearity: ±45 ″ typical
- Differential non-linearity: ±7 ″
- Available memory area: 1,792 Byte
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Moment of inertia of rotor: 25 gcm²
- Operating torque: 1 Ncm
- Start up torque: +1.5 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Resistance to shocks: 100 g, 10 ms
- Resistance to vibrations: 20 g, 10 Hz to 2,000 Hz
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with mating plug inserted
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Absolute encoder with binary code output
- High system accuracy of ±52 ″
- Operating speed up to 6,000 min⁻¹
- Solid shaft with 6 mm diameter
- HIPERFACE® communication interface
- IP65 rated enclosure with mating plug inserted
- Long life ball bearings with 3.6 x 10⁹ revolutions
- Operating temperature range from –30 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with encoder integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SRS50-HXV0-K22 Absolute Encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
