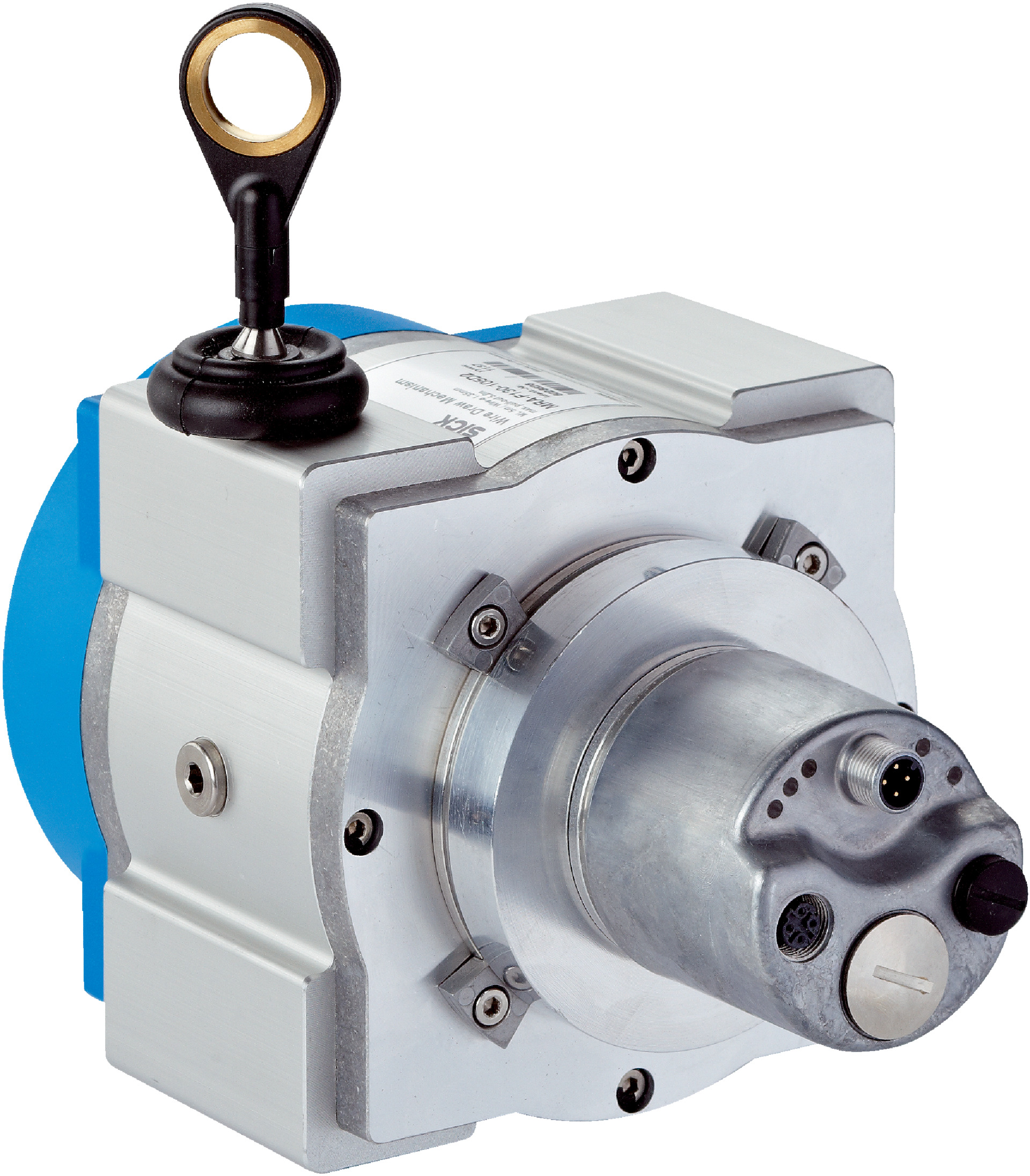

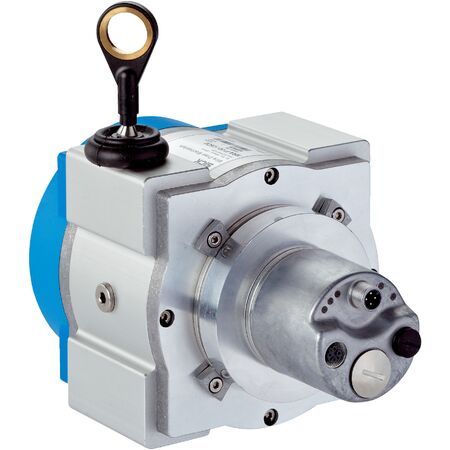

Absolute Wire Draw Encoder BTF13-I1BM0599 | 0.001 mm Resolution | 5 m Measurement Range | EtherNet/IP™ Interface | by SICK
The Absolute Wire Draw Encoder BTF13-I1BM0599 offers exceptional precision with a resolution of 0.001 mm and a measurement range of up to 5 meters. Designed for industrial automation, this encoder features a robust IP64/IP67 rated housing and a highly flexible stainless steel measuring wire, making it ideal for safety monitoring and process control systems that demand high accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: EtherNet/IP™
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Enclosure rating: IP64 (mounted mechanic IP67, Encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 5 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Highly flexible stainless steel measuring wire
- EtherNet/IP™ communication interface with programmable configuration
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from –30 °C to +70 °C
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and EtherNet/IP communication protocols to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Process control systems requiring high accuracy
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 3 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-I1BM0599 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
