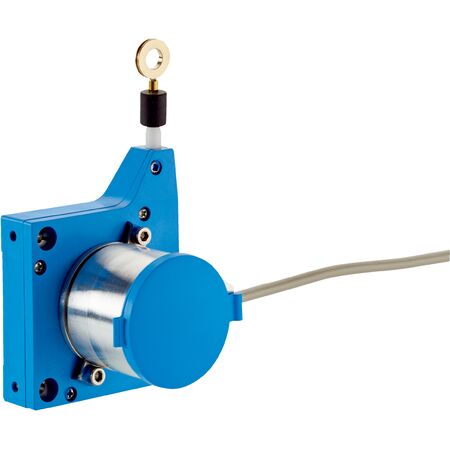

Absolute Wire Draw Encoder | 0.04 mm Resolution | SSI Communication | IP50/IP65 Rated | by SICK
The Absolute Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a high measurement accuracy of 0.04 mm resolution and a robust plastic Noryl housing. With an operating temperature range of -30 °C to +70 °C and an impressive lifespan of approximately 1,000,000 cycles, this encoder is perfect for safety-related applications requiring reliable wire draw measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 1.25 m
- Resolution: 0.04 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Supply voltage: 19 V DC to 33 V DC
- Operating current: ≤ 80 mA
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A/PA 12-sheathed)
- Measuring wire diameter: 0.45 mm
- Spring return force: 1 N to 1.4 N
- Length of wire pulled out per revolution: 150 mm
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 10 m/s²
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (device), IP65 (mounted mechanic)
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.18 kg
Key Features
- Special device with radial cable, 5 m length
- Absolute encoder with SSI communication interface
- High measurement accuracy with 0.04 mm resolution
- Robust plastic Noryl housing for wire draw mechanism
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating IP50, mounted mechanic IP65
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and control systems
- Position measurement in machinery
- Safety-related applications requiring precise wire draw measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (≤ 80 mA)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG05-L1KMS01 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
