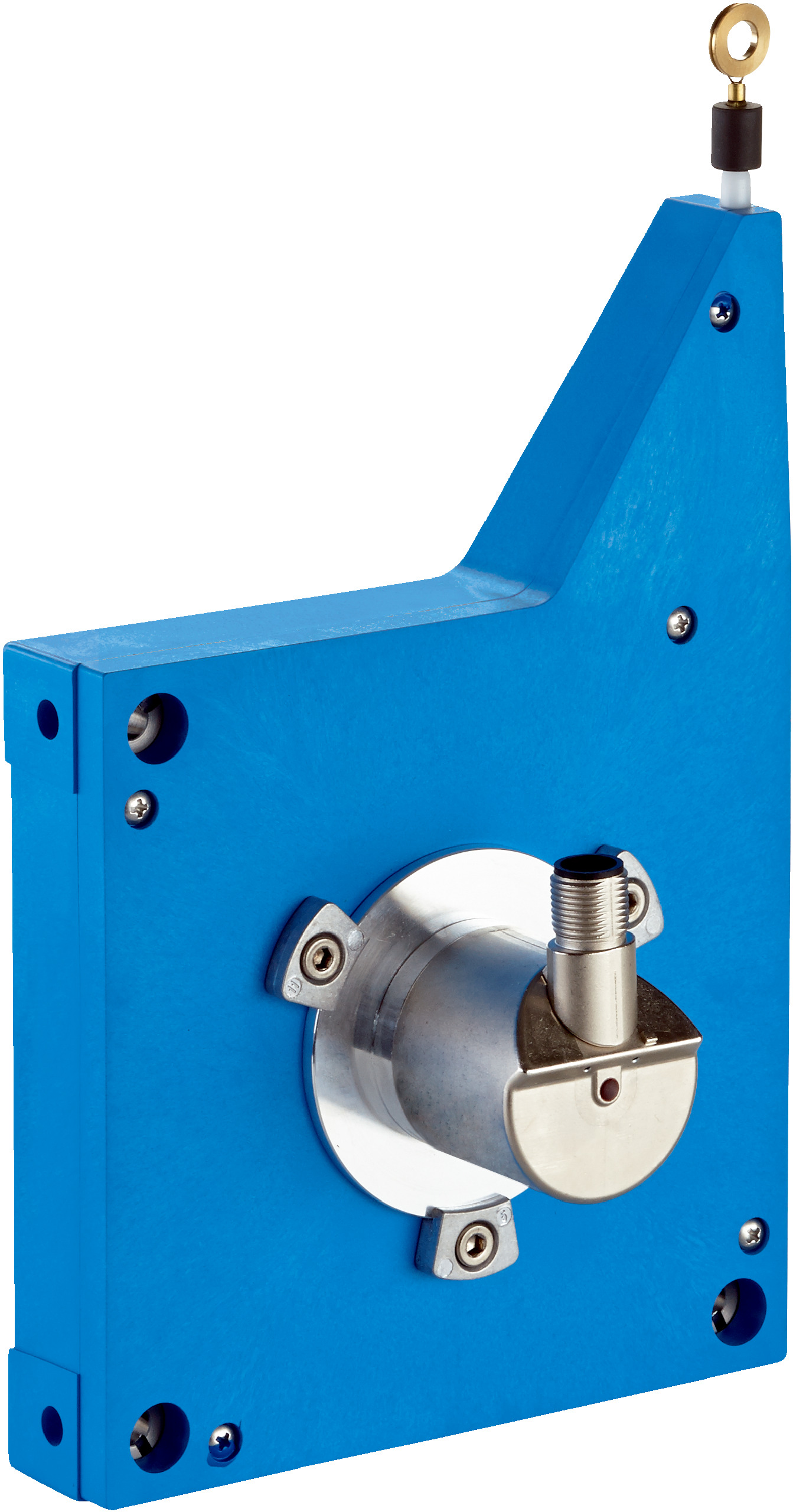

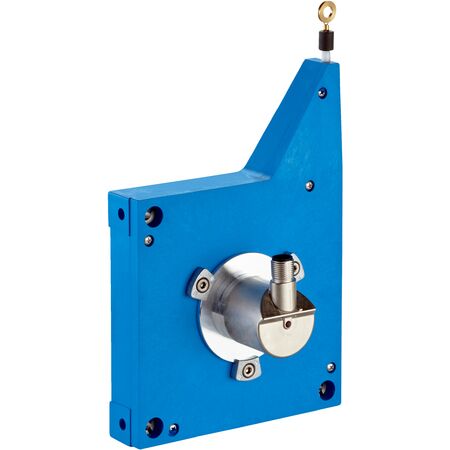

Absolute Wire Draw Encoder | 0 to 5 m Measurement Range | 0.02 mm Resolution | IP67 Rated | by SICK
The Absolute Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a measurement range of 0 to 5 m and a resolution of 0.02 mm. With robust mechanics and an IP67 rating, it ensures reliable performance in challenging environments, making it ideal for machine tool feedback systems and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Operating temperature range: –30 °C to +70 °C
- Enclosure rating: IP50 (device), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.92 kg
Key Features
- Customized encoder AHM36A-S3CC000S06 with preset baud rate of 500 kbit/s and node ID 32
- Absolute encoder technology for precise position feedback
- Measurement range of 0 m to 5 m with 0.02 mm resolution
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- CANopen communication interface with programmable/configurable options
- Robust mechanics with plastic Noryl housing and highly flexible stainless steel measuring wire
- Operating temperature range from –30 °C to +70 °C
- IP50 enclosure rating, mounted mechanic IP66, encoder IP67 for protection against dust and water
- Low power consumption ≤ 1.5 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position measurement
- Machine tool feedback systems
- Robotics and conveyor systems requiring accurate wire draw measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK BCG13-C1QM05S6 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
