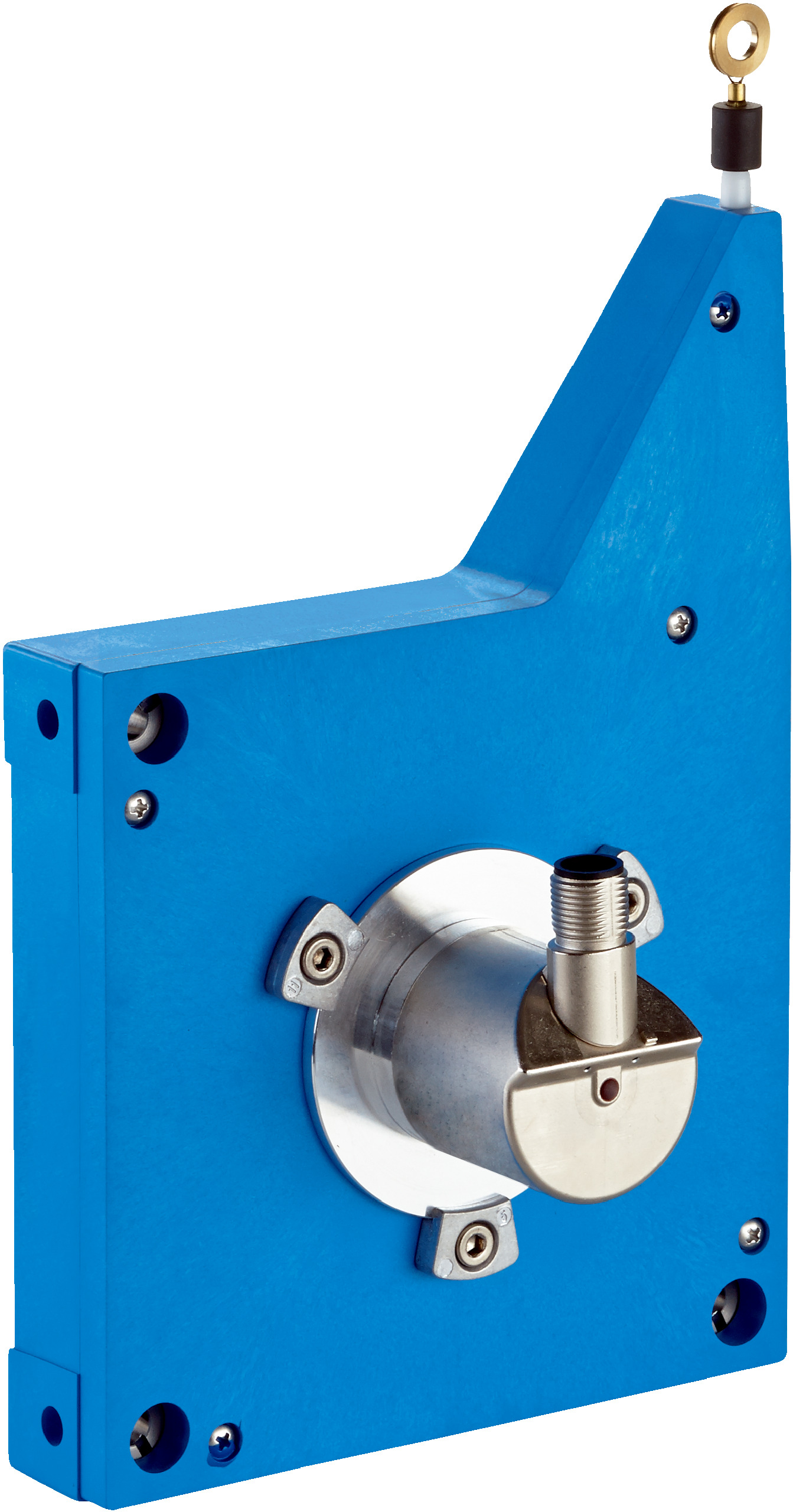

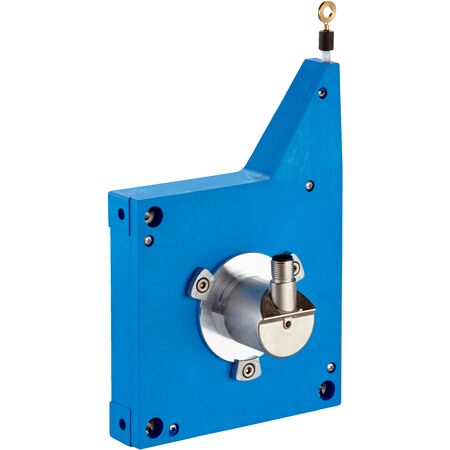

Absolute Wire Draw Encoder | 0 to 5 m Measurement Range | 0.05 mm Resolution | IP67 Rated | by SICK
The Absolute Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a measurement range of 0 to 5 meters and a resolution of 0.05 mm. With a robust IP67-rated housing and CANopen communication interface, it's perfect for machine tool monitoring, robotics, and conveyor systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.05 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Life of wire draw mechanism: approx. 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (device), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.92 kg
Key Features
- Absolute encoder with CANopen communication interface
- Measurement range of 0 to 5 meters with 0.05 mm resolution
- Highly flexible stranded stainless steel measuring wire
- Programmable and configurable device
- Robust housing with IP50 rating, mounted mechanic IP66, encoder IP67
- Long life wire draw mechanism with approximately 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial automation and electrical wiring is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Machine tool monitoring and control
- Robotics and conveyor systems requiring accurate linear measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.5 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BCG13-C1QM05S01 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise linear measurement applications.
