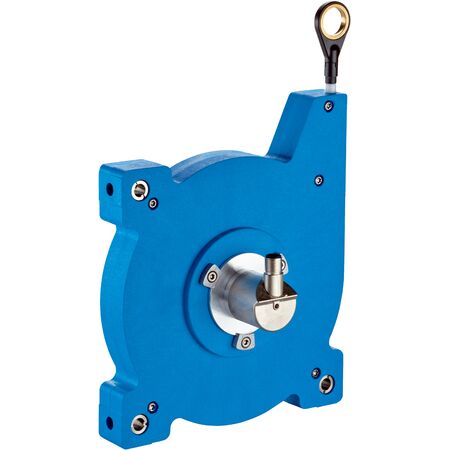

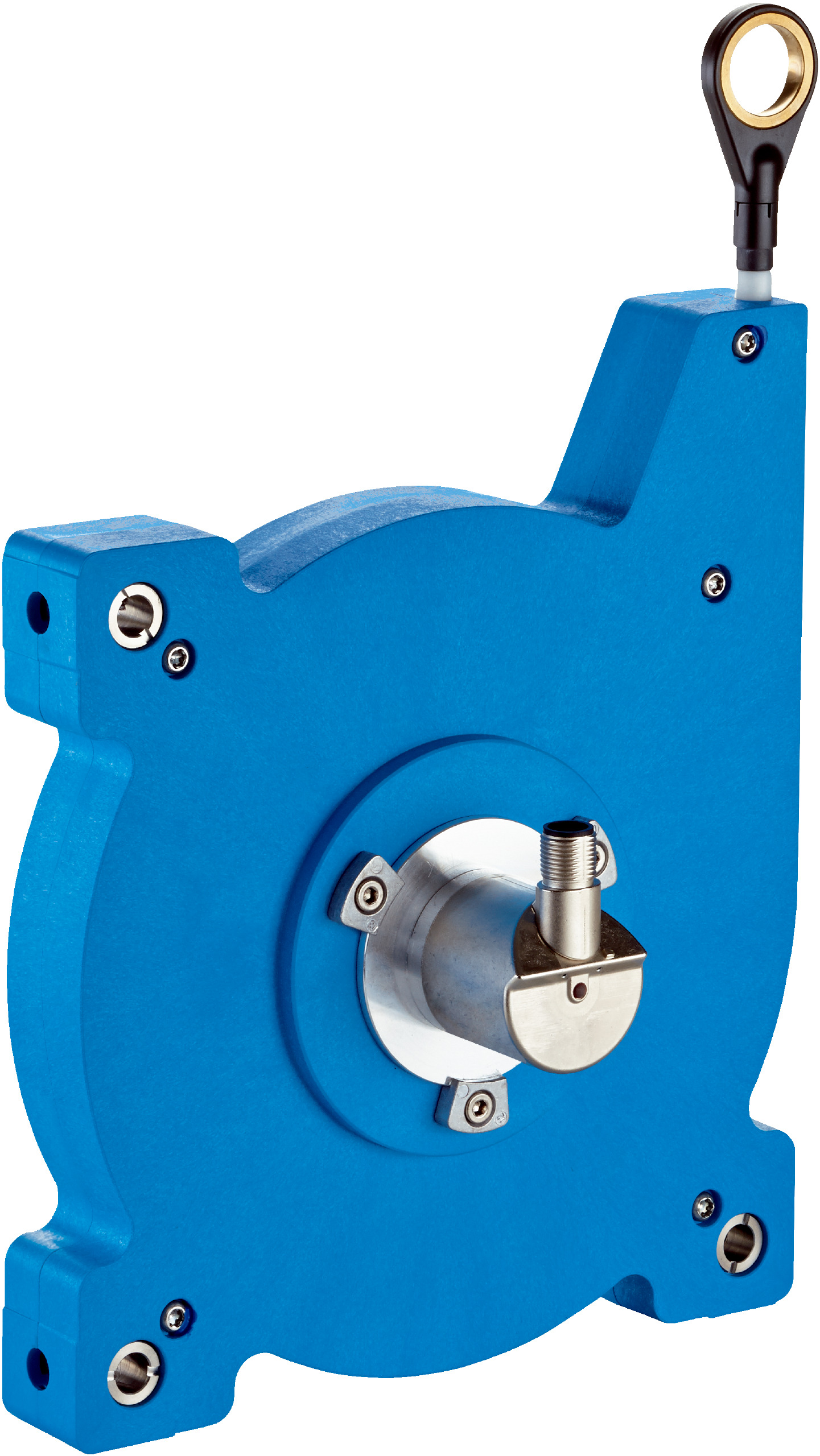

Absolute Wire Draw Encoder | 10 m Measurement Range | 0.03 mm Resolution | IP67 Protection | by SICK
The Absolute Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a measurement range of up to 10 m and a high resolution of 0.03 mm. With robust construction and an IP67 rating, it ensures reliable performance in harsh environments, making it ideal for machinery and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SAE J1939
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (mechanic IP66, encoder IP67)
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.02 kg
Key Features
- Absolute encoder with SAE J1939 communication interface
- High measurement range up to 10 m
- High resolution of 0.03 mm with repeatability ≤ 0.2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with IP66 mounted mechanic and IP67 encoder protection
- Programmable and configurable interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical wiring standards to ensure safety and compliance.
Applications
- Industrial automation and safety systems
- Position measurement in machinery
- Process control requiring precise wire draw measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG19-J1QM1064 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise position measurement.
