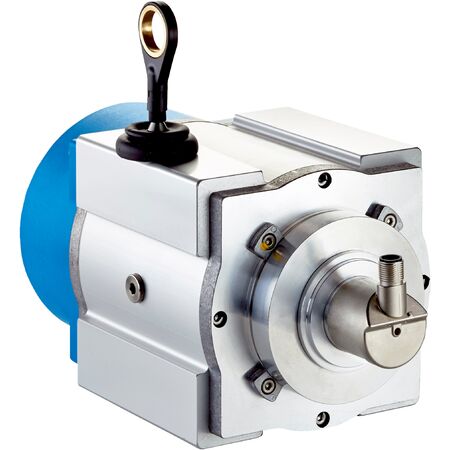

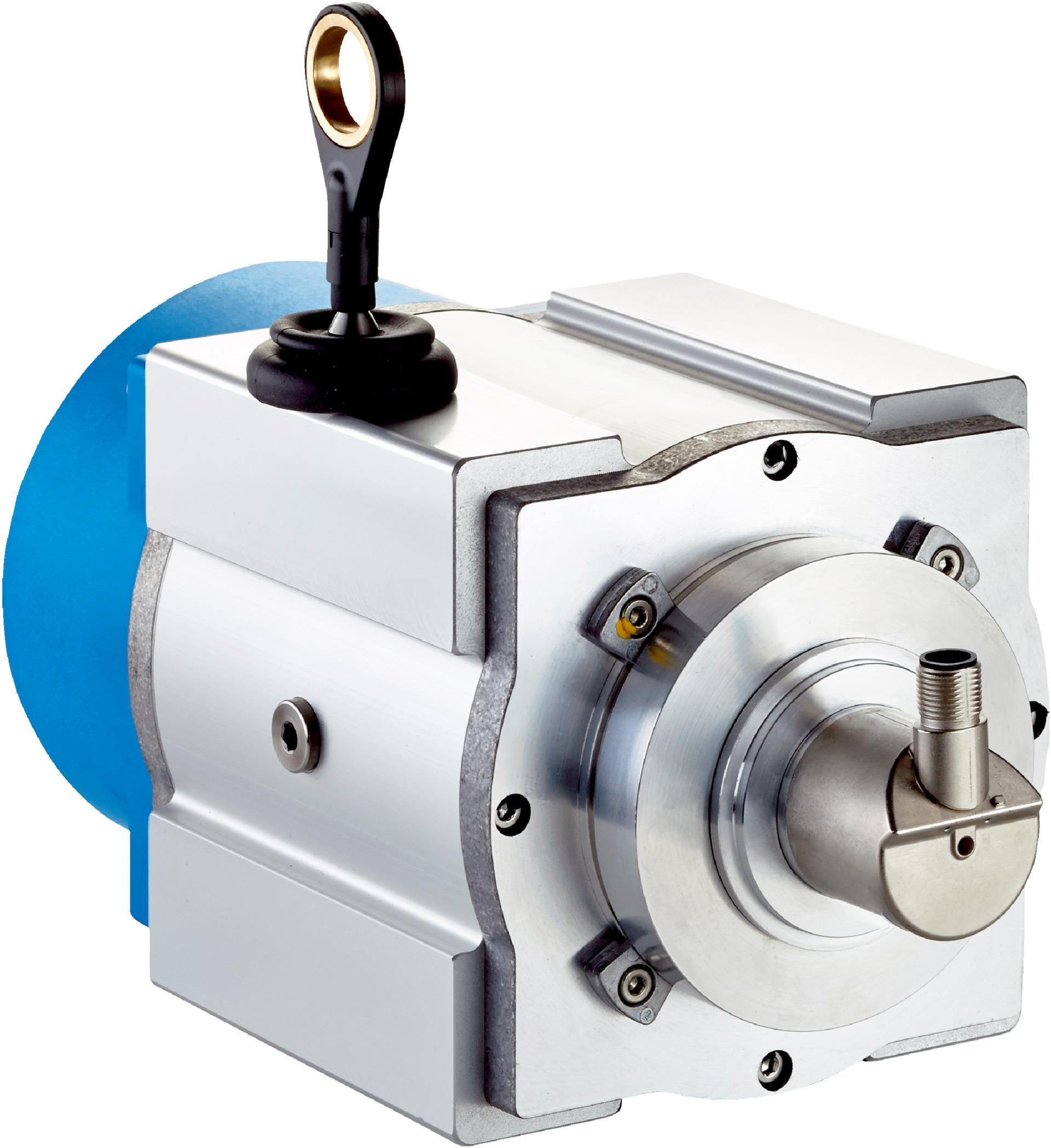

Absolute Wire Draw Encoder | 10m Measurement Range | 0.04mm Resolution | IP64 to IP67 Protection | by SICK
The Absolute Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a measurement range of up to 10 meters and a high resolution of 0.04 mm. With a robust aluminum and plastic housing offering IP64 to IP67 protection, this encoder ensures reliability in harsh environments. Ideal for safety-related monitoring applications, it boasts a long life expectancy of approximately 1,000,000 cycles, making it a durable choice for your machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoder
- Resolution: 0.04 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: CANopen
- Connection type: Male connector, M12, 5-pin
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Life expectancy: Approximately 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.62 kg
Key Features
- Absolute encoder with CANopen communication interface
- High measurement range up to 10 meters
- High resolution of 0.04 mm with repeatability ≤ 1.5 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Programmable and configurable device
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation and control systems
- Position measurement in machinery
- Safety-related monitoring applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-C1QM10S01 is available for immediate purchase, ideal for industrial automation and safety-related position measurement applications.
