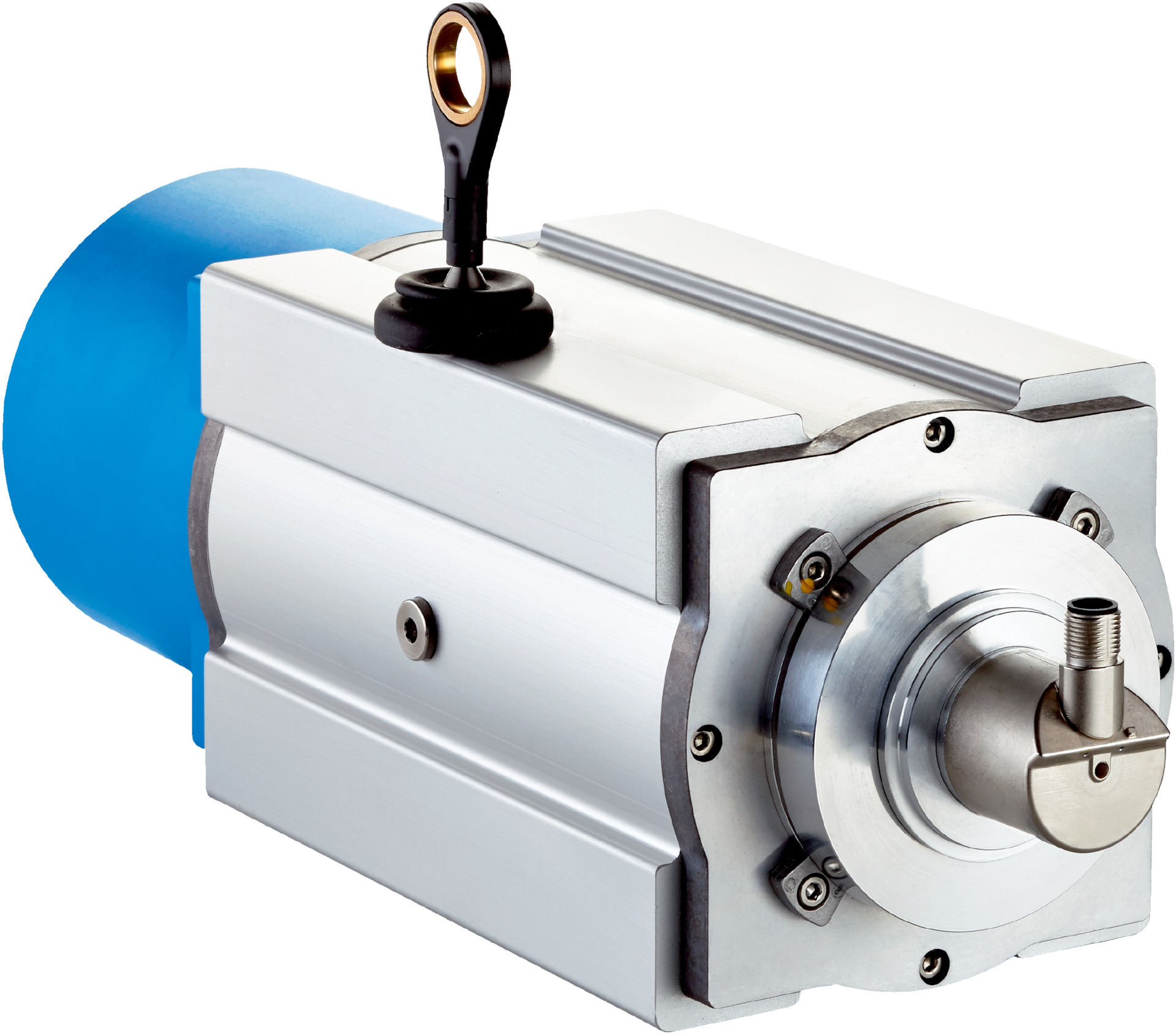

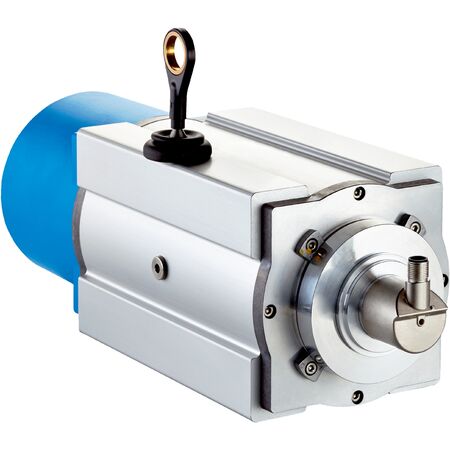

Absolute Wire Draw Encoder | 30m Measurement Range | 0.02mm Resolution | IP64 to IP67 Protection | by SICK
The Absolute Wire Draw Encoder is designed for precise wire length measurement in industrial automation, featuring a measurement range of up to 30 meters and a high resolution of 0.02 mm. With robust IP64 to IP67 protection and a long life mechanism rated for approximately 1,000,000 cycles, it's perfect for heavy machinery monitoring and safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 30 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: SAE J1939
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 15 m/s²
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.32 kg
Key Features
- Absolute encoder with SAE J1939 communication interface
- High measurement range up to 30 meters
- High resolution of 0.02 mm with repeatability ≤ 2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Heavy machinery monitoring and control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-J1QM3064 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
