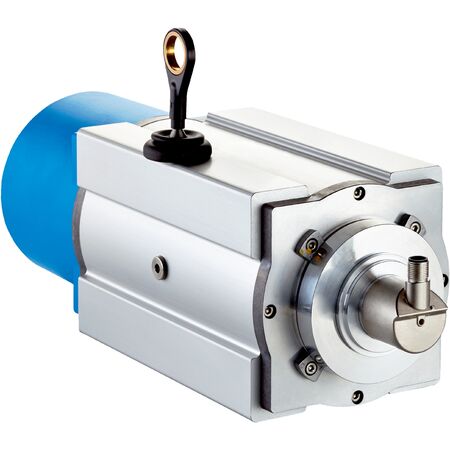

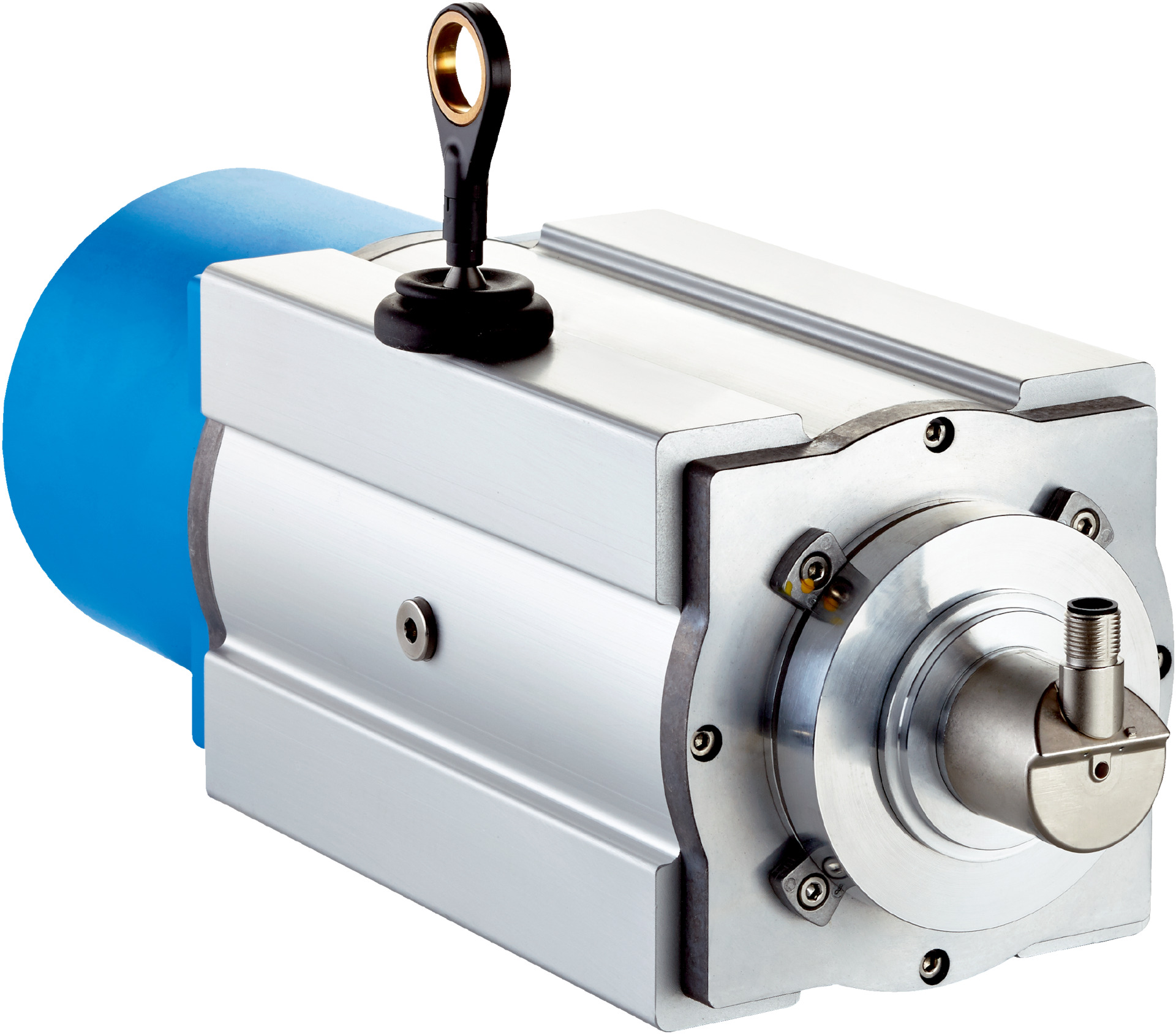

Absolute Wire Draw Encoder | 30m Measurement Range | 0.02mm Resolution | IP64 to IP67 Protection | by SICK
The Absolute Wire Draw Encoder is designed for precise linear position measurement in industrial automation. With a measurement range of up to 30 meters and a high resolution of 0.02 mm, it ensures accuracy and reliability. Ideal for machine safety and monitoring systems, this encoder features robust IP64 to IP67 protection and a long service life of approximately 1,000,000 cycles, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 30 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401, V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: -20 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.32 kg
Key Features
- Absolute encoder with IO-Link communication interface
- High measurement range up to 30 meters
- High resolution of 0.02 mm with repeatability ≤ 2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Programmable and configurable via IO-Link
- Long service life with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor integration to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise linear position measurement
- Machine safety and monitoring systems
- Process control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-Q1RM3S01 is available for immediate purchase, ideal for industrial automation and safety applications requiring precise linear position measurement.
