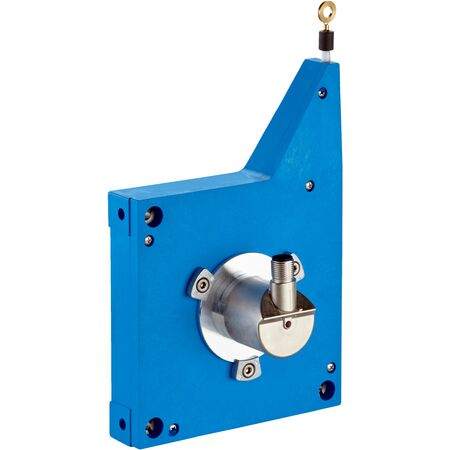

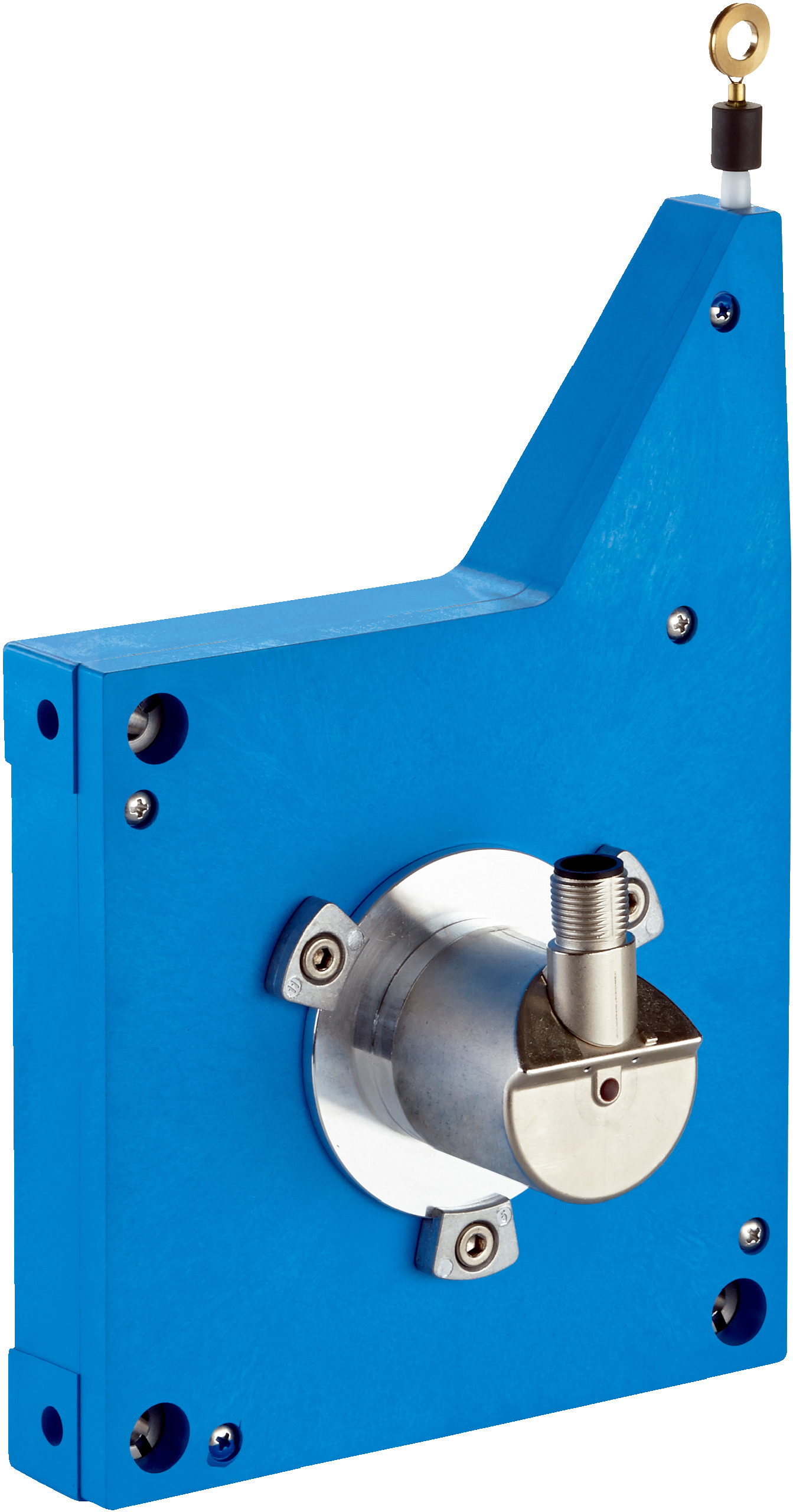

Absolute Wire Draw Encoder | 5m Measurement Range | 0.02mm Resolution | IP67 Rated | by SICK
The Absolute Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a measurement range of up to 5 meters and a high resolution of 0.02 mm. With a robust construction and an IP67 rating, this encoder is perfect for safety-related monitoring and control systems requiring high accuracy, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Mounted encoder model: AHM36 CANopen
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 50mm x 150mm x 130mm
- Weight: 0.92 kg
Key Features
- Absolute encoder with CANopen communication interface
- High measurement range up to 5 meters
- High resolution of 0.02 mm and repeatability ≤ 0.2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and industrial sensor integration to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement and control systems requiring high accuracy
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG13-C1QM0543 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
