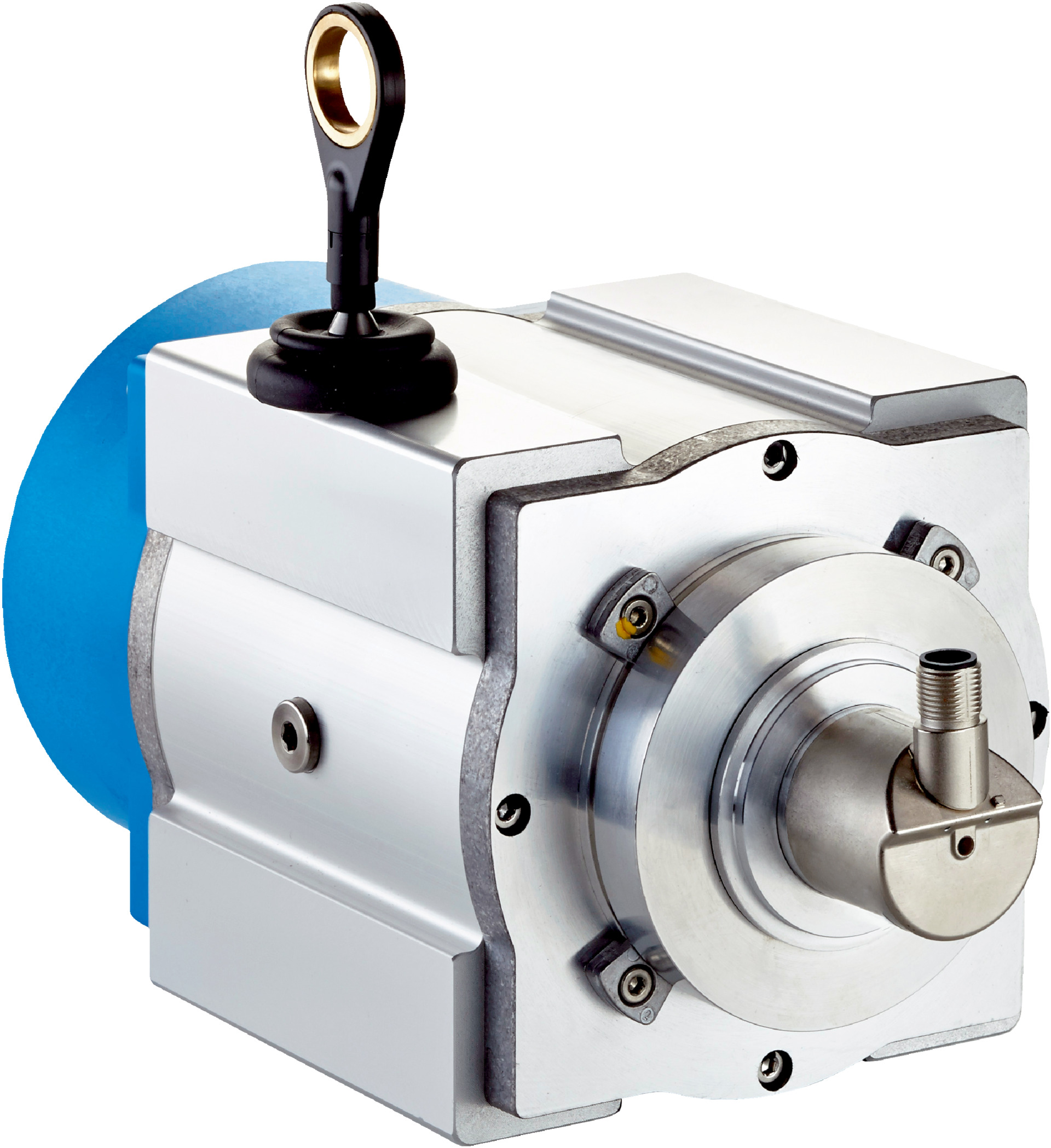

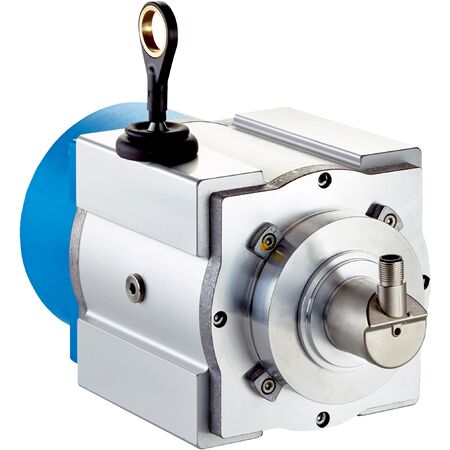

Absolute Wire Draw Encoder BTF13-A1NM1024 | 10m Measurement Range | 0.04mm Resolution | IP64 to IP67 Protection | by SICK
The Absolute Wire Draw Encoder BTF13-A1NM1024 is designed for precise position measurement in industrial automation. With a measurement range of up to 10 meters and a high resolution of 0.04 mm, it ensures reliable feedback for machine control systems. Built with robust aluminum housing and an IP64 to IP67 rating, this encoder is perfect for safety-related applications, offering durability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: SSI
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 8-pin, universal
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Housing material: Aluminum (anodised), plastic
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Mounted encoder model: AHM36 SSI
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.62 kg
Key Features
- Absolute encoder with SSI communication interface
- High measurement range up to 10 meters
- High resolution of 0.04 mm with repeatability ≤ 1.5 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine control systems with wire draw measurement needs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-A1NM1024 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
