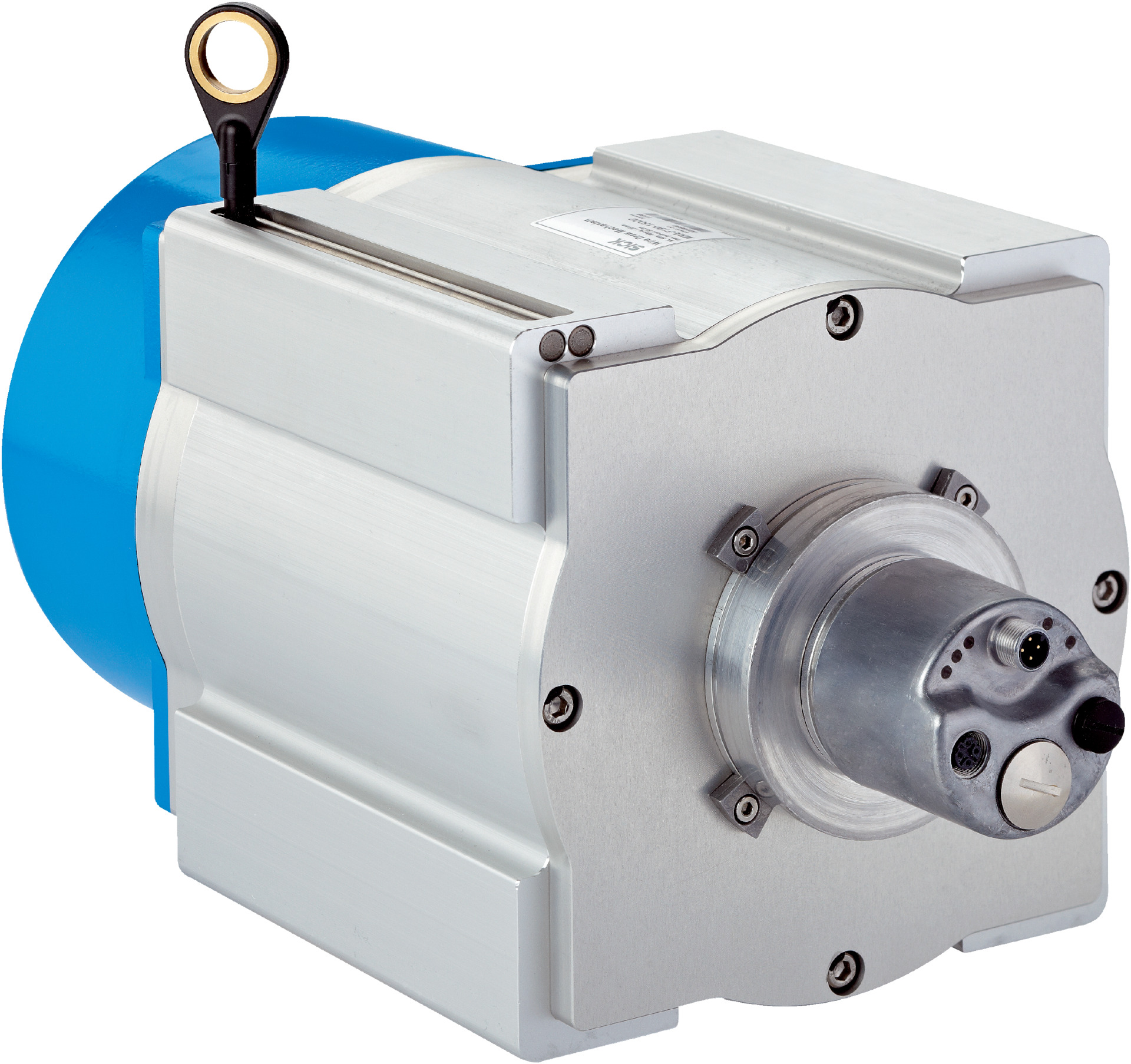

Absolute Wire Draw Encoder BTF19-I1BM5099 | 0.002 mm Resolution | EtherNet/IP Communication | IP67 Rated | by SICK
The Absolute Wire Draw Encoder BTF19-I1BM5099 offers exceptional precision with a resolution of 0.002 mm and a measurement range of up to 50 m. Designed for industrial automation, it features EtherNet/IP communication for seamless integration into machine control systems. With a robust aluminum housing and an operating temperature range of -30 °C to +70 °C, this encoder is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 80 years (EN ISO 13849-1)
- Measurement range: 0 m to 50 m
- Resolution: 0.002 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: EtherNet/IP™
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Measuring wire diameter: 1.35 mm
- Weight of measuring wire: 7.1 g/m
- Housing material: Aluminum anodized and nickel-plated die cast
- Spring return force: 18 N to 37 N
- Length of wire pulled out per revolution: 491.5 mm
- Wire acceleration: 18 m/s²
- Operating speed: 4 m/s
- Mounted encoder model: AFM60 EtherNet/IP
- Life of wire draw mechanism: Typically 1,000,000 cycles
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP31 (mechanic), IP67 (encoder)
- Operating temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 300mm x 500mm x 300mm
- Weight: 16.7 kg
Key Features
- Absolute encoder with high resolution of 0.002 mm
- Measurement range up to 50 m
- EtherNet/IP communication interface
- Highly flexible stranded stainless steel measuring wire
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 18 N and 37 N
- Operating temperature range from -30 °C to +70 °C
- IP31 enclosure rating for mounted mechanic and IP67 for encoder
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
- Programmable and configurable device
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial electrical and automation equipment to ensure compliance with safety and operational standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine control systems with Ethernet/IP communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF19-I1BM5099 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
