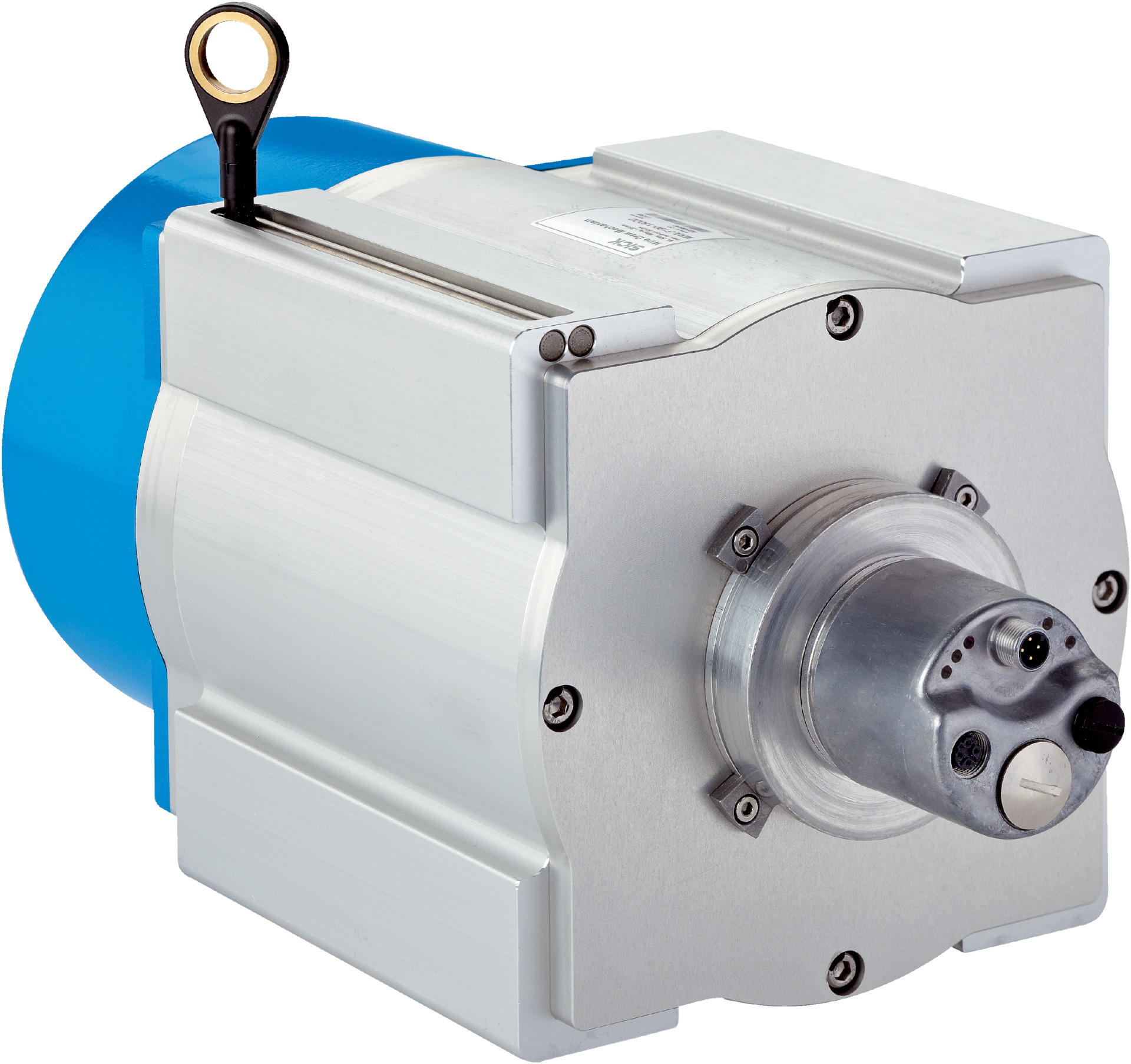

Absolute Wire Draw Encoder BTF19-N1BM5099 | PROFINET Interface | 0.002 mm Resolution | 50 m Measurement Range | by SICK
The Absolute Wire Draw Encoder BTF19-N1BM5099 is designed for precise wire draw measurement in industrial automation. With a measurement range of up to 50 m and a high resolution of 0.002 mm, it ensures accuracy and reliability in safety-critical applications. Built for durability, it features a robust aluminum housing and operates within a temperature range of -30 °C to +70 °C, making it ideal for various machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 50 m
- Encoder type: Absolute encoders
- Resolution: 0.002 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: PROFINET
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Wire acceleration: 18 m/s²
- Mounted encoder model: AFM60 PROFINET
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP31 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 16.7 kg
Key Features
- Absolute encoder with PROFINET communication interface
- High measurement range up to 50 m
- High resolution of 0.002 mm
- Repeatability ≤ 5 mm and linearity ≤ ± 2 mm
- Robust aluminum housing with anodized and nickel-plated finishes
- Spring return force between 18 N and 37 N
- Operating temperature range from –30 °C to +70 °C
- IP31 enclosure rating, IP67 for mounted mechanic
