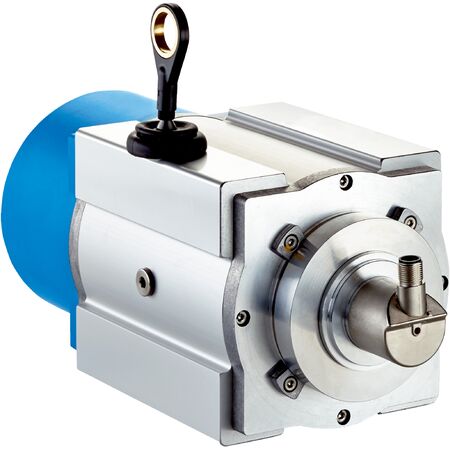

Absolute Wire Draw Encoder | CANopen Interface | 20m Measurement Range | High Repeatability | by SICK
The Absolute Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a measurement range of up to 20 meters and a high repeatability of ≤ 2 mm. With a robust aluminum and plastic housing rated IP64 to IP67, it ensures reliability in safety-related applications. Ideal for machine control systems, this encoder operates efficiently within a temperature range of –30 °C to +70 °C, making it a versatile choice for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Resolution: 0.04 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: CANopen
- Connection type: Male connector, M12, 5-pin
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 30 m/s²
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.12 kg
Key Features
- Absolute encoder with CANopen communication interface
- Programmable and configurable for versatile use
- High measurement range up to 20 meters
- High repeatability ≤ 2 mm and linearity ≤ ± 2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Operating temperature range from –30 °C to +70 °C
- Low power consumption ≤ 1.5 W
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial electrical and automation equipment to ensure safety and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine control systems with absolute encoder needs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-C1QM20S01 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position measurement.
