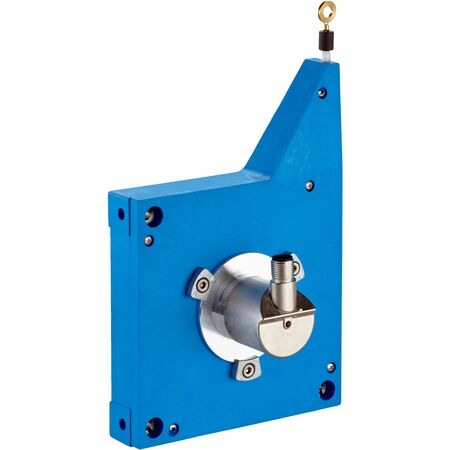

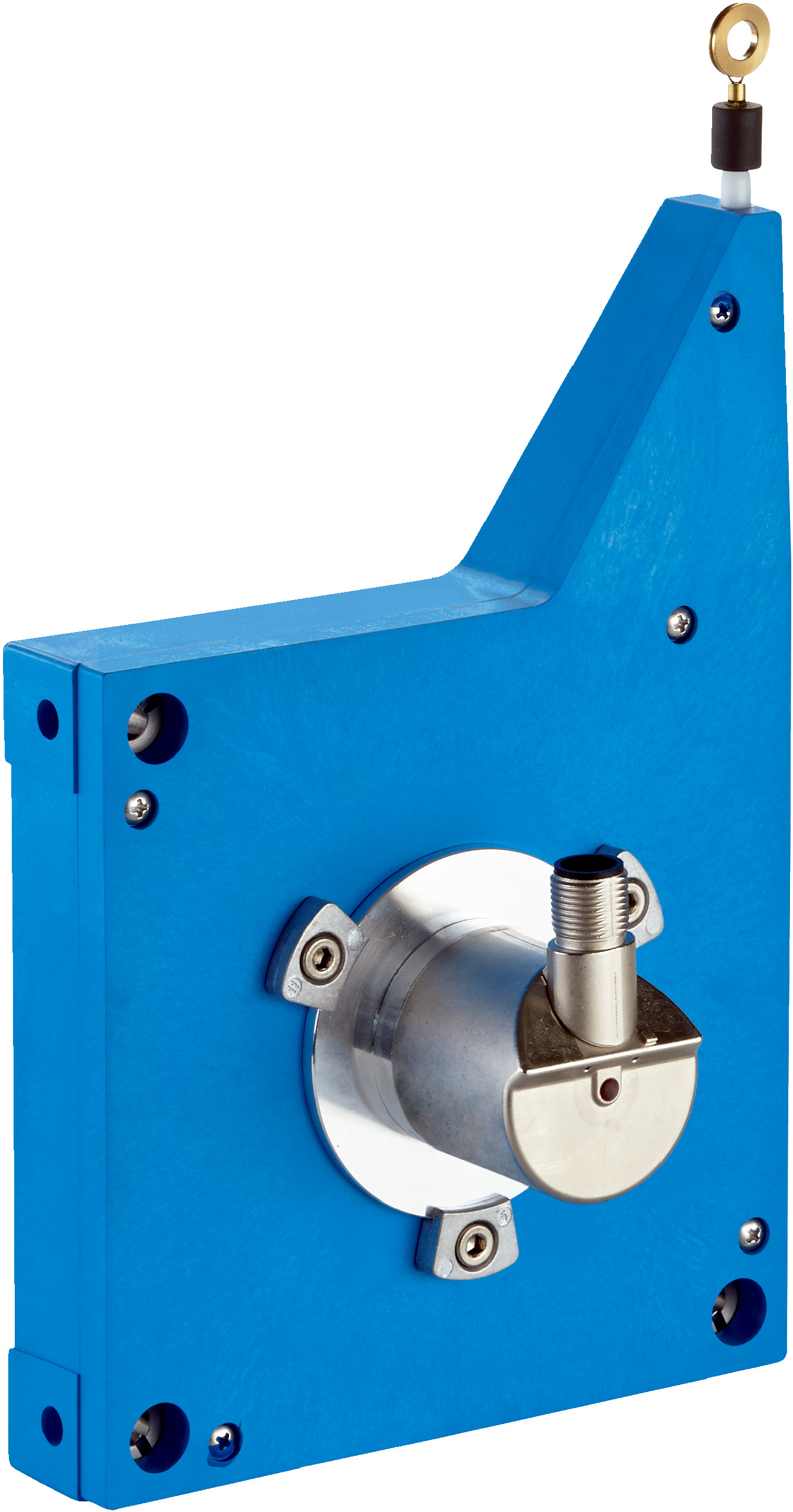

Absolute Wire Draw Encoder | IO-Link Communication | 0.02 mm Resolution | IP67 Protection | by SICK
The Absolute Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a high measurement resolution of 0.02 mm and robust IP67 protection. Ideal for safety-related applications, this encoder ensures reliable feedback with a life expectancy of approximately 1,000,000 cycles, making it perfect for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Mounted encoder model: AHM36 IO-Link Advanced
- Operating temperature range: –20 °C to +70 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP50 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 0.92 kg
Key Features
- Absolute encoder with IO-Link communication interface
- High measurement resolution of 0.02 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from –20 °C to +70 °C
- IP50 enclosure rating with IP66 mounted mechanic and IP67 encoder protection
- Spring return force between 4.5 N and 7 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BCG13-Q1PM0562 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
