Absolute Wire Draw Encoder | IO-Link Communication | 50m Measurement Range | 0.03mm Resolution | by SICK

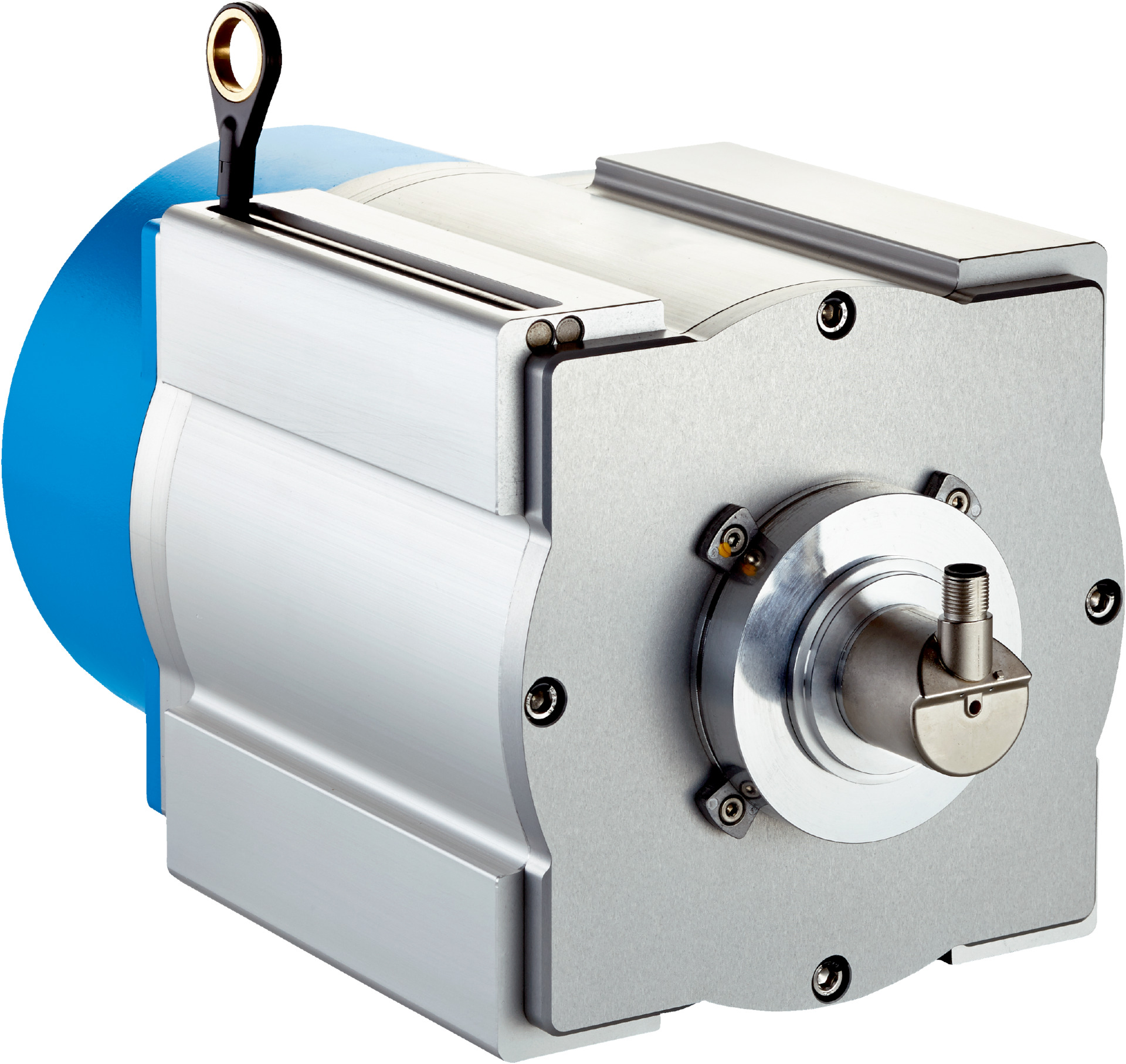

The Absolute Wire Draw Encoder is designed for precise position measurement in industrial automation, featuring a high measurement range of up to 50 meters and a resolution of 0.03 mm. With robust aluminum housing and an IP67 rating, it ensures durability and reliability in safety-related monitoring applications, making it ideal for process control and machinery safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 50 m
- Resolution: 0.03 mm
- Repeatability: ≤ 5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 10 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 18 N to 37 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Wire acceleration: 18 m/s²
- Mounted encoder: AHM36 IO-Link Advanced
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP31 (device), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature range: -20 °C to +70 °C
- Dimensions (H x L x W): 200mm x 300mm x 200mm
- Weight: 16.62 kg
Key Features
- Absolute encoder with IO-Link communication interface
- High measurement range up to 50 meters
- High resolution of 0.03 mm with repeatability ≤ 5 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 18 N and 37 N
- Operating temperature range from -20 °C to +70 °C
- IP31 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Process control requiring high accuracy wire draw measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BTF19-Q1RM5062 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
