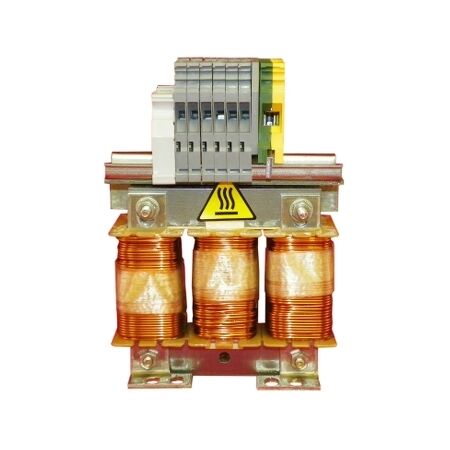

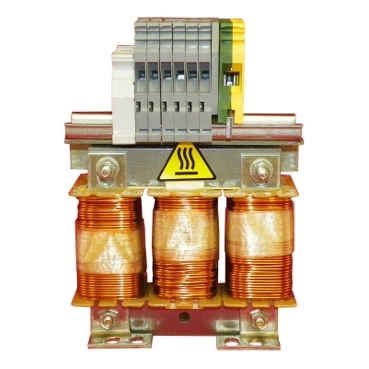

AC Chokes 0.3mH 100A | Effective Harmonic Filtering | Robust Construction | by Clipsal
AC Chokes 0.3mH 100A are designed for effective harmonic filtering in industrial applications. With a current rating of 100A, these chokes reduce electrical noise and voltage spikes, improving power quality and extending equipment lifespan. Ideal for motor drives and power factor correction systems, they ensure reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AC Chokes 0.3mH 100A | Effective Harmonic Filtering | Robust Construction | by Clipsal
Brand: Clipsal
SKU: SCHVW3A4556
Alternatively Known As: AC Line Reactor, AC Inductor, Power Choke, Harmonic Filter Choke, Clipsal SCHVW3A4556
Technical Specifications
- Inductance: 0.3mH
- Current Rating: 100A
- Frequency: 50/60Hz
- Voltage: 415V AC (typical for industrial applications)
- Core Material: Laminated steel
- Terminals: Heavy-duty screw terminals
- Cooling: Natural air cooled
- Mounting: Base plate for secure installation
- Dimensions (H x L x W): 220mm x 250mm x 180mm
- Weight: 8.5 kg
Key Features
- Inductance: 0.3mH for effective harmonic filtering
- Current rating: 100A for heavy-duty industrial applications
- Reduces electrical noise and voltage spikes
- Improves power quality and equipment lifespan
- Robust construction for reliable long-term operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and manufacturer guidelines.
Applications
- Industrial motor drives
- Variable speed drives (VSDs)
- Power factor correction systems
- Harmonic filtering in commercial and industrial electrical installations
- Protection of sensitive equipment from voltage spikes
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy losses by improving power factor
- Minimizes electrical noise, contributing to more efficient system operation
- Extends lifespan of connected equipment, reducing electronic waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal AC Choke 0.3mH 100A (SCHVW3A4556) is available for immediate purchase. Ideal for industrial and commercial power quality improvement applications.
