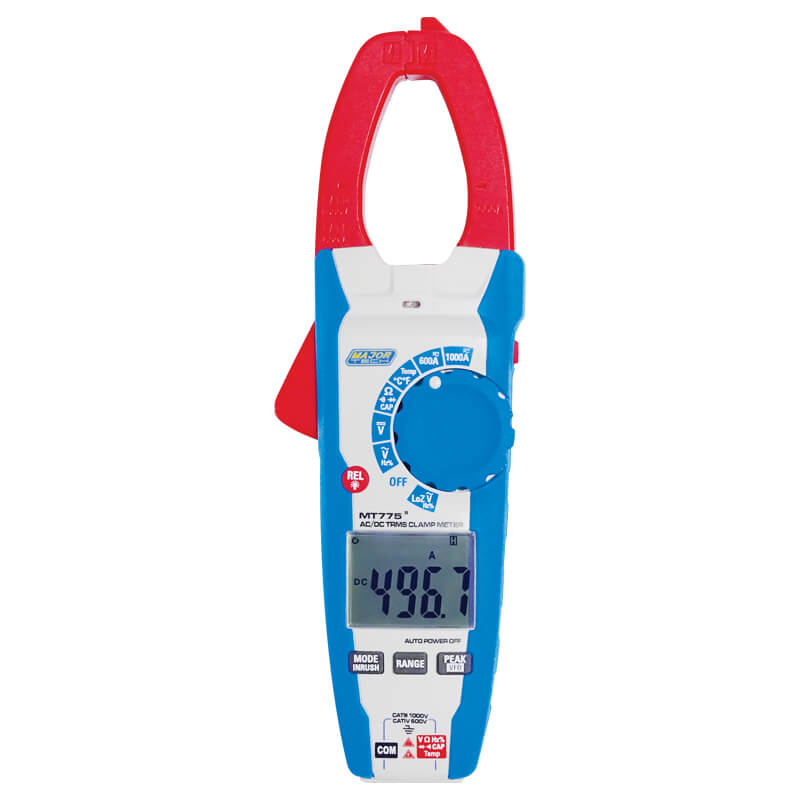

AC/DC Clamp Meter 1000A | True RMS | CAT IV 600V Safety | Backlit LCD by Majortech
The 1000A AC/DC clamp meter offers true RMS measurements with a CAT IV 600V safety rating, making it ideal for industrial electrical diagnostics and solar system maintenance. With a large backlit LCD display and multiple measurement functions, it ensures accurate readings in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AC/DC Clamp Meter 1000A | True RMS | CAT IV 600V Safety | Backlit LCD by Majortech
Brand: Majortech
SKU: MT775
Alternatively Known As: Digital Clamp Meter, True RMS Clamp Meter, AC/DC Clamp Meter, Electrical Clamp Meter, MT775 Clamp Meter
Technical Specifications
- AC Current Range: 0.1A to 1000A, Resolution: 10mA, Accuracy: ±(2.5% + 8 digits)
- DC Voltage Range: 0.1mV to 1000V, Resolution: 1mV, Accuracy: ±(1.5% + 2 digits)
- AC Voltage Range: 1mV to 1000V, Resolution: 1mV, Accuracy: ±(1.5% + 5 digits)
- Resistance Range: 0.1Ω to 60MΩ, Resolution: 0.1Ω, Accuracy: ±(1.5% + 2 digits)
- Frequency Range: 0.01Hz to 99.99kHz, Resolution: 0.01Hz, Accuracy: ±(1.2% + 5 digits)
- Capacitance Range: 0.01nF to 100mF, Resolution: 0.01nF, Accuracy: ±(3.0% + 5 digits)
- Temperature Range: -20°C to 1000°C, Resolution: 0.1°C, Accuracy: ±(3.0% + 5°C digits)
- Duty Cycle Range: 10% to 90%, Resolution: 0.001, Accuracy: ±(1.2% + 2 digits)
- Dimensions (H x L x W): 180mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- CAT IV 600V safety rating
- 6000 count True RMS measurement
- Large backlit LCD display for easy reading
- Measures AC/DC current up to 1000A
- Measures AC/DC voltage up to 1000V
- Temperature, frequency, capacitance, and resistance measurement
- 100ms Inrush current and Peak Voltage measurement
- VFD function for stable voltage measurement in Variable Frequency Drives
- Low Z range with low pass filter to eliminate ghost voltages
- Relative mode for DCA and capacitance zero and offset adjustment
- Non-contact voltage detection
- Data hold function
- Built-in flashlight for use in dimly lit areas
- Double moulded rubber housing for durability
Professional Installation Requirements
- Professional use recommended; no installation required but proper handling and safety precautions must be followed.
Applications
- Industrial electrical measurements
- Solar power system maintenance and troubleshooting
- General electrical diagnostics and testing
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Enables accurate electrical measurements to optimize energy usage and reduce waste
- Supports maintenance of solar power systems for sustainable energy generation
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech 1000A AC/DC TRMS Clamp Meter MT775 is available now for immediate purchase. Ideal for industrial, solar, and electrical diagnostic applications.
