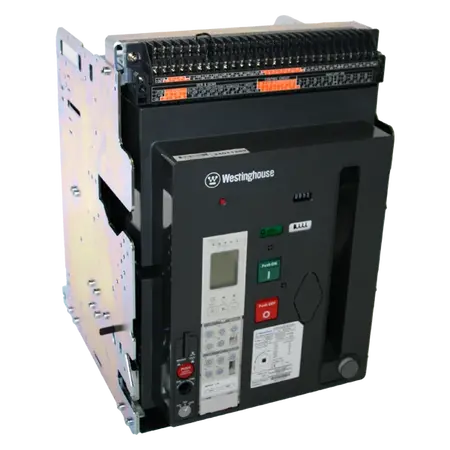

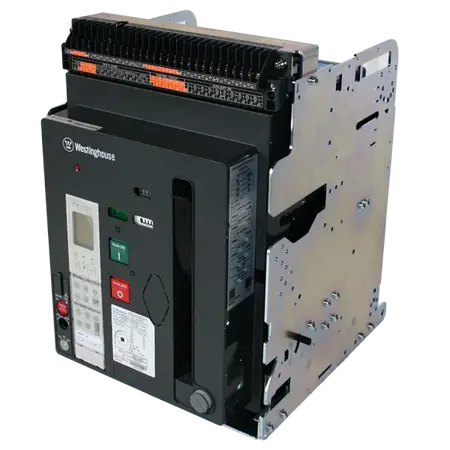

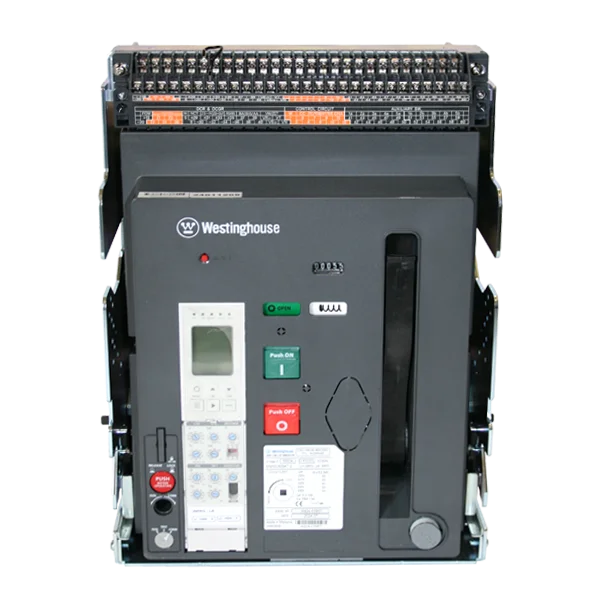

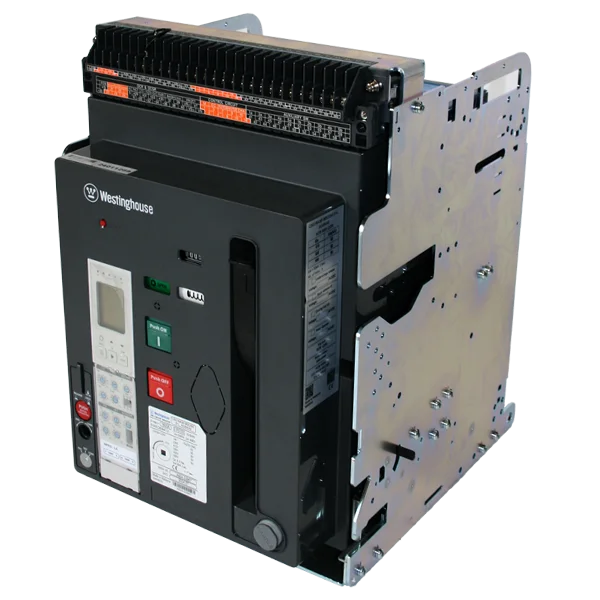

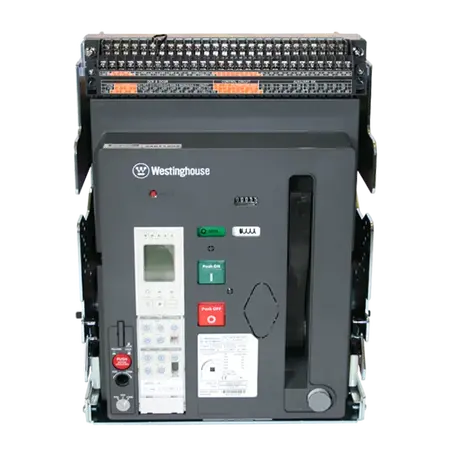

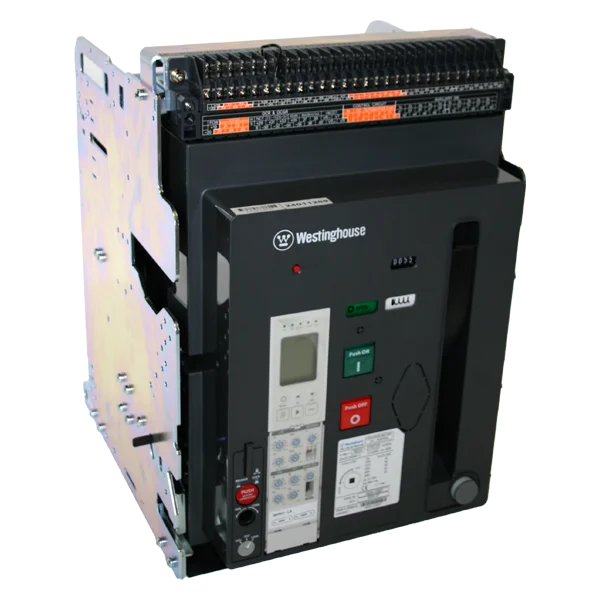

ACB 1600A 3P Withdrawable Circuit Breaker | 50kA Breaking Capacity | High Power | Eltech
ACB 1600A 3P withdrawable circuit breaker with a high breaking capacity of 50kA—ideal for industrial power distribution systems. Built for commercial electrical panels, it ensures enhanced safety and easy maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACB 1600A 3P 50kA Withdrawable
Brand: Eltech
SKU: CSG16A3B
Alternatively Known As: Air Circuit Breaker 1600A, 3 Pole Withdrawable Circuit Breaker, High Capacity Circuit Breaker
Technical Specifications
- Rated Current: 1600A
- Poles: 3P
- Breaking Capacity: 50kA
- Type: Withdrawable Air Circuit Breaker
- Dimensions (H x L x W): 800mm x 700mm x 600mm
- Weight: 150 kg
Key Features
- Withdrawable design for easy maintenance and replacement
- High breaking capacity of 50kA for enhanced safety
- Three-pole (3P) configuration suitable for three-phase systems
- Rated current of 1600A for high power applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with high current circuit breakers to ensure safety and compliance.
Applications
- Industrial power distribution systems
- Commercial electrical panels
- Large-scale electrical circuit protection
Standards & Compliance
- Complies with AS/NZS 60947 – Low-voltage switchgear and controlgear standards
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by protecting electrical systems from faults
Warranty Information
Standard manufacturer warranty of 12 months against defects.
Available Now
The Eltech ACB 1600A 3P 50kA Withdrawable circuit breaker is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
