ACB Mounting Rail for Air Circuit Breakers | Durable Powder-Coated Steel | RAL9010 White by Eltech
ACB mounting rail designed for air circuit breakers, featuring durable powder-coated steel construction and a RAL9010 white finish. Ideal for power distribution switchboard assembly and modular installations, it ensures reliable support and aesthetic appeal.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

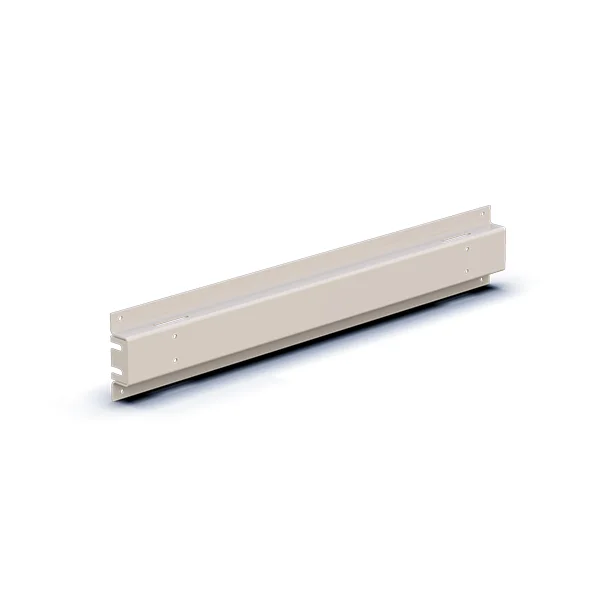

Product Name/Title: ACB Mounting Rail 400 x 50 RAL9010 White
Brand: Eltech
SKU: AMR045000AEKC
Alternatively Known As: ACB Mounting Rail, Air Circuit Breaker Mounting Rail, Switchboard Mounting Rail
Technical Specifications
- Material: Powder-coated steel
- Finish: RAL9010 White
- Length: 400 mm
- Width: 50 mm
- Designed for mounting Air Circuit Breakers (ACB)
- Dimensions (H x L x W): 20mm x 400mm x 50mm
- Weight: 1.5 kg
Key Features
- Durable mounting rail designed for ACB (Air Circuit Breaker) support
- Finished in RAL9010 white for corrosion resistance and aesthetic appeal
- Compatible with KIKBLOX Series modular switchboard systems
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with modular switchboard systems to ensure compliance with electrical safety standards.
Applications
- Power distribution switchboard assembly
- Modular switchboard system installations
- Electrical panel mounting and support
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Powder-coated finish enhances durability, reducing the need for frequent replacements
- Supports modular systems that facilitate easier upgrades and recycling
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech ACB Mounting Rail 400 x 50 RAL9010 White is available now for immediate purchase. Ideal for power distribution and modular switchboard system installations.
