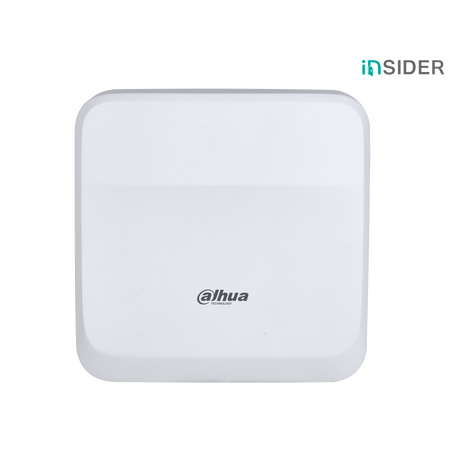

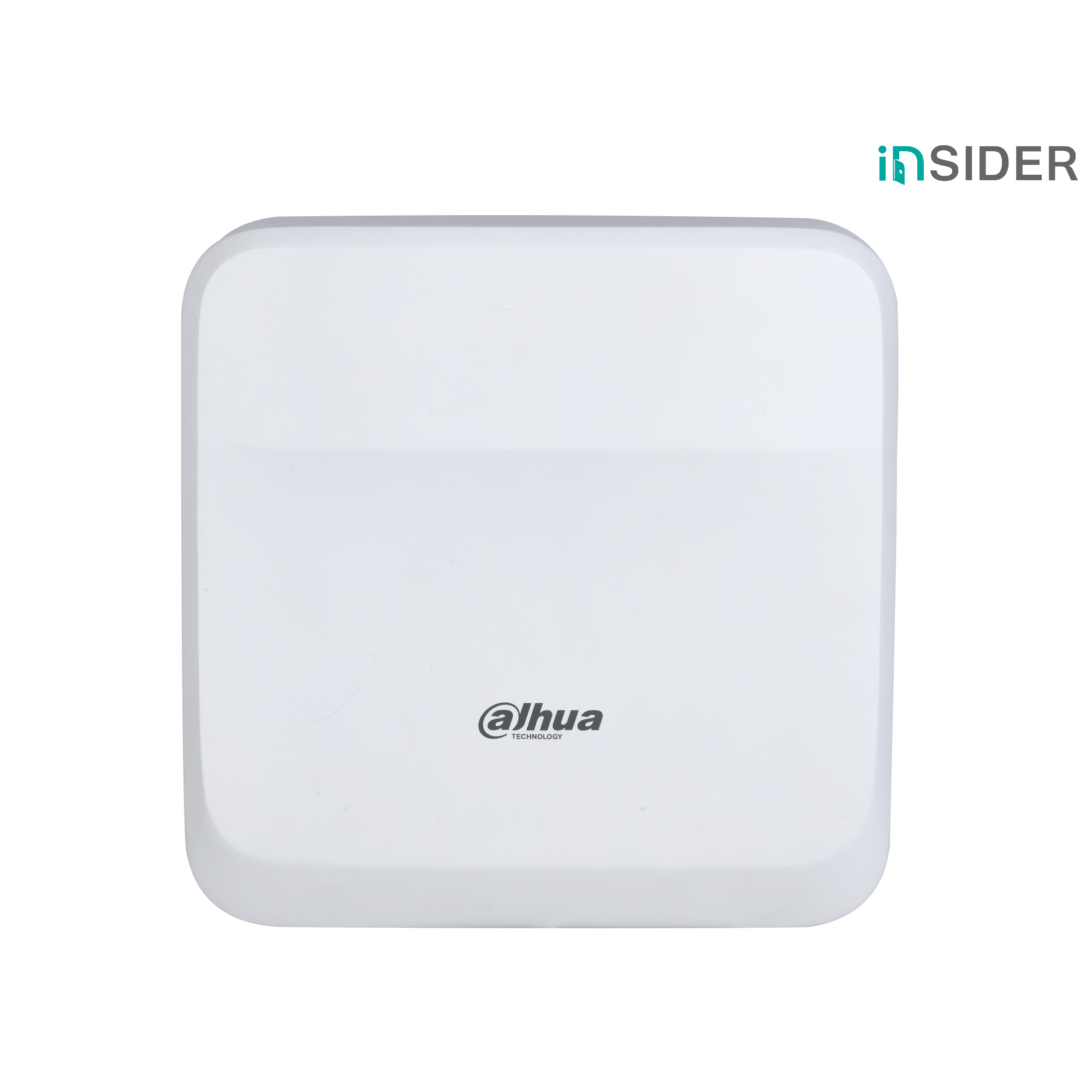

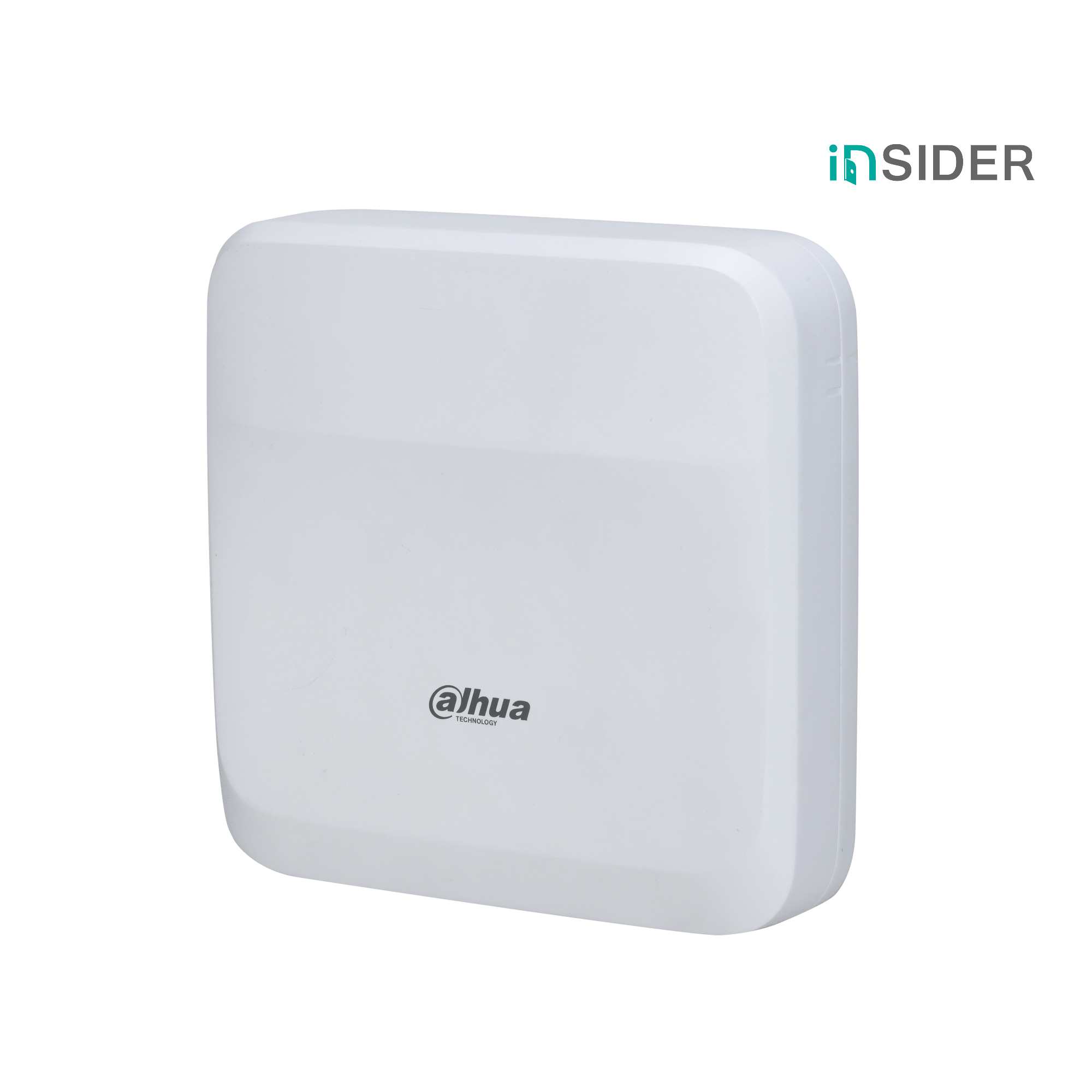

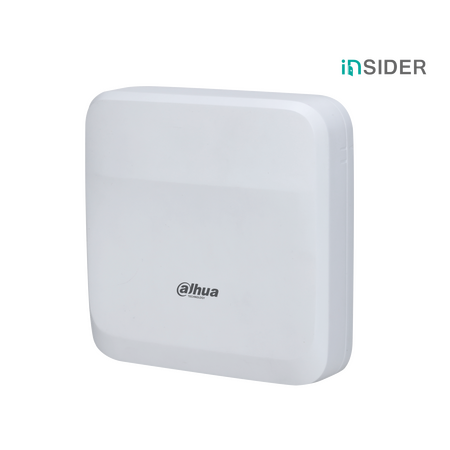

Access Control Hub | 1000 Users & 3000 Fingerprints | TCP/IP & PoE by Dahua Technology
Access control hub with a capacity for 1000 users and 3000 fingerprints—ideal for commercial security systems. Built for efficient access management, featuring TCP/IP connectivity and PoE support for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Access Control Hub | 1000 Users & 3000 Fingerprints | TCP/IP & PoE by Dahua Technology
Brand: Dahua Technology
SKU: ASC3202B
Alternatively Known As: Dahua Access Controller ASC3202B, Dahua Access Control Hub, ASC3202B Controller
Technical Specifications
- User Capacity: 1000 users (main control mode)
- Fingerprint Capacity: 3000 fingerprints
- Bluetooth Card Capacity: 5000 cards
- Record Storage: 300,000 records
- Card Reader Protocols: Wiegand, RS-485
- Network: TCP/IP with PoE support
- Lock Power Output: 12 VDC, max 1000 mA
- Control Modes: Main and sub control
- Advanced Functions: First-person unlock, multi-person unlock, global anti-passback, multi-door interlock, global external alarm
- Data Retention: Yes, retains data when powered off
- Dimensions (H x L x W): 50mm x 200mm x 250mm
- Weight: 1.5 kg
Key Features
- Built-in Web server with main and sub control modes
- Main control mode manages up to 19 sub controllers
- Supports 1000 users, 3000 fingerprints, 5000 Bluetooth cards, and 300,000 records
- Compatible with Wiegand and RS-485 card reader protocols
- Supports TCP/IP connection and standard PoE
- 12 VDC output power supply with max 1000 mA current for locks
- Configurable hardware I/O ports and exportable configuration diagrams
- Data retention during power off
- Role management and advanced access control functions including first-person unlock, multi-person unlock, global anti-passback, multi-door interlock, and external alarm support
Professional Installation Requirements
- Installation by a certified security systems technician or qualified electrician is recommended to ensure proper network integration and power supply setup.
Applications
- Access control management for commercial buildings
- Security systems for offices and industrial facilities
- Integration with multiple access points in large premises
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports PoE reducing the need for additional power cabling and lowering energy consumption
- Efficient data management reduces electronic waste by minimizing hardware redundancy
Warranty Information
3 years warranty covering manufacturing defects and hardware failures.
Available Now
The Dahua ASC3202B Access Control Hub is available now for immediate purchase. Ideal for commercial and industrial access control applications.
